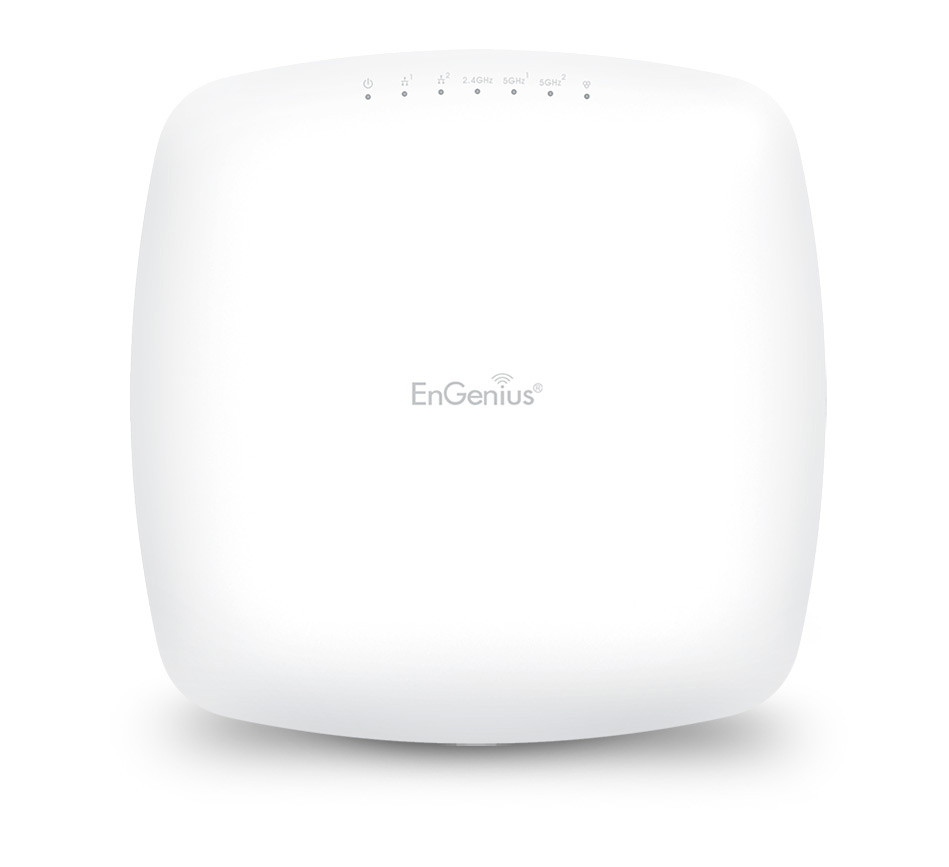

EnGenius EWS385AP
Wi-Fi 5 Wave 2 Managed Indoor Wireless Access Point

Ultra-Fast 11ac Wave 2 Speeds

EnGenius’ 11ac Wave 2 Access Points deliver the highest available speeds for Wi-Fi devices reaching 2.5 Gbps. Beamforming technology focuses signals directly to client devices, providing optimal, reliable reception even in densely crowded environments. Four spatial streams and dual-concurrent MU-MIMO radio operation sends beams to multiple users simultaneously, creating increased network capacity.

Flexibility in Deployment

Neutron’s versatile line of high-performance, managed, indoor ceiling- and wall-mount access points consist of Tri-band and Dual Band high capacity 4x4, 3x3 and 2x2 Wave 2 &1 versions. Wall plate models serve as all-in-one communication “hubs” for in-room wireless connectivity. Configure APs individually as stand-alone units, locally manage up to 50 per Neutron Switch or use ezMaster software to control 1,000+ APs.

Optimize Connectivity With Wireless Mesh On Selected Models

Utilize mesh access point mode on select Neutron APs for retrofit or new install applications where wire runs are not possible. Mesh’s smart sensing technology adds devices quickly, optimizes routes between APs, and automatically self-heals the network in the event an AP should ever lose connection.

Protected by Advanced Encryption

With Neutron EWS APs, your network is protected from attacks at multiple levels through advanced wireless encryption standards such as Wi-Fi Protected Access Encryption and authentication. Network threats are quickly detected and avoided through rogue AP detection, email alerts and real-time wireless invasion monitoring, allowing for immediate action to divert network hacks and other security threats.

Secure Guest Networks

Organizations that offer Internet access to patrons or visitors— notably hotels, retail shops and restaurants—will appreciate Neutron’s guest network capabilities. Establish a secure guest network that blocks access to main corporate computers. Create separate Virtual LANs for increased security, network reliability and bandwidth conservation.

Power-over-Ethernet Convenience

All Neutron EWS Access Points feature at least one Gigabit PoE port, enabling placement in discreet locations where power outlets are scarce or unavailable. Power the APs through a connected Ethernet cable directly to a Neutron Managed Gigabit PoE+ and SFPt Switch or with a PoE adapter up to 328 feet from the power source.

Simplified Deployment & Provisioning

In combination with Neutron Switches and ezMaster Network Management Software, Neutron EWS APs are automatically discovered and provisioned. One-click individual or bulk configurations and upgrades save time. In addition, these access points are quickly and easily deployed and operated by users with limited networking experience.

Manage Up to 50 APs with Neutron Switches

In small settings, any Neutron Managed Switch can act as a wireless controller capable of managing up to 50 Neutron EWS Access Points. IT administrators have access to all connected Neutron devices and a full array of Layer 2 management tools. Choose between 8, 24, and 48-Port PoE+ switch models with flexible deployment and management options.

Frequency 2.4 and 5 GHz Frequency Bands Standards IEEE 802.11a/b/g/n/ac Radio I 11b/g/n: 2.412~2.484 GHz Radio II (Dual-Band models only) 11a/n/ac: 5.18-5.24 & 5.26-5.32 & 5.5-5.7 & 5.745- 5.825 GHz Radio III 11a/n/ac: 5150~5250, 5250~5350 GHz Data Rates Up to 400 Mbps on 2.4 GHz; Up to 867 Mbps on 5.4 GHz, Up to 867 GHz on 5.6 GHz Power Consumption Up to 12W Antennas 2 x 5 dBi 2.4 GHz Internal
2 x 5 dBi 5 GHz Internal
2 x 5 dBi 5 GHz Internal Physical Interface 2 x RJ45 10/100/1000 Mbps Ports
- LAN1: 802.3aF PoE Input
- LAN2: Pass-Through Port
1 x Reset Button
1 x DC Power Connector
1 x Kensington Lock Slot LED Indicators1 x Power
2 x LAN
1 x 2.4 GHz
2 x 5 GHz
1 x Mesh Power Requirements Power Supply: 100 to 240 VDC ± 10%, 50/60 Hz (depends on different countries)
Active Ethernet (Power-over-Ethernet, IEEE 802.3at/af) Modulations OFDM: BPSK, QPSK, 26-OAM (EWS300AP) 16-QAM, 64-QAM, 256-QAM (EWS371AP/EWS370AP/ EWS550AP/EWS355AP/EWS330AP) DBPSK, DQPSK, CCK Radio Technologies 802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogorial Frequency Division
Multiflexing (OFDM) Operating Channels 2.4 GHz US/Canada 1-11
5 GHz (Dual-Band models only): Country dependent for the following ranges: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165 Operation Modes Access Point
Mesh Multiple BSSID Supports up to 8 unique SSIDs for both 2.4 GHz & 5 GHz SSID-to-VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging Spanning Tree Supports 802.1d Spanning Tree Protocol Wireless Wireless Mode: 11a/11b/11g/11n/11ac
Channel Bandwidth (Auto, 20 MHz, 40 MHz, 80 MHz) Tx Beamforming (Tx BF) SU-MIMO (2) Spatial Streams to 1267 Mbps to single client MU-MIMO (2) Spatial Stream to 1167 Mbps to (2) Clients MU-MIMO Capable Devices Simultaneously

Stand-Alone Management Features Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Captive Network (Guest Network)
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
Band Steering per SSID
Traffic Shaping
VLANs for Access Point – Multiple SSIDs
MAC Address Filtering
Backup/Restore Settings
Power Save Mode
Auto Reboot
E-Mail Alert
Site Survey
Save Configuration as Default
Background Scanning
Client Fingerprinting
Multicast to Unicast
Captive Portal
Wi-Fi Scheduler
RADIUS Accounting Wireless Management Features (with ezMaster & Neutron Switch) Access Point Auto Discovery and Provisioning
Access Point Auto IP Assignment
Access Point Group Management
Remote Access Point Rebooting
Access Point Device Name Editing
Access Point Radio Settings
Band Steering per SSID
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i & 802.11x)
PMK Caching (802.11i)
RSSI Threshold
Access Point Client Limiting
Client Fingerprinting
Wireless Security (WEP, WPA/WPA2 Enterprise,
WPA/WPA2 PSK)
AP VLAN Management
VLANs for Access Point- Multiple SSIDs
Secured (Guest Network)
Captive Portal
Access Point Status Monitoring
Rogue AP Detection
Wireless Client Monitoring
Background Scanning
Email Alert
Wireless Traffic & Usage Statistics
Real-Time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
Muti-Tenant
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler Tx Power Control Adjust Transmit Power by dBm Configuration Web-based Configuration (http) Firmware Upgrade Via Web Browser

Administrator Settings Administrator Username and Password Change MIB MIB I, MIB II (RFC1213) and private MIB System Monitoring Status Statistic and Event Log SNMP V1/V2c/V3 Reset Settings Reboot (press and hold for 2 seconds). Reset to Factory Default (press and hold for 10 seconds) Auto-Channel Selection Automatically Selecting Least Conjested Channel Bandwidth Measurement IP Range and Bandwidth Management Schedule Reboot Reboot Access Point by Minute, Hour, Day, or Week Backup and Restore Save and Restore Settings via Web Interface CLI Supports Command Line Interface Diagnosis IP Pinging Statistics Log SysLog and Local Log Support LED Control On/Off AP Detection Scanning for Available EnGenius APs Wireless Security WPA2 Personal (WPA-PSK using AES)
WPA2 Enterprise (WPA-EAP using AES)
802.1X RADIUS Authenticator: MD5/TLS/TTLS, PEAP
SSID Broadcast Enable/Disable
MAC Address Filtering, Up to 50 Entries
L2 Isolation QoS (Quality of Service) IEEE 802.11e
WMM (Wireless Multimedia) Temperature Range Operating: 32ºF to 104ºF (0ºC to 40ºC)
Storage Temperature: -40ºF to 176ºF (-40ºC to 80ºC) Humidity (non-condensing) Operating: 90% or less
Operating: 90% or less Physical Security Kensington Security Slot (N/A for EWS510AP) Device Dimensions and Weights Weight: 1.2 lbs. (0.54 kg)
Length: 7.87” (200 mm)
Width: 7.87” (200 mm)
Height: 1.6” (40.64 mm) Package Contents T-Rail Mounting Kits
Ceiling and Wall Mount Screw Kits
Mounting Brackets
Quick Installation Guide Certifications FCC, IC, CE Warranty 1-Year Standard
