EnGenius EWS7928FP-FIT
EnGenius Fit 410W PoE+ 24 Port Gigabit Switch
More pricing below, click here!
Overview:
Layer 2 plus switch comes with 4 SFP uplink ports and multiple management options
The EnGenius Fit EWS7928FP-FIT Managed Switch is a PoE+ Layer 2 plus 24-port Gigabit switch with a 410W PoE budget and 4 SFP uplink ports. It offers multiple management options for small business network environments, allowing you to select the cloud or on-premises management option that best suits your needs. With its business-class features, the EnGenius Fit managed switch provides secure, reliable, and high-performance switching while reducing capital and operating expenses for cost-conscious small businesses.
Product Highlights
- 24 10/100/1000 Base-T GbE Ports
- Full-featured Layer 2 plus Switching
- 802.3at/af PoE+ ready on all ports with 410W PoE budget
- 56 Gbps switching capacity
- Setup in minutes with App-based step by step instructions
- Quick-scan device register, remote monitoring and troubleshooting
- Real-time system metrics, analytics and remote configurations
- Hybrid switch supports multiple management options
- From anywhere cloud visibility and control
- Monitor a site or multiple sites with no recurring cost or licensing fee
- Security - access control list/port security; 802.1x authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
Manage your network onsite or on-the-go through our FitXpress cloud-based mobile app or web portal. Additionally, FitController gives you greater control of your network using plug-n-play hardware with embedded network management software. Admins can easily view detailed analytics from a single pane of glass as well as monitor and troubleshoot issues instantly.
Specifications:
EnGenius EWS7928FP-FIT Specifications | |
---|---|
Port Standards | 802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 10000Base-T Ethernet 802.3x Full-Duplex Flow Control |
Network Ports | 24 10/100/1000 Mbps Ports 4 10/100/1000 Mbps SFP Ports |
PoE Capabile Ports | 1-24 (802.3af/at) All Gigabit Ethernet ports can output up to 30 Watts |
Total PoE Budget | 240 W |
Flash Memory | 32MB |
Packet Buffer Memory | 512 KB |
Address Database Size | 8,000 MAC Addresses |

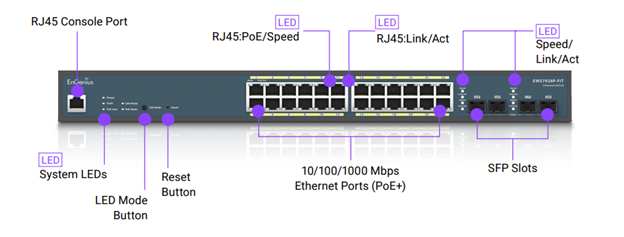

Physical Interface | |
LED Indicators | Reset Button Desktop/Wall Mount |
LED Indicators | Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED |
Ports | Link/Activity/Speed (per Ethernet port) |
SFP Ports | Link/Act LED |
Software Features | |
Multiple IP Interface | 20 IPv6 address |
ARP Table | Max. 192 ARP entries |
Static ARP | Static 192 ARP entries |
IPv4 Static Route | Max. 59 entries |
IPv6 Static Route | Max. 5 entries |
>Software Features (L2 Features) | |
MAC Address Table | 8K |
Jumbo Frame | 9K |
Multicast Group | Max 256 groups |
Port Security | Max 256 groups |
SSL Certificate | Certificate/Key Update |
L2 Features | 802.1Q VLAN tagging VLAN Table Port-based VLAN Voice VLAN GARP VLAN Registration Protocol 802.1d Spanning tree:
Loopback Detection |
L3 Feature | IGMP Snooping MLD Snooping DHCP Snooping DHCP Relay Static Route |
Port Settings | Multicast Filtering EEE Port Isolation Port Mirror Jumbo Frames LLDP |
Security | 802. 1X Radius Authentication Protocol Web:
Radius Server DoS Prevention |
System Settings | IP Settings:
ARP Statistics Simple Network Time Protocol (SNTP) |
Analyze | Log:
|
Diagnostice | Cable Diagnostics Ping Test IPv6 Ping Test Trace Route Connection Diagnostic |
Access Control List (ACL) | MAC Based ACL MAC ACE IPv4 ACL IPv4 ACE IPv6 ACL IPv6 ACE ACL (Port) Binding |
SNMP) | SNMP v1/v2c/v3 Support |
RMON | RMON 1,2,3,9 |
QoS | CoS Mapping DSCP Mapping Port CoS Bandwidth Control Storm control Advanced Mode: Class Mapping |
MIB/RFC Standards | RFC1213 RFC1493 RFC1757 RFC2674 RFC2863 |
Environmental & Physical | |
Temperature Range | Operating: 32 to 104°F/0 to 40°C Storage: -40 to 158°F/-40 to 70 °C |
Humidity (Non-Condensing) | 5% - 95% |
Package Contents | 1x Fit L2+ Managed 24 Ports EWS7928P-FIT PoE+ Gigabit Switch 1 x Power Cord 1 x RJ45 Console Cable 1 x Rack Mount Kit Quick Start Guide QR Code FitXpress Cloud-Based Mobile App QR Code |
Device Dimensions & Weights | |
EWS7928P-FIT Device | Weight: 7.82 Ibs Width: 17.32” (440 mm) Length: 10.23” (260 mm) Height: 1.73” (44 mm) |
Packaging | Weight:10.13 lbs Width: 20.95” (532mm) Length:13.63” (346mm) Height: 3.97” (101mm) |
Warranty | 1 Year |
Documentation:
Download the EnGenius EWS7928FP-FIT Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
