EnGenius EWS357AP
Greater capacities. Stronger connections. Reliable management options.
List Price:
Our Price: $105.40
More pricing below, click here!
Overview:
EnGenius Neutron EWS357AP 802.11ax 2x2 Managed Indoor Wireless Access Point features 802.11ax technology, which deepens and expands the capabilities of Wi-Fi and utilizes EnGenius enterprise-level management and AP features. The sleek, low-profile 11ax AP is loaded with new hardware components to run more efficiently and consume less power for maximum theoretical speeds of 574 Mbps (2.4 GHz frequency) and 1,200 Mbps (5 GHz frequency). To give your network elevated security, WPA3 and WPA2-AES make connecting client and IoT devices more secure and easier.
Features & Benefits
- High-capacity & high-efficient Wi-Fi (Wi-Fi 6)
- Uplink & downlink of OFDMA for more efficient channel use
- 1024 QAM for 25% increase in throughput
- Target Wake Time (TWT) for power-saving wake times
- BSS Coloring for tagging packets with “color” to differentiate data
- Spatial reuse for simultaneous tranmissions on same channel
- Uplink & downlink of MU-MIMO for optimal signal & reception reliability
- Operate as a stand-alone AP or centrally manage via switch
- Remotely manage 1-1,000+ APs via ezMaster
- GigE PoE-compliant ports expand deployment & power options
- Low-profile designs for ceiling or wall mount
Features:
Next-Generation Wi-Fi
The Neutron Series AX Access Points take advantage of 11ax technology, which enables more efficient channel use, reduces latency between AP and client devices, and provides ground-breaking features, such as uplink and downlink of OFDMA, Target Wake Time, uplink and downlink of MU-MIMO, BSS Coloring, spatial reuse, and preamble updates.
- OFDMA (in both uplink and downlink): enables more efficient channel use, reduces latency between AP and client devices, and provides backward-compatibility with 2.4 GHz and 5 GHz
- 1024 QAM: boosts throughput by 25% and provides greater reliability in short distances
- BSS coloring: tags packets with a “color” to differentiate between adjacent basic service sets to potentially help minimize co-channel interference (CCI)
- Spatial reuse: identifies the different “colors” via BSS coloring and simultaneously transmits on the same channel, which reduces waiting time and lessens contention; determines whether the transmission will be deferred or reused on the channel
- Uplink & downlink of MU-MIMO: supports up to eight client devices and provides greater network efficiency, focuses radio energy on specific users, and ensures optimal signal and reception reliability
- Target Wake Time (TWT): reduces power consumption, schedules wake times, and extends client battery life of mobile and IoT devices
- Longer OFDM symbols: enables shorter wait times between data transmissions and tolerates more noise, which allows greater coverage
Flexibility in Deployment
Neutron’s new 11ax line of high-performance, managed, indoor ceiling- and wall-mount access points consists of 2x2 11ax dual-band for general use and a 4x4 dual-band 11ax version for high-capacity use that are ready to immediately deploy. Configure APs individually as stand-alone units, locally manage up to 50 per Neutron switch or use ezMaster software to control 1,000+ APs.
Optimize Connectivity With Wireless Mesh on Selected Models
Utilize mesh access point mode on Neutron APs for retrofit or new install applications where wire runs are not possible. Mesh’s smart sensing technology adds devices quickly, optimizes routes between APs, and automatically self-heals the network in the event an AP should ever lose connection.
The Latest in Wi-Fi Security
With the Neutron 11ax (WiFi 6) access points, your network is protected by WPA3, which delivers next-generation wireless security by making connecting client and IoT devices more secure and easier, as well as WPA2-AES. The high level of security expected and demanded by enterprises now protects SMBs as well.
Secure Guest Networks
Organizations that offer Internet access to patrons or visitors—notably hotels, retail shops and restaurants— will appreciate Neutron’s guest network capabilities. Establish a secure guest network that blocks access to main corporate computers. Create separate Virtual LANs for increased security, network reliability, and bandwidth conservation.
Power-over-Ethernet Convenience
All Neutron 11ax access points support 1 and 2.5 Gigabit PoE ports, enabling placement in discreet locations where power outlets are scarce or unavailable. Power the access points through a connected Ethernet cable directly to a Neutron Managed Gigabit PoE+ switch or with a PoE adapter up to 328 feet from the power source.
Simplified Deployment & Provisioning
In combination with Neutron Switches and ezMaster Network Management Software, Neutron 11ax APs are automatically discovered and provisioned. One-click individual or bulk configurations and upgrades save time. In addition, these access points are quickly and easily deployed and operated by users with limited networking experience.
Manage Up to 50 APs with Neutron Switches
In small settings, any Neutron Managed Switch can act as a wireless controller capable of managing up to 50 Neutron EWS Access Points. IT administrators have access to all connected Neutron devices and a full array of Layer 2 management tools. Choose between 8-, 24-, and 48-Port PoE+ switch models with flexible deployment and management options.
Image Gallery:

Front

Front PCB

Front Angle

Back Angle

Sides

Chip
Specifications:
EnGenius EWS357AP Specifications | |
---|---|
Standards | 802.11a/b/g/n/ac/ax |
Frequency | 2.4 GHz & 5 GHz |
2.4 GHz Max. Data Rate | 574 Mbps |
5 GHz Max. Data Rate | 1,200Mbps |
Radio Chains/Streams | 2 X 2:2 |
RF Output Power (2.4 GHz) | 20 dBm |
RF Output Power (5 GHz) | 20 dBm |
Ethernet Ports | 1 x Port (PoE+) 1 Gigabit Ethernet |
Power-over-Ethernet | 802.3af |
Power Consumption (Peak) | 12.5W |

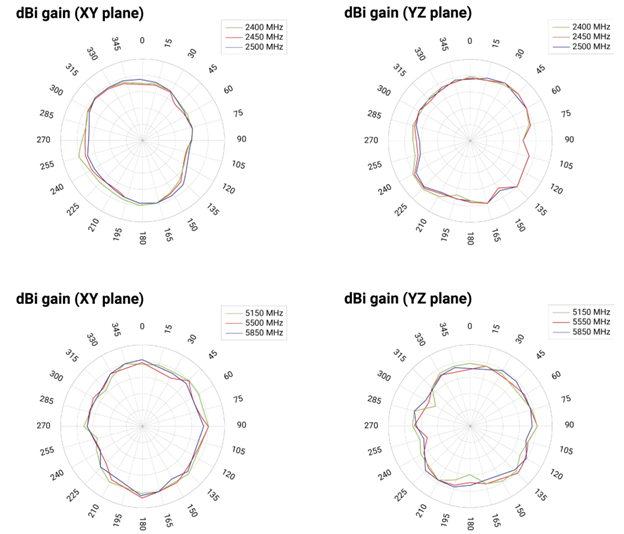

Integrated Antenna | 2 x 3 dBi @ 2.4 GHz 2 x 3 dBi @ 5 GHz |
Technical Specifications | |
Standards | IEEE 802.11ax on 2.4 GHz IEEE 802.11ax on 5 GHz Backward compatible with 802.11b/g/n/ac |
Processor | Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.0GHz |
Antenna | 2 x 2.4 GHz: 3 dBi 2 x 5 GHz: 3 dBi Integrated Omni-Directional Antenna |
Physical Interface | 1 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Port 1x DC Jack 1 x Reset Button |
LED Indicators | 1 x Power 1 x LAN 1 x 2.4 GHz 1 x 5 GHz |
Power Source | Power-over-Ethernet: 802.3at Input 12VDC /1.25A Power Adapter |
Maximum Power Consumption | 12.5W |
Wireless & Radio Specifications Operating Frequency | Dual-Radio Concurrent 2.4 GHz & 5 GHz |
Operation Modes | Managed mode: AP, AP Mesh, Mesh Stand alone: AP, AP Mesh, Mesh |
Frequency Radio | 2.4 GHz: 2400 MHz ~ 2835 MHz 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
Transmit Power | Up to 20 dBm on 2.4 GHz Up to 20 dBm on 5 GHz |
Radio Chains/Spatial Stream | 2x2 |
SU-MIMO | Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SU-MIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under the both 2.4G Hz and 5GHz radio |
MU-MIMO | Two (2) spatial streams Multiple (MU)-MIMO for up to
1200 Mbps wireless data rate to transmit to one (1)
two streams MU-MIMO 11ax capable wireless client
devices under 5GHz simultaneously. Two (2) Multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously |
Supported Data Rates (Mbps) | 802.11ax: 2.4 GHz: 9 to 287 (MCS0 to MCS11, NSS = 1 to 2) 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
Supported Radio Technologies | 802.11ax: Orthogonal Frequency Division Multiple
Access (OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) |
Channelization | 802.11ax supports high efficiency (HE) —HE20/HE40/HE80 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
Supported Modulation | 2.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM,
1024-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: BPSK, QPSK, CCK |
Management Multiple BSSID | 8 SSIDs for both 2.4GHz and 5GHz radios |
VLAN Tagging | Supports 802.1q SSID-to-VLAN Tagging Cross-Band VLAN Pass-Through Management VLAN |
Spanning Tree | Supports 802.1d Spanning Tree Protocol |
QoS (Quality of Service) | Complaint With IEEE 802.11e Standard WMM |
SNMP | v1, v2c, v3 |
MIB | I/II, Private MIB |
Management Features Deployment Options | Stand-Alone (Individually Managed) Managed Mode (with Neutron Series Switch/ezMaster) |
Stand-Alone Management Features | Auto Channel Selection Auto Transmit Power Wireless STA (Client) Connected List Auto Channel Selection Captive Portal Per SSID Fast Roaming (802.11k & 802.11r) Pre-Authentication (802.11i, 802.11x) PMK Caching (802.11i) Band Steering per SSID Traffic Shaping per SSID/per user VLAN Per SSID Backup/Restore Settings Auto Reboot E-Mail Alert Site Survey Save Configuration as Users’ Default |
Wireless Management Features (With ezMaster & Neutron Switch) | AP Auto Discovery & Provisioning AP Auto IP Assignment AP Group Management Auto AP Rebooting AP Device Name Editing Band Steering Per SSID Traffic Shaping Per SSID and Per User Fast Roaming (802.11k & 802.11r) Pre-Authentication (802.11i, 802.11x) PMK Caching (802.11i) AP Client Limiting Client Fingerprinting AP VLAN Management VLAN Per SSID Captive Portal Per SSID Multi-Tenant Account AP Traffic Log Access Point Status Monitoring Wireless Client Monitoring Email Alert Wireless Traffic & Usage Statistics Real-Time Throughput Monitoring Visual Topology View Floor Plan View Map View Wireless Coverage Display Secure Control Messaging (SSL Certificate) Local MAC Address Database Remote MAC Address Database (RADIUS) Unified Configuration Import/Export Bulk Firmware Upgrade Capability One-Click Update Intelligent Diagnostics Kick/Ban Clients Wi-Fi Scheduler Schedule reboot |
Wireless Security | WPA3 WPA2 Enterprise (AES) Hide SSID in Beacons MAC Address Filtering, Up to 32 MACs per SSID Wireless STA (Client) Connected List SSH Tunnel Client Isolation |
Environment & Physical Temperature Range | Operating: 32ºF~104ºF (0 ºC~40 ºC) Storage: -22 ºF~176 ºF (-30 ºC~80 ºC) |
Humidity (non-condensing) | Operating: 90% or less Storage: 90% or less |
Dimensions & Weights EWS377AP Device | Weight: TBD Length: 6.30” (160 mm) Width: 6.30” (160 mm) Height: 1.31” (33.2 mm) |
Packaging | Weight: 1.28 lbs (0.58Kg) Length: 8.07” (205 mm) Width: 8.07” (205 mm) Height: 3.27” (83 mm) |
Master Carton | Weight: 15 lbs (6.8Kg) Length: 17.71” (450 mm) Width: 16.93” (430 mm) Height: 9.05” (230 mm) No. of boxes per carton: 10 units |
Package Contents | Dual-Band AX1800 Indoor Access Point 1 – Ceiling Mount Base (9/16” Trail) 1 – Ceiling Mount Base (15/16” Trail) 1 – Ceiling and Wall Mount Screw Kits 1 – Quick Installation Guide |
Certifications | FCC, CE |
Warranty | 1 Year |
Documentation:
Download the EnGenius Neutron Series Indoor Managed Access Points Datasheet (PDF).
