EnGenius ECS1528T
Cloud Managed 24-Port 13” Compact Gigabit Switch with 4 SFP+ Ports

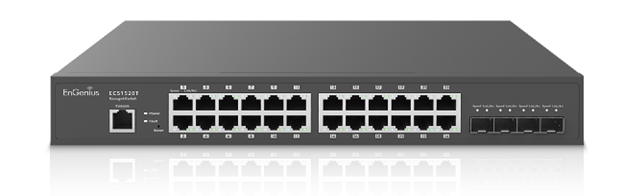

EnGenius ECS1528T Product Image


EnGenius Products
EnGenius ECS1528T
EnGenius ECS1528T
Cloud Managed 24-Port 13” Compact Gigabit Switch with 4 SFP+ Ports
#ECS1528T
Get a Quote!

More pricing below, click here!

Overview:

Multiple management options for large businesses to easily configure, monitor, and manage

The EnGenius Cloud ECS1528T 24-port 13” 1U rackmount compact gigabit layer 2+ switch with 4 SFP+ uplink ports and multiple management options for large businesses to easily configure, monitor, and manage. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget.

  • Full-featured layer 2+ switching
  • 24 10/100/1000 Base-T GbE Ports
  • 13” 1U rackmount compact design
  • 128 Gbps Switching capacity
  • 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
  • Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
  • Quick-Scan Device Register, Remote Monitoring and Troubleshooting
  • Advanced View Displays Network Topology with Devices and Relationships
  • Hybrid Switch Supports Multiple Management Options
  • Security - Access Control List/Port Security; 802.1X & RADIUS Authentication
  • IGMP & MLD snooping provides advanced multicast filtering & network efficiency
  • 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing
  • Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
  • Voice VLAN for fast, reliable deployment of VoIP services

Image Gallery:

Front-Top

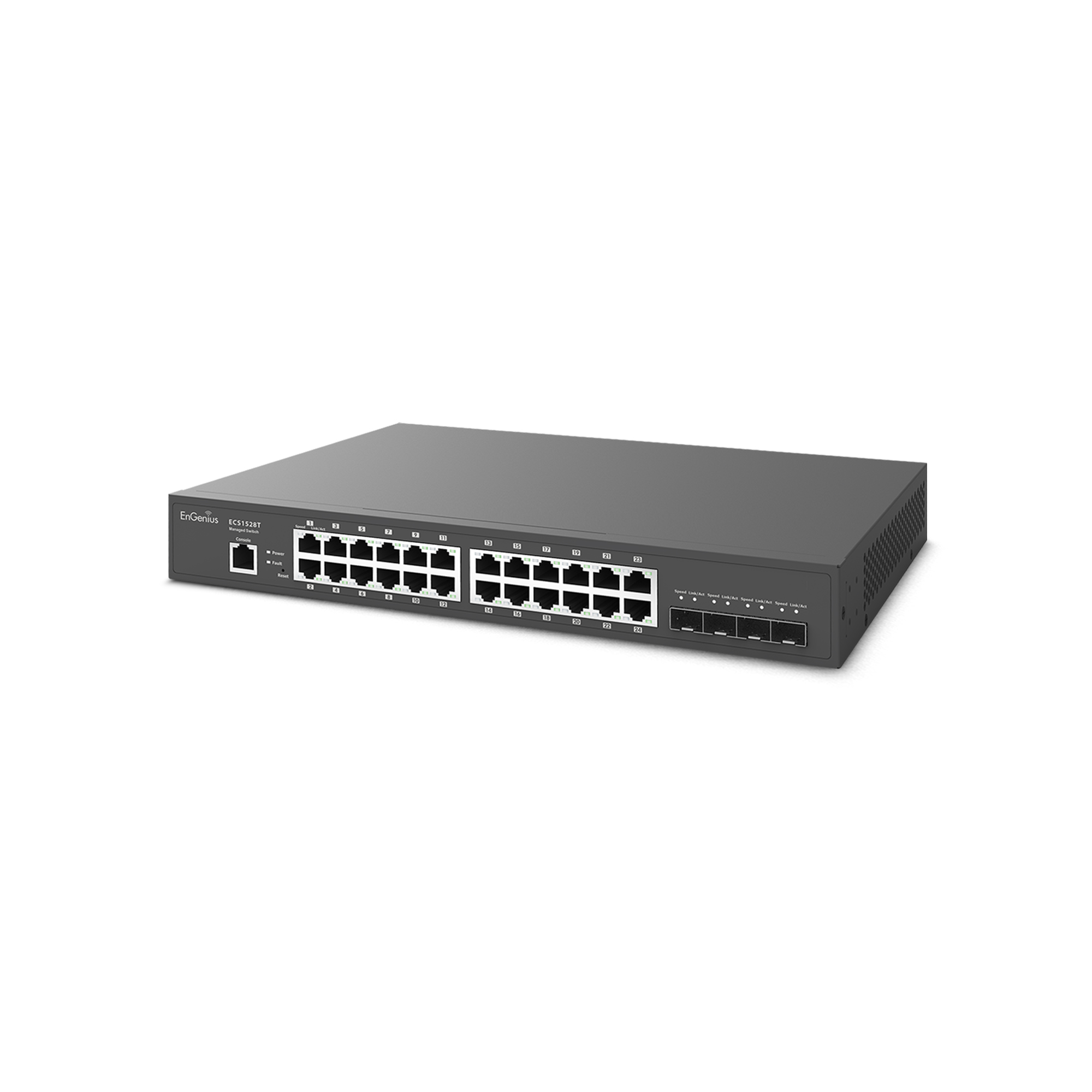

Front Angle

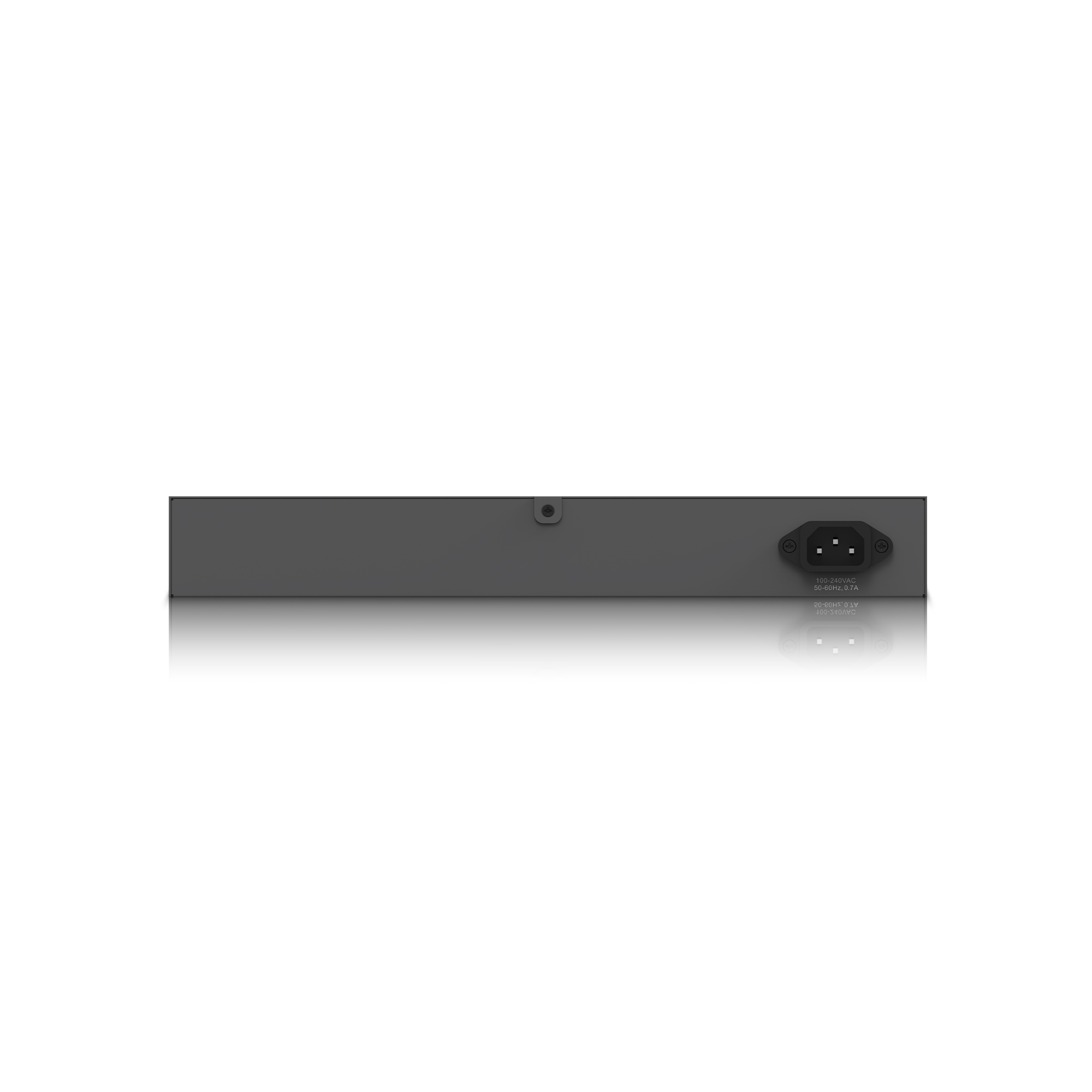

Back Angle

Specifications:

EnGenius ECS1528T Specifications
Port Standards 802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports 24 10/100/1000 Mbps Ports
4 SFP+ Ports
Switching Capacity 128Gbps
SDRAM 512MB
Flash Memory 128MB
Power Source 100 ~ 240VAC, 50-60Hz
Physical Interface
LED Indicators Power LED
Fault LED
Ports Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
Software Features (L3 Feature)
Multiple IP Interface 20 IPv6 address
ARP Table Max. 192 ARP entries
Static ARP Static 192 ARP entries
IPv4 Static Route Max. 63 entries
IPv6 Static Route
Max. 21 entries
IPv6 Static Route Max. 21 entries
Software Features (L2 Feature)
Network Management EnGenius Cloud
Local Web GUI
MAC Address Table 16K
Jumbo Frame 9K
Multicast Group Max 256 groups
MLD Snooping MLD Snooping: v1
QoS-Number of Priority Queues Supported Queue 8
Trust Mode Cos/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism Strict / WRR/ Strict + WRR
Bandwidth Control Port-based bandwidth control (Ingress/ Egress)
Port Security Max. 256 Entries
Access Control List (ACL) MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
Web Graphical User Interface (GUI) HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SSL Certificate Certificate/Key Import
SNMP SNMP v1/v2c/v3 Support
RMON RMON 1,2,3,9
System Time Time Setting/Daylight saving
Common L2 Features 802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree
Environment & Physical
Temperature Range Operating: 32ºF~122ºF (0 ºC~50 ºC)
Humidity (non-condensing) Operating: 5% - 95%
Dimensions & Weights Device Weight: 5.07 lbs. (2.3 kg)
Width: 9.06” (230 mm)
Length: 12.99” (330 mm)
Height: 1.73” (44 mm)
Package Contents 1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
Certifications CE, FCC, IC
Warranty 2 Year

Documentation:

Download the EnGenius ECS1528T Datasheet (PDF).
