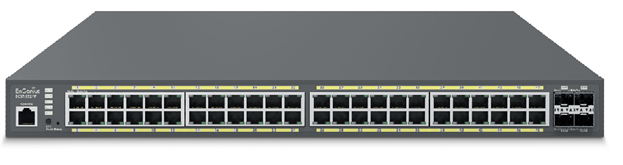

EnGenius ECS1552FP Product Image

EnGenius Products

EnGenius ECS1552FP

EnGenius ECS1552FP
Cloud Managed 48-Port Gigabit 740W PoE+ Enterprise Switch

#ECS1552FP
Get a Quote!

Get a Quote

More pricing below, click here!

Overview:

Layer 2+ Switch with 4 SFP+ Uplink Ports and Multiple Management Options for SMBs

EnGenius Cloud ECS1552FP , a 48-Port Gigabit PoE+ Layer 2+ Switch with a 740W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.

Full-featured layer 2+ switching
48 10/100/1000 Base-T GbE Port
802.3 at/af PoE+ Ready on All Ports with 740W PoE budget
176 Gbps Switching capacity
4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports

Available with Hardware v2 and Later

PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades

Image Gallery:

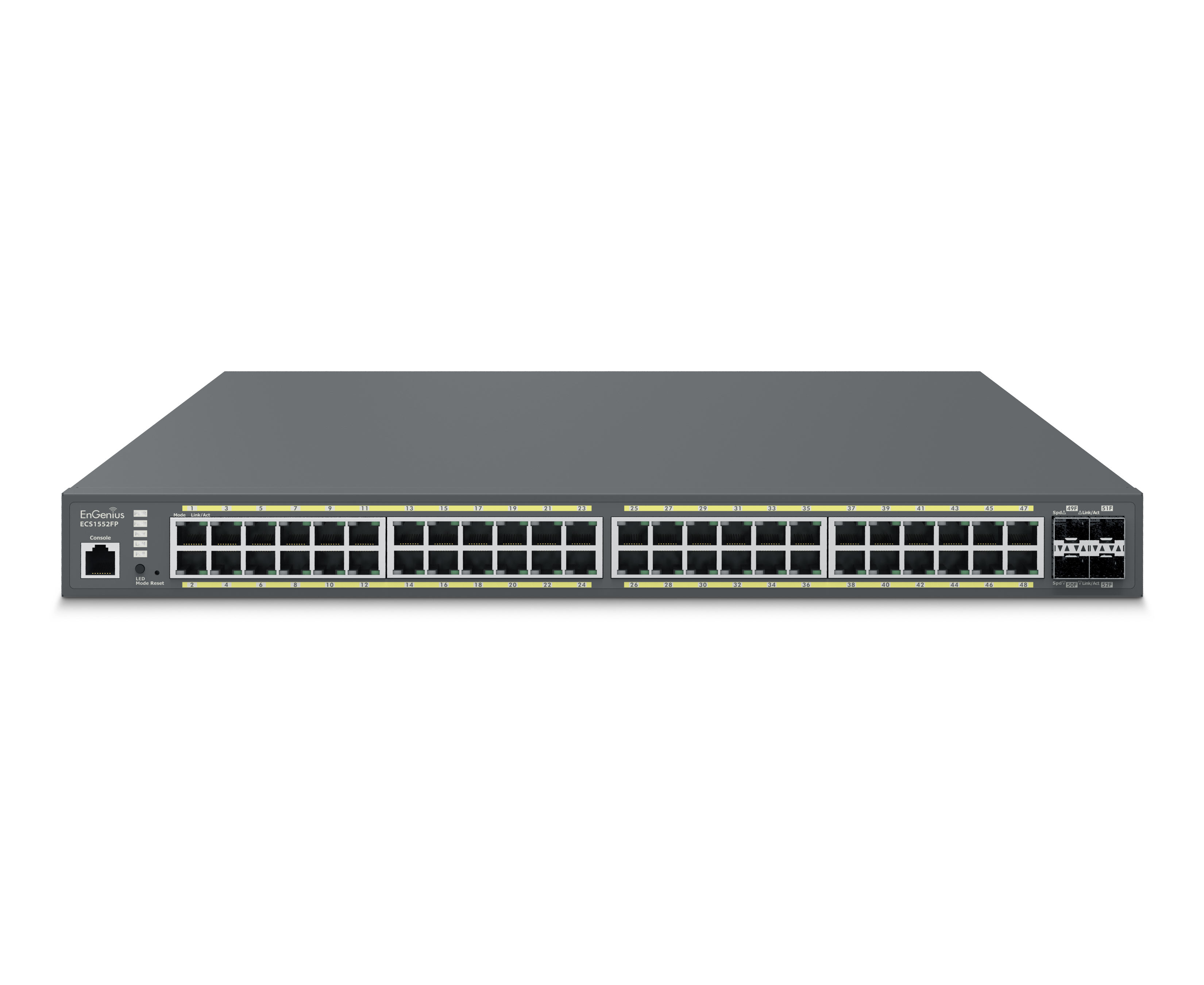

Front-Top

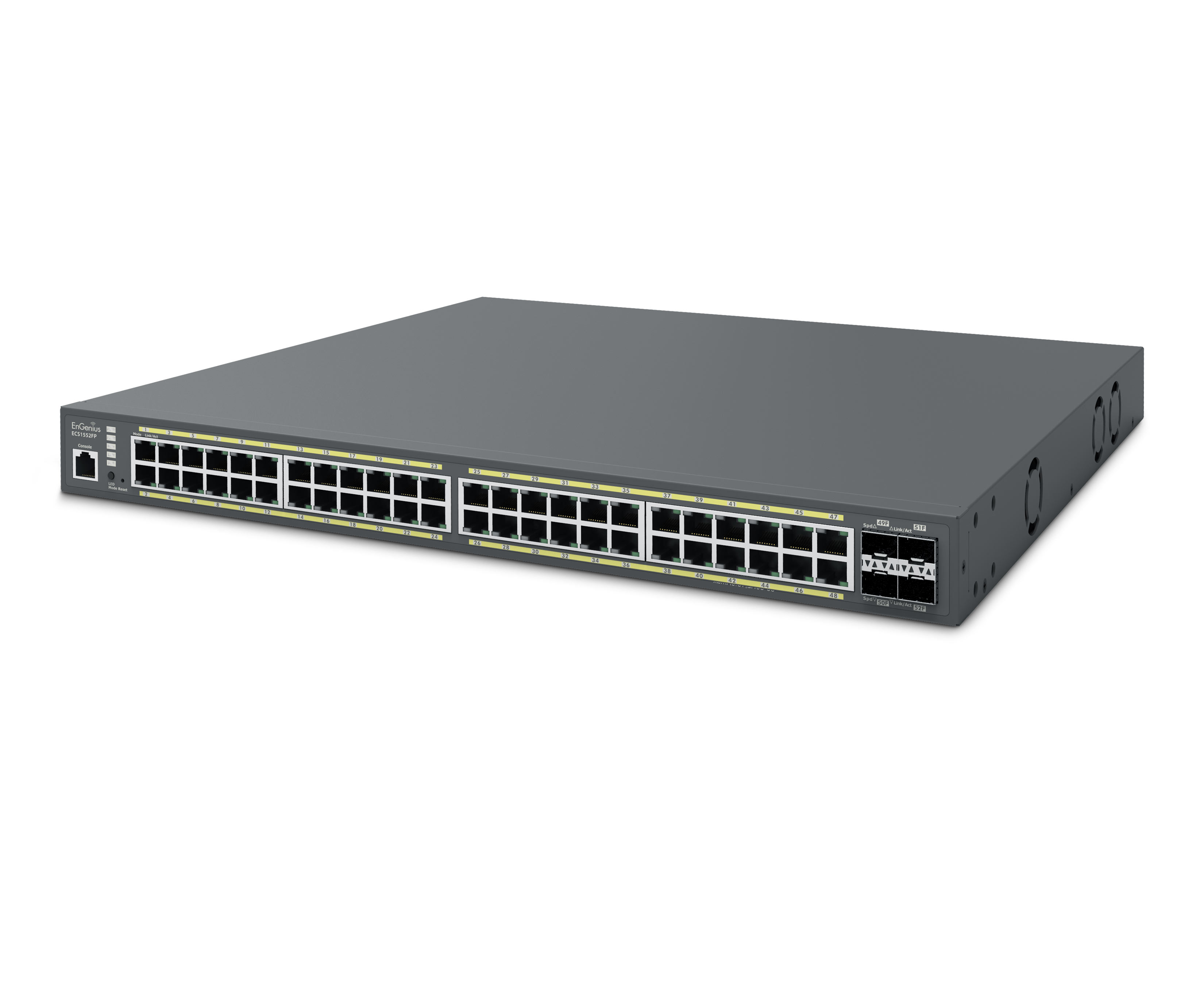

Front Angle

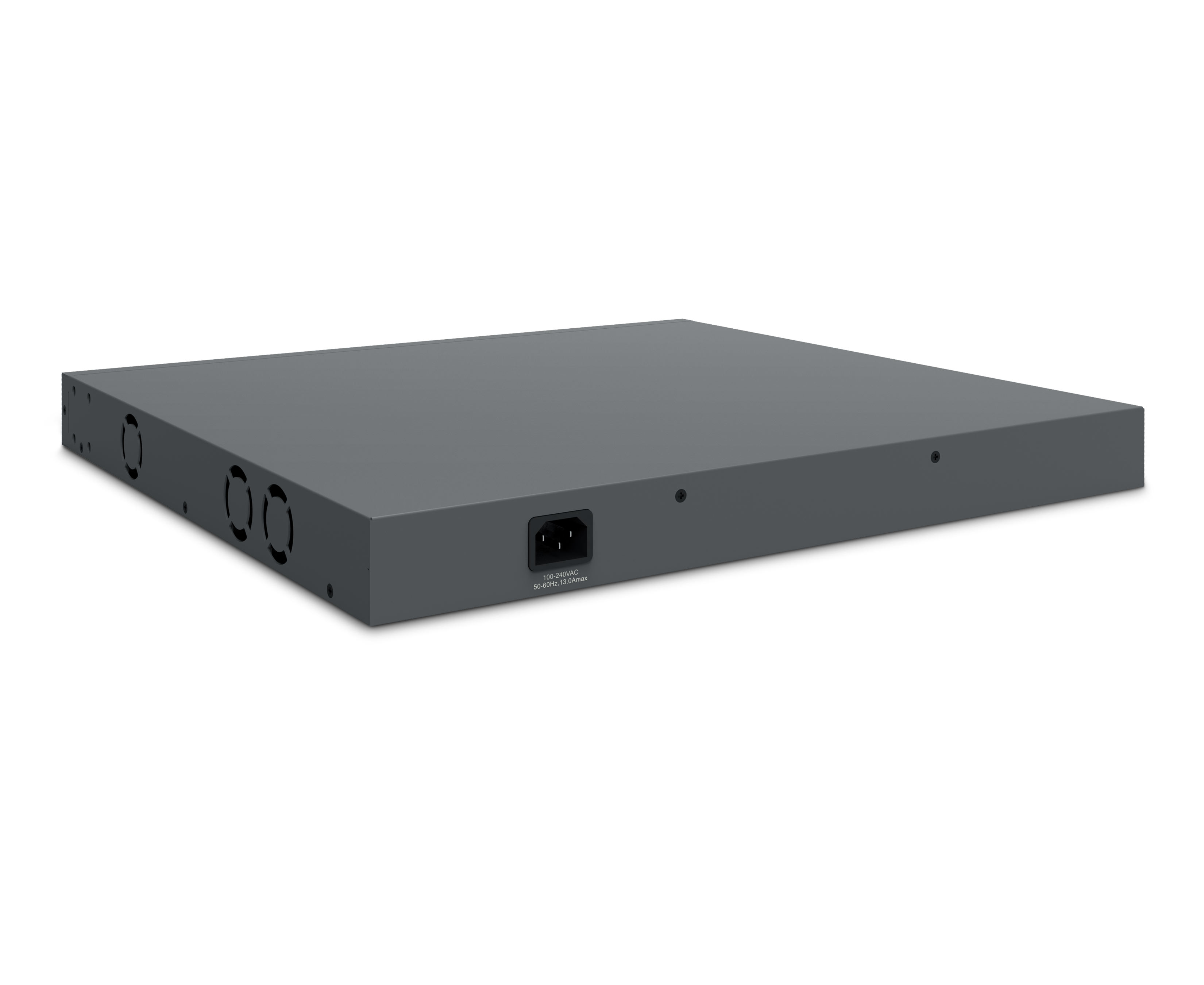

Back Angle

Specifications

Specifications:

EnGenius ECS1552FP Specifications
Port Standards	802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3x Full-Duplex Flow Control
Network Ports	48 10/100/1000 Mbps Ports + 4x SFP+ Ports
Switching Capacity	176Gbps
SDRAM	512MB
Flash Memory	128MB
PoE Capable Ports	1-48 (802.3at/af)
Total PoE Budge	740W
Power Source	100 ~ 240VAC, 50-60Hz

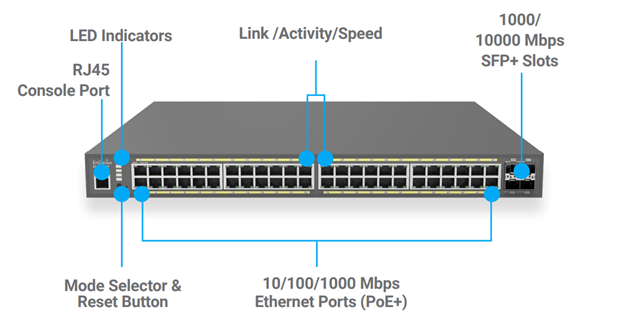

Physical Interface
LED Indicators	Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED
Ports	Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot)
Software Features (L3 Feature)
Multiple IP Interface	20 IPv6 address
ARP Table	Max. 192 ARP entries
Static ARP	Static 192 ARP entries
IPv4 Static Route	Max. 63 entries
IPv6 Static Route	Max. 21 entries
Software Features (L2 Feature)
Network Management	EnGenius Cloud Local Web GUI SkyKey ezMaster
MAC Address Table	32K
Jumbo Frame	10K
Multicast Group	Max 256 groups
MLD Snooping	MLD Snooping: v1
QoS-Number of Priority Queues Supported	Queue 8
Trust Mode	Cos/802.1p DSCP CoS/802.1p-DSCP
Scheduling Mechanism	Strict / WRR/ Strict + WRR
Bandwidth Control	Port-based bandwidth control (Ingress/ Egress)
Port Security	Max. 256 Entries
Access Control List (ACL)	MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Time base ACL
Web Graphical User Interface (GUI)	HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6
SSL Certificate	Certificate/Key Import
SNMP	SNMP v1/v2c/v3 Support
RMON	RMON 1,2,3,9
System Time	Time Setting/Daylight saving
Common L2 Features	802.1d Spanning tree Loopback Detection Multicast Filitering IGMP Multicast Forwarding IGMP Snooping MLD Multicast Forwarding 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Inspection ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN Protocol-Based VLAN CoS Mapping 802. 1X Radius Authentication Protocol IPv4 Settings IPv6 Settings IEEE 802. 3az Energy Efficeient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/ Backup Simple Network Time Protocol (SNTP) SYSLOG 802.1d Spanning tree
Environment & Physical
Temperature Range	Operating: 32ºF~122ºF (0 ºC~50 ºC)
Humidity (non-condensing)	Operating: 5% - 95%
Dimensions & Weights Device	Weight: 10.5 lbs. (4.76 kg) Width: 17.32” (440 mm) Length: 10.23” (260 mm) Height: 1.73” (44 mm)
Package Contents	1x ECS Managed Gigabit Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit
Warranty	2 Year

Documentation:

Download the EnGenius ECS1552FP Datasheet (PDF).
