EnGenius ECS1112FP
Cloud Managed 130W PoE+ 8 Port Gigabit Switch
EnGenius Products
EnGenius ECS1112FP
More pricing below, click here!
Overview:
Layer 2+ Switch with 4 Uplink Ports and Multiple Management Options for SMBs
EnGenius Cloud ECS1112FP , an 8-Port Gigabit PoE+ Layer 2+ Switch with 130W Budget, 2 GbE and 2 Dual-Speed SFP ports for uplinks. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.
- Full-featured layer 2+ switching
- 8 10/100/1000 Base-T GbE Ports
- 802.3 at/af PoE+ Ready on All Ports with 130W PoE budget
- 24 Gbps Switching capacity
- 2 Gigabit Ethernet Port and 2 Dual-Speed SFP (fiber) uplink ports
Image Gallery:

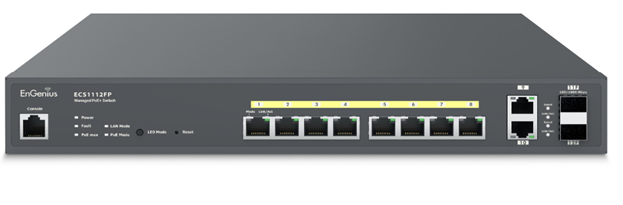

Front-Top

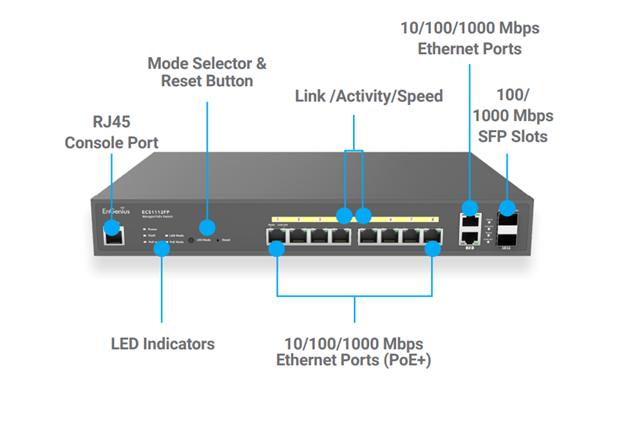

Specifications

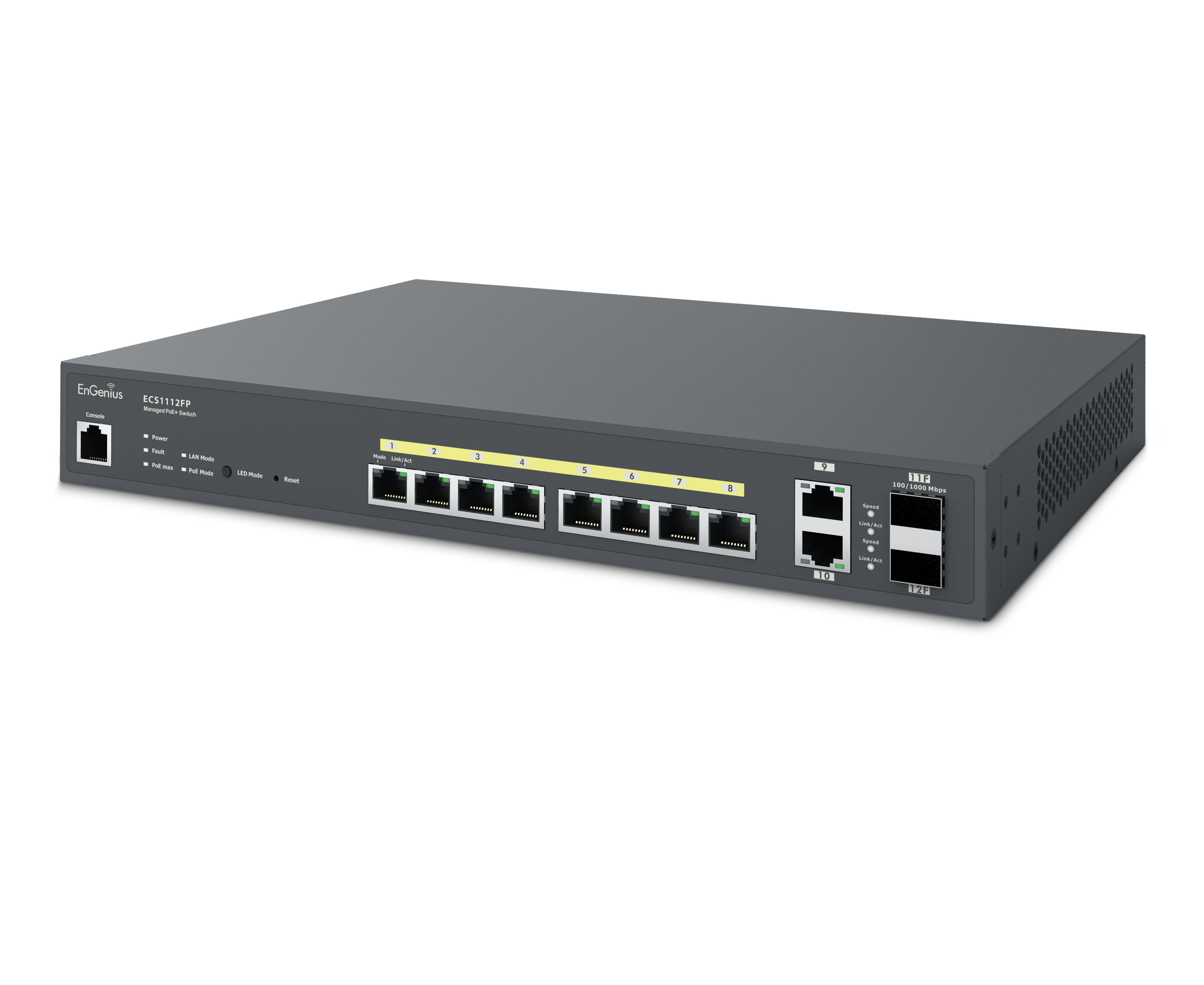

Front Angle

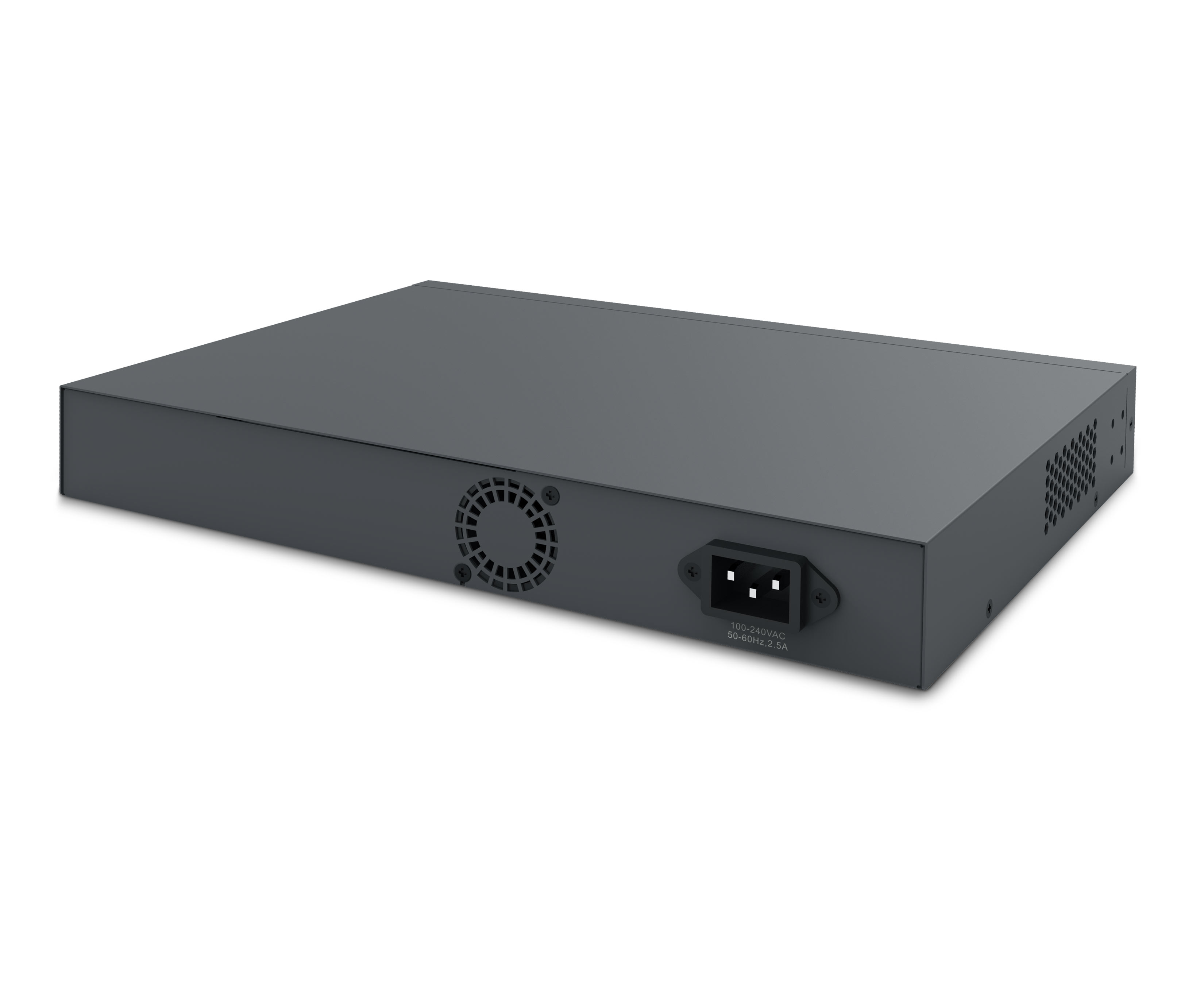

Back Angle
Specifications:
| EnGenius ECS1112FP Specifications | |
|---|---|
| Port Standards | 802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3x Full-Duplex Flow Control |
| Network Ports | 10 10/100/1000 Mbps Ports + 2x SFP Ports |
| Switching Capacity | 24Gbps |
| SDRAM | 256MB |
| Flash Memory | 32MB |
| PoE Capable Ports | 1-8 (802.3at/af) |
| Total PoE Budge | 130W |
| Power Source | 100 ~ 240VAC, 50-60Hz |
| Physical Interface | |
| LED Indicators | Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED |
| Ports | Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot) |
| Software Features (L3 Feature) | |
| Multiple IP Interface | 20 IPv6 address |
| ARP Table | Max. 192 ARP entries |
| Static ARP | Static 192 ARP entries |
| IPv4 Static Route | Max. 63 entries |
| IPv6 Static Route | Max. 21 entries |
| Software Features (L2 Feature) | |
| Network Management | EnGenius Cloud Local Web GUI SkyKey ezMaster |
| MAC Address Table | 8K |
| Jumbo Frame | 9K |
| Multicast Group | Max 256 groups |
| MLD Snooping | MLD Snooping: v1 |
| QoS-Number of Priority Queues Supported | Queue 8 |
| Trust Mode | Cos/802.1p DSCP CoS/802.1p-DSCP |
| Scheduling Mechanism | Strict / WRR/ Strict + WRR |
| Bandwidth Control | Port-based bandwidth control (Ingress/ Egress) |
| Port Security | Max. 256 Entries |
| Access Control List (ACL) | Ingress MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Action: Permit/Deny Time base ACL |
| Web Graphical User Interface (GUI) | HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6 |
| SSL Certificate | Certificate/Key Import |
| SNMP | SNMP v1/v2c/v3 Support |
| RMON | RMON 1,2,3,9 |
| System Time | Time Setting/Daylight saving |
| Common L2 Features | 802.1d Spanning tree Loopback Detection Multicast Filtering IGMP Multicast Forwarding IGMP Snooping MLD Multicast Forwarding 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Inspection ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN Protocol-Based VLAN CoS Mapping 802. 1X Radius Authentication Protocol IPv4 Settings IPv6 Settings IEEE 802. 3az Energy Efficient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/Backup Simple Network Time Protocol (SNTP) SYSLOG 802.1d Spanning tree |
| Environment & Physical | |
| Temperature Range | Operating: 32ºF~122ºF (0 ºC~50 ºC) |
| Humidity (non-condensing) | Operating: 5% - 95% |
| Dimensions & Weights Device | Weight: 4.4 lbs. (1.9 kg) Width: 13” (330.20 mm) Length: 9” (228.60 mm) Height: 1.73” (44 mm) |
| Package Contents | 1x ECS Managed Gigabit Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit |
| Warranty | 2 Year |
Documentation:
Download the EnGenius ECS1112FP Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
