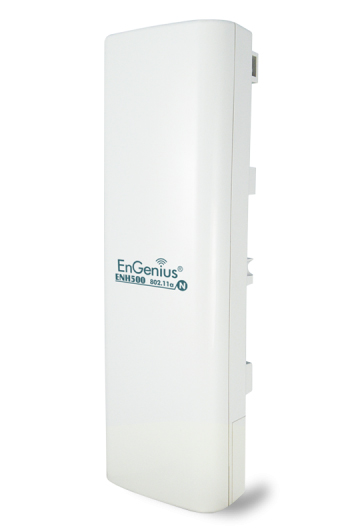

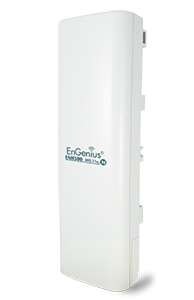

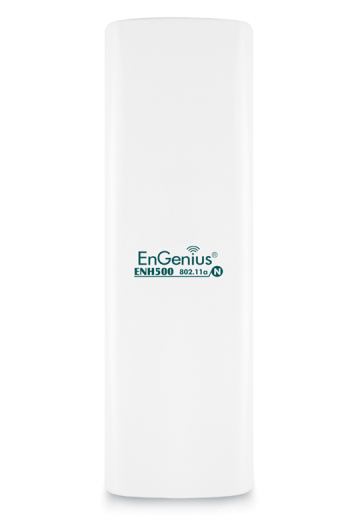

EnGenius ENH500v3
Wi-Fi 5 Wave 2 Outdoor AC867 5 GHz Wireless Bridge

EnGenius ENH500

EnGenius ENH500v3 hardware is backordered until February and cannot be purchased, a viable in-stock replacement is the ENS500-AC, please contact us for further assistance.


EnGenius Products
EnGenius ENH500v3
ENJET OUTDOOR AC WAVE 2 CPE
#ENH500V3
Get a Quote!
EnGenius Wi-Fi Bundle Kits
ENH500v3 Kit (2)
#ENH500V3-KIT
Get a Quote!

More pricing below, click here!

Overview:

Streamlined, Long-Range CPE Expands Point-to-Point or Point-to-Multipoint Networks

The ENH500v3 Wireless Bridge leverages the advanced 802.11ac Wave 2 Wi-Fi technology that maximizes wireless speed and is 3x faster than the typical 802.11n speed. EnGenius ENH500v3 features ‘Time Division Multiple Access’ technology that cuts through RF-congested environments within point-to-point/multipoint applications. Offers a high-gain 16 dBi dual-polarized directional antenna that extends the network coverage up to 5 miles point-to-point.

Product Highlights

  • 11ac Wave 2 wireless speeds up to 867 Mbps on 5 GHz
  • 27 dBm high transmit power extends Wi-Fi building-to-building
  • IP55-Rated weatherproof & dustproof housing
  • High Gain 16 dBi Integrated Directional Antennas extends wireless point-to-point networks up to 5 miles

Ideal For:

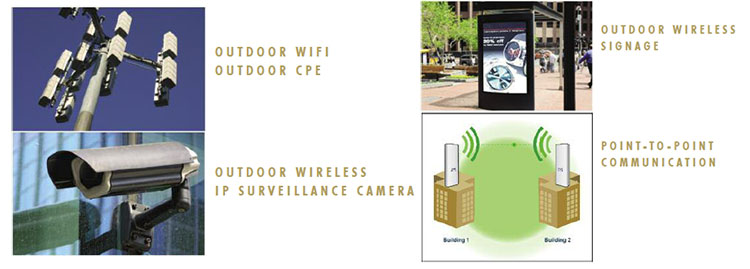

EnGenius ENH500 deployment

Features:

  • High-output power up to 28dBm delivers superior range and coverage
  • Fully interoperable with IEEE 802.11a/IEEE 802.11n-compliant devices
  • High-speed data rates up to 300 Mbps make the ENH500 ideally suited for handling heavy data payloads such outdoor security camera, video streaming, etc.
  • WPA2/WPA/ WEP/ IEEE 802.1x support and MAC address filtering ensure secure network connections
  • RSSI indicator makes it easy to select the best signal for Access Point connections
  • Power-over-Ethernet capabilities allow for flexible installation locations and cost savings
  • Four SSIDs let clients access different networks through a single Access Point, and assign different policies and functions for each SSID
  • Multi-function operation (CB/AP/WDS/APRouter) modes provide flexible deployment
  • The AP-Router mode with PPPoE/PPTP, DHCP server function support in special network deployment in which the CPE also serves as Internet gateway
  • QoS (WMM) support enhances performance and user experiences

Differentiators:

  • High-Power Long Range wireless coverage
    - Maximum 600mW Power output ensures robust signal overcoming long distances barrier
  • 5GHz for minimal interference
    - A High performance three time as fast as wireless G. The Maximum wireless connection rate is up to 150 Mbps. Backward compatible to wireless b/g network.
  • Integrated Dual Polarity Antenna Design
    - Selectable vertical or horizontal antenna polarity to avoid interference and Maximize performance
  • Design for Outdoor Deployment
    - IP55 waterproof housing against rain, moisture
  • High wireless data rate up to 300Mbps
    - Compliant with 802.11n standard for connection rate up to 300Mbps - 6x the speed of similar 802.11g devices and backward compatible to 11g
  • Internal High-Gain Directional Antenna
    - With built-in 13 dBi antenna gives you long range reach
  • PoE kit & mounting kit provides easy installation
    - Included power adapter, PoE injector, mast mount strap, cable accessories.

Specifications:

EnGenius ENH500v3 Specifications
Hardware Specifications
MCU: Atheros AR7240
RF: Atheros AR9280
Memory: 32 MB
Flash: 8 MB

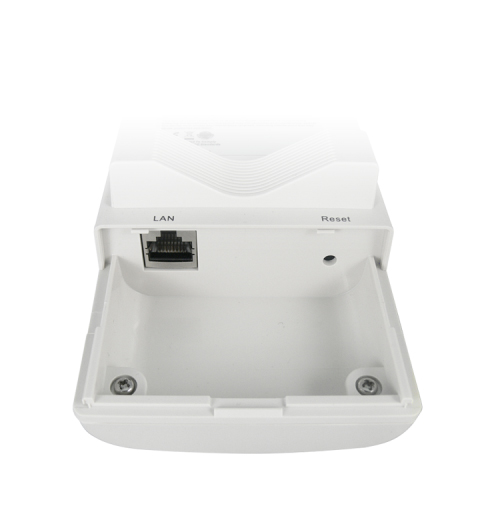

Physical Interface:
  • 10/100 Fast Ethernet port x 2
  • One Reset button
LED’s Status:
  • Power (Status)
  • LAN1 (PoE 10/100Mbps) /LAN2 (10/100Mbps)
  • WLAN (Wireless is up)
  • 3 x Link Quality (Client Bridge mode)
Power requirements:
  • Active Ethernet: (Power over Ethernet) Proprietary PoE design
  • Power Adapter: 24VAC / 0.6A
RF Specifications
Wireless standard IEEE802.11 a/n
Frequency Band: 5.18 ~ 5.825GHz (a/n)
Modulation Technologies:
  • IEEE 802.11b: DBQSK, DQPSK, CCK
  • IEEE 802.11a: BQSK, QPSK, 16-QAM, 64-QAM
  • IEEE 802.11n: BQSK, QPSK, 16-QAM, 64-QAM
Operating Channels: 24 channels
Transmit/Recieve Power
  Channel Tx Avg. Power Optimal (dBm) Rx Sensitivity Optimal (dBm)
802.11a (5.18 ~ 5.825GHz) 6Mbps 28 -95
9Mbps 28 -92
12Mbps 28 -89
18Mbps 28 -85
24Mbps 28 -81
36Mbps 26 -79
48Mbps 24 -76
54Mbps 23 -75
802.11n(5.18 ~ 5.825GHz) MCS0 / MCS8 28 -94
MCS1 / MCS9 28 -92
MCS2 / MCS10 26 -88
MCS3 / MCS11 26 -85
MCS4 / MCS12 25 -80
MCS5 / MCS13 24 -79
MCS6 / MCS14 24 -74
MCS7 / MCS15 23 -73
Antenna: Internal Antenna x 2
Antenna gain: 13 dBi
Frequency Band Range: 5.18 ~ 5.825GHz
Horizontal Beam width: 60°
Vertical Beam width: 15°
Antenna Polarity: Dual-Polarized: Vertical/Horinzontal
This product does not include an external antenna connector.
Software Specifications
Topology: Infrastructure
Protocol: IEEE802.3, 802.3U, 802.11 a/n (5GHz)
Operation mode: Client Bridge/Access Point/WDS bridge/Client Router
Service: DHCP server/client
VPN: VPN Pass-through
Networking: PPPoE, PPTP
Narrow bandwidth (selectable 20MHz/40MHz)
Management:
Firmware upgrade: Reset & Backup, Ping & Trace Route
MIB: MIB I, MIB II(RFC1213), Private MIB
SNMP: SNMP v1, v2c
Security:
  • WEP Encryption-64/128/152 bit
  • WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
  • WPA/WPA2 Enterprise (WPA-EAP using TKIP)
  • 802.1x Authenticator
  • Hide SSID in beacons
  • MAC address filtering, up to 50 field
  • Wireless STA (Client) connected list
QoS: WMM (Wi-Fi Multimedia)
Environment & Physical
Temperature Range Operating: -20°C to 70°C (-4°F to 158°F)
Storage: -30°C to 80°C (-22°F to 176°F)
Humidity (non-condensing): 0%~90% typical
Dimensions: Length: 10.24” (260mm) x Width: 3.31” (84mm) x Height: 2.17” (55mm)
Weight: 0.9 Ib
Certifications: FCC, CE, IC

Compare:


Models: ENS1750 ENS1200 ENS500EXT ENS500 ENS202EXT ENS202
Wi-Fi Standard 802.11 a/b/g/n/ac 802.11 a/b/g/n/ac 802.11 a/n 802.11 a/n 802.11 b/g/n 802.11 b/g/n
RAM 64MB 64MB 32MB 32MB 32MB 32MB
Flash 16MB 16MB 16MB 16MB 16MB 16MB
Frequency Band 2.4 GHz & 5GHz 2.4 GHz & 5GHz 5GHz 5GHz 2.4 GHz 2.4 GHz
Maximum Advertised Speed 2.4 GHz: 450Mbps
5 GHz: 1300Mbps
2.4 GHz: 300Mbps
5 GHz: 866Mbps
300Mbps 300Mbps 300Mbps 300Mbps
RF Power (dBm) 2.4 GHz: 29 dBm
2.4 GHz: 28 dBm
27 dBm 26 dBm 26 dBm 26 dBm 26 dBm
RF Power (mW) 800mW 500mW 400mW 400mW 400mW 400mW
Operation Modes Access Point
Client Bridge
WDS Bridge/AP/ Station
Access Point
Client Bridge
WDS Bridge/AP/ Station
Access Point
Client Bridge
WDS Bridge/AP/ Station
Client Router
Access Point
Client Bridge
WDS Bridge/AP/ Station
Client Router
Access Point
Client Bridge
WDS Bridge/AP/ Station
Client Router
Access Point
Client Bridge
WDS Bridge/AP/ Station
Client Router
LAN Interface 10/100/1000 x2 10/100/1000 x2 10/100 x2 10/100 x2 10/100 x2 10/100 x2
Antenna Built-in 5 dBi Directional Built-in 5 dBi Directional 2x External 5 dBi Omni Directional Built-in 10 dBi Directional 2x External 5 dBi Omni directional Built-in 8dBi Directional
Antenna Connector Type N/A N/A SMA N/A SMA N/A
Encryption WEP/WPA/WPA2 WEP/WPA/WPA2 WEP/WPA/WPA2 WEP/WPA/WPA2 WEP/WPA/WPA2 WEP/WPA/WPA2
PoE Power 48v 48v 24v 24v 24v 24v
IP Rating 65 65 65 65 65 65
Primary Application Point 2 multipoints Point 2 multipoints Point 2 multipoints Building 2 building Point 2 multipoints Building 2 building
Secondary Application 5GHz single radio bridge 5GHz single radio bridge 5GHz single radio bridge High speed mid-long range P2P network 2.4GHz N300 radio bridge High-speed CPE device
Specialty Application Highly interferred 2.4GHz wireless traffic Highly interferred 2.4GHz wireless traffic Highly interferred 2.4GHz wireless traffic Outdoor IP cam AP in congested 2.4GHz area Small base station replacement Outdoor video IP cam wireless client

Documentation:

Download the EnGenius ENH500 Datasheet (PDF).
