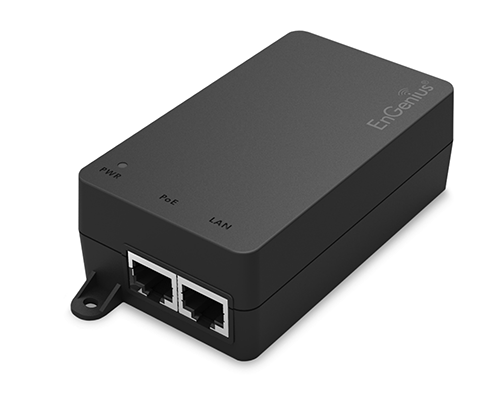

EnGenius EPA5006GP
Passive 54v Gigabit Power-over-Ethernet Adapter

Features:

Deliver Data & Power Over a Single Cable

The Passive 54v PoE Adapter includes two Gigabit Ethernet (10/100/1000 Mbps) ports; one port is used for connecting to a compatible PoE Switch and the other for connecting to a PoE-enabled device. The Adapter can also serve to extend power between non-PoE Switches and network devices by connecting one port to a standard network Switch and the other to a PoE-enabled device up to 328-feet from the power source.

Extend Power to Access Points, IP Cameras, VoIP Phones and more

The EPA5006GP Passive 54v Gigabit PoE Adapter supports high-speed data and up to 32.8-watts/54v of power for compatible devices, such as Access Points, IP Cameras or VoIP phones over a single CAT5/6 cable for flexibility in deployment options.

Deployment Flexibility

The Passive 54v Gigabit PoE Adapter gives network administrators the flexibility to extend power to compatible network devices in locations where power outlets may not be readily available, such as on ceilings or in crawl spaces, while also connecting them to the company network.

Compact, Optimal Port Design

Compact, optimal port design provides easy, precise installation in tight spots such as structured wiring enclosures, and built-in power surge protection for securing valuable network equipment.

Protects Valuable Equipment

With disconnect, short-circuit and surge protection, valuable equipment is guarded from power surges or short-circuits associated with lighting strikes and electrostatic discharge (ESD).

Specifications:

EnGenius EPA5006GP Specifications
Standards	802.3 10BaseT 802.3u 100BaseT 802.3ab Gigabit Ethernet Proprietary PoE
Compliance	IEC 60950-1:2005+A1 UL60950-1 ENS55022:2010 EN55024:2010 FCC Part 15 Class B FCC, CE
Physical Interface	(1) Gigabit Data Port (1) Gigabit Data & Power Output Port (1) IEC-320 C6 AC Connector
LED Indicator	1 x Power on Green
Mounting	Wall (anchors & screws included)
Power	Input Voltage 100 to 240VAC
Input Current	0.8A Max for 100VAC
AC Input Frequency	47-63Hz
Maximum Output Power	32.8W
Power Lines	Pin4, 5:54V, Pin7, 8:Return
Added Protection Features	Short-Circuit Surge (over current/over voltage)
Environment & Physical
Temperature	Operating: 32°F to 104°F (0°C to 40°C) Storage:  -22°F to 176°F (-30°C to 80°C)
Humidity (non-condensing)	Operating: 5 to 90% or less Storage: 5 to 90% or less
Dimensions & Weights
EPA5006GAT Device (Without Mounting Kit)	Weight: .33 lbs. (154 g) Length: 3.9” (99 mm) Width: 2.27” (68.5 mm) Height: 1.3” (33 mm)
Packaging	Weight: .57 lbs. (262 g) Length: 5.4” (139 mm) Width: 4.8” (122.5 mm) Height: 2” (52 mm)
Master Carton	Weight: 24 lbs. (10.93 kg) Length: 20.4” (520 mm) Width: 10.6” (270 mm) Height: 12.2” (310 mm) No. of boxes per Master carton: 40 Units
Package Contents	EPA5006GP Power Cord
Warranty	1 year
Compatible EnGenius Products	EAP1750 – Ceiling Mount Dual-Band Wireless AC1750 Access Point/Client Bridge EAP1200 - Ceiling Mount Dual-Band Wireless AC1200 Access Point/Client Bridge EAP900 - Ceiling Mount Dual-Band N900 Indoor Access Point EAP600 – Ceiling Mount Dual-Band N600 Indoor Access Point EAP350 – Ceiling Mount Dual-Band N300 Indoor Access Point EAP300 – Ceiling Mount Wireless N300 Indoor Access Point ECB1200 – 802.11ac 2x2 Dual-Band, High-Powered Wireless Access Point/Client Bridge ECB600 – Dual-Band Wireless N600 Indoor Access Point/Client Bridge ECB350 – Wireless N300 Indoor Access Point/Client Bridge with Gigabit ENH1750EXT – Ruggedized 3x3 Dual-Band Wireless AC1750 Outdoor Access Point ENH900EXT – Ruggedized 3x3 Dual-Band Wireless N900 Outdoor Access Point ENH710EXT – Dual-Band Wireless N600 Outdoor Access Point ENH220EXT – High-Capacity Wireless N300 Outdoor Access Point

Documentation:

Download the EnGenius EPA5006GP Datasheet (PDF).
