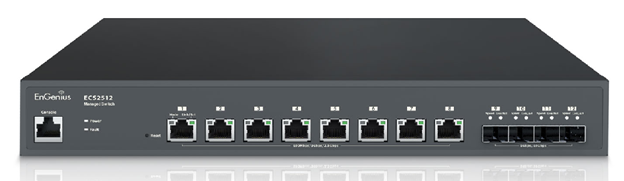

EnGenius ECS2512 Product Image


EnGenius Products
EnGenius ECS2512
EnGenius ECS2512
Cloud Managed 8-Port Multi Gig Switching 2.5G with 4 10G SFP+ Uplink Ports
#ECS2512
Get a Quote!
Get a Quote

More pricing below, click here!

Overview:

Layer 2+ Switch with 4 10G SFP+ Uplink Ports for Large Businesses

EnGenius Cloud Multi-Gigabit ECS2512 is an 8-Port, 2.5G per port, Layer 2+ Switch with 4 10G SFP+ uplink ports. Multi-Gig switches with enterprise-class features optimize network efficiency ensuring peak performance for large businesses. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or budget.

  • Full-featured layer 2+ switching
  • 8 10/100/1000/2500 Base-T GbE Ports to serve high-bandwidth devices
  • 120 Gbps Switching capacity for improved performance
  • 4 Dual-Speed 10G SFP+ (fiber) uplink ports
  • Security - Access Control List/Port Security; 802.1X & RADIUS Authentication

Image Gallery:










Front-Top

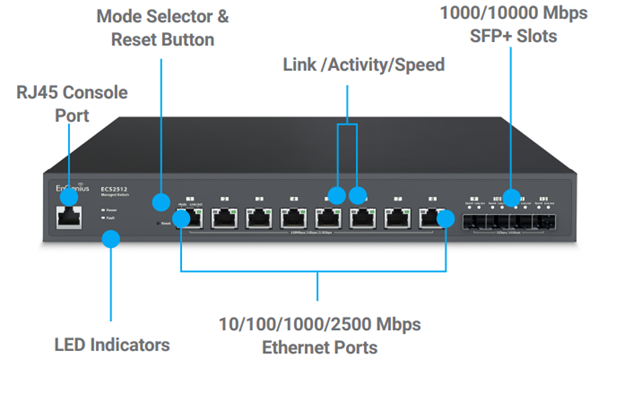

Specifications

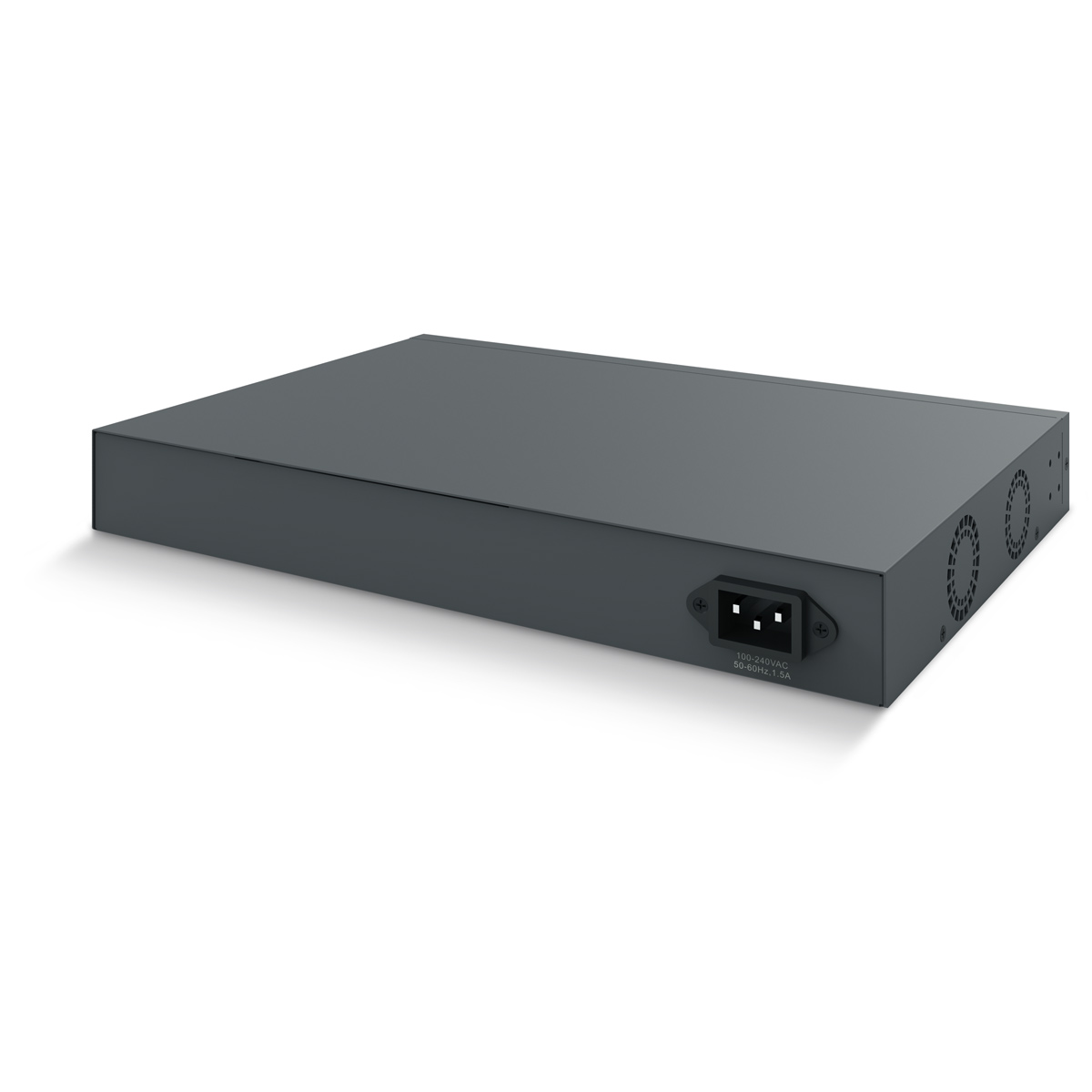

Back Angle

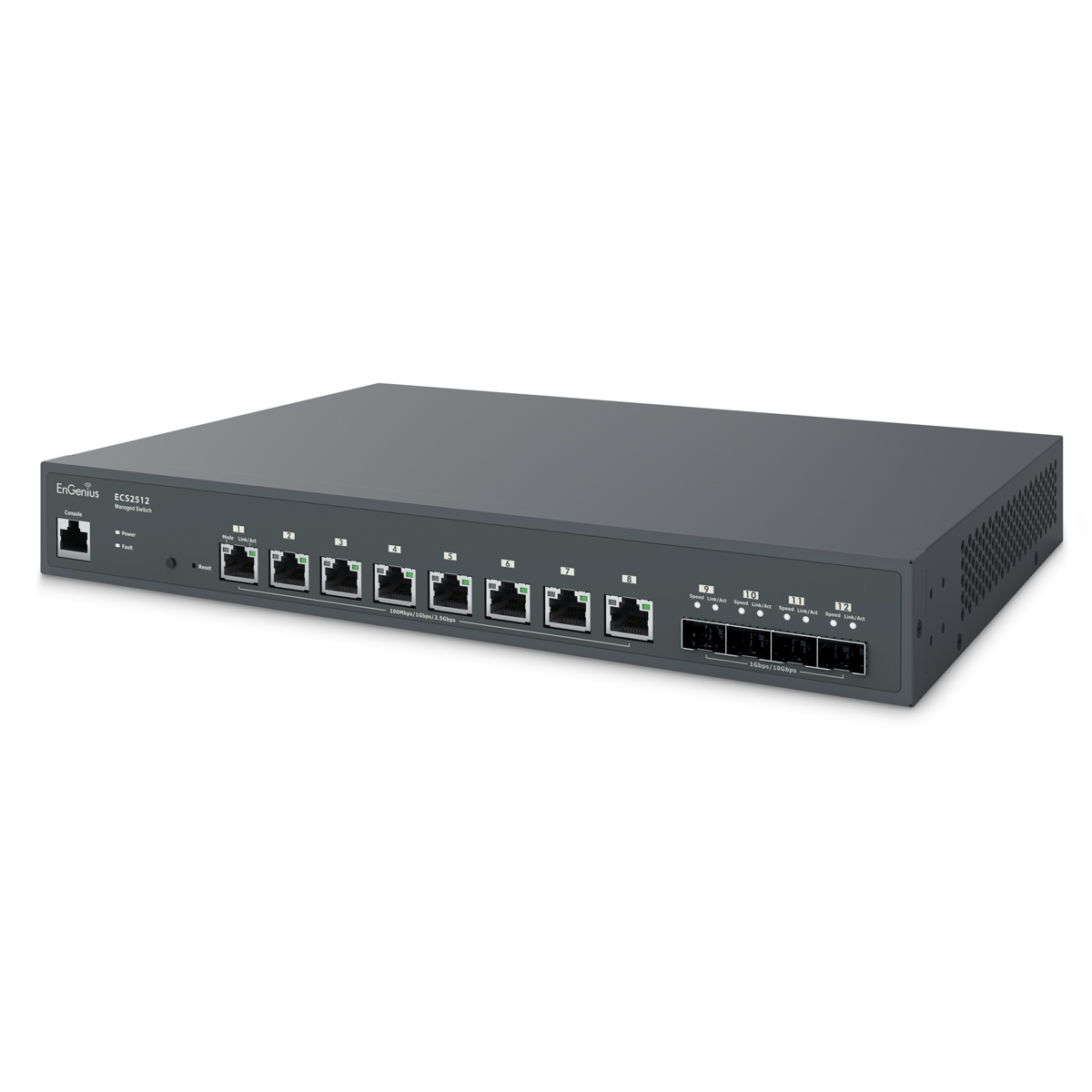

Front Angle

Specifications:

EnGenius ECS2512 Specifications
Port Standards 802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2500/5000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports 8 10/100/1000/2500 Mbps Ports + 4x SFP+ Ports
Switching Capacity 120Gbps
SDRAM 512MB
Flash Memory 128MB
Power Source 100 ~ 240VAC, 50-60Hz
Physical Interface
LED Indicators Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
Software Features (L3 Feature)
Multiple IP Interface 20 IPv6 address
ARP Table Max. 192 ARP entries
Static ARP Static 192 ARP entries
IPv4 Static Route Max. 63 entries
IPv6 Static Route Max. 21 entries
Software Features (L2 Feature)
Network Management EnGenius Cloud
Local Web GUI
SkyKey
ezMaster
MAC Address Table 16K
Jumbo Frame 9K
Multicast Group Max 256 groups
MLD Snooping MLD Snooping: v1
QoS-Number of Priority Queues Supported Queue 8
Trust Mode Cos/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism Strict / WRR/ Strict + WRR
Bandwidth Control Port-based bandwidth control (Ingress/ Egress)
Port Security Max. 256 Entries
Access Control List (ACL) MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
Web Graphical User Interface (GUI) HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SSL Certificate Certificate/Key Import
SNMP SNMP v1/v2c/v3 Support
RMON RMON 1,2,3,9
System Time Time Setting/Daylight saving
Common L2 Features 802.1d Spanning tree
Loopback Detection
Multicast Filitering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree
Environment & Physical
Temperature Range Operating: 32ºF~122ºF (0 ºC~50 ºC)
Humidity (non-condensing) Operating: 5% - 95%
Dimensions & Weights Device Weight: 5.75Ibs (2.61 kg)
Width: 9.05” (230 mm)
Length: 12.99” (330 mm)
Height: 1.73” (44 mm)
Package Contents 1x ECS Managed Multi-Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
Warranty 2 Year

Documentation:

Download the EnGenius ECS2512 Datasheet (PDF).
