EnGenius ECS1528P
Cloud Managed 240W 24-Port Gigabit Switch PoE+ with 4 SFP+ Ports

EnGenius ECS1528P Product Image

EnGenius Products

EnGenius ECS1528P

EnGenius ECS1528P
Cloud Managed 240W 24-Port Gigabit Switch PoE+ with 4 SFP+ Ports

#ECS1528P
Get a Quote!

Get a Quote

More pricing below, click here!

Overview:

Layer 2+ Switch with Multiple Management Options for Large Businesses

EnGenius Cloud ECS1528P is a 24-Port Gigabit PoE+ Layer 2+ Switch with a 240W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.

Full-featured layer 2+ switching
24 10/100/1000 Base-T GbE Ports
802.3 at/af PoE+ Ready on All Ports with 240W PoE budget
4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades
Quick-Scan Device Register, Remote Monitoring and Troubleshooting
Hybrid Switch Supports Multiple Management Options

Image Gallery:

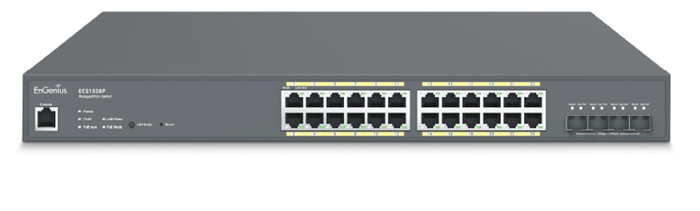

Front-Top

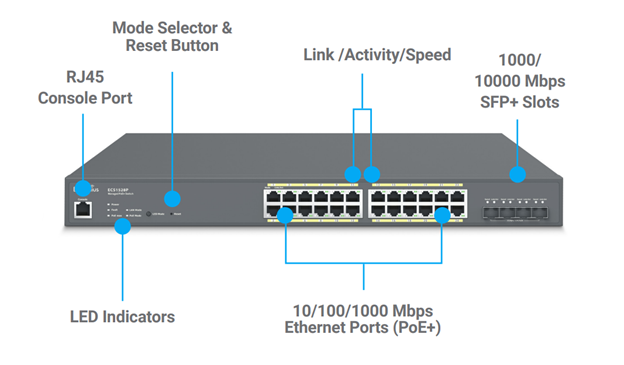

Specifications

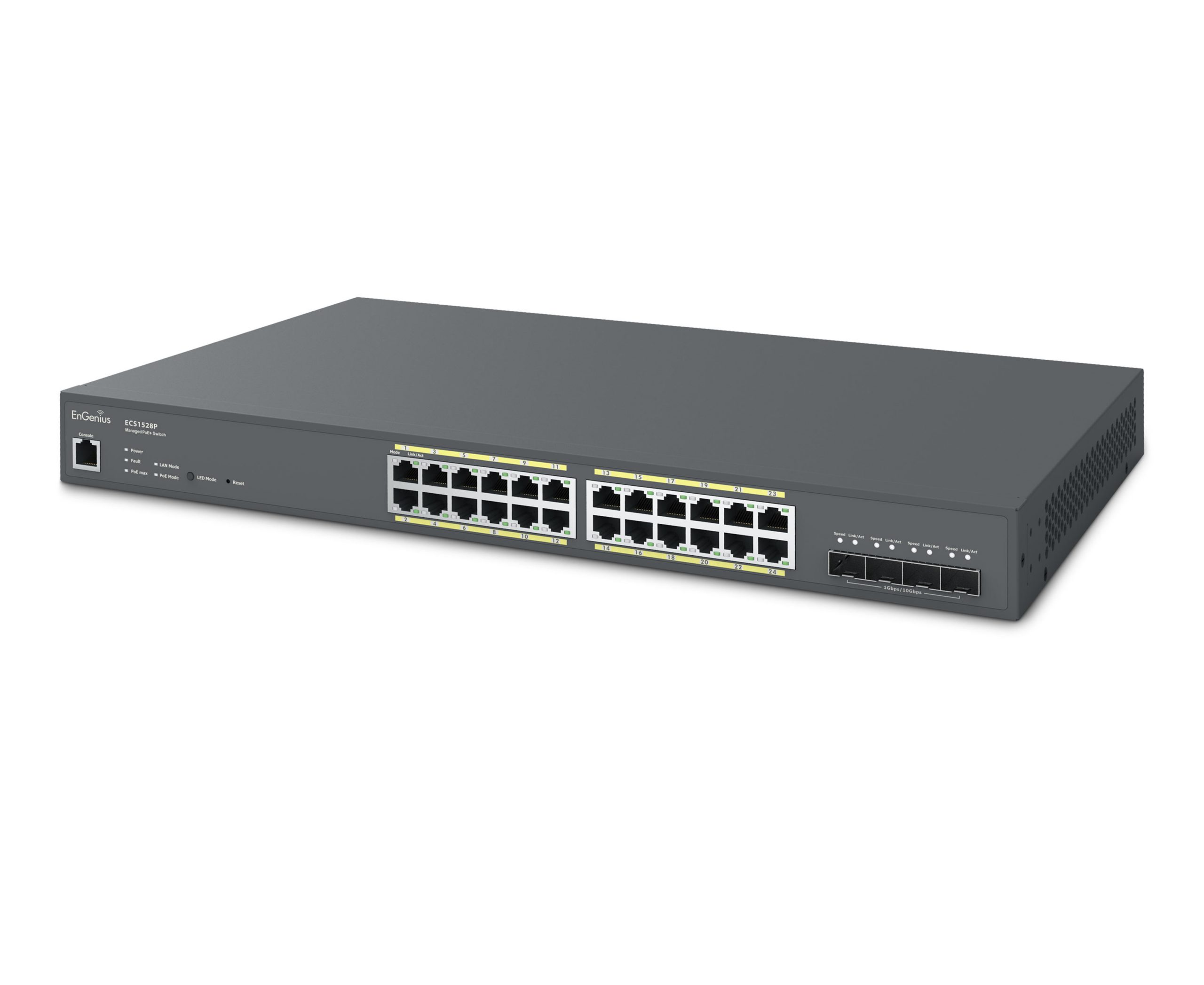

Front Angle

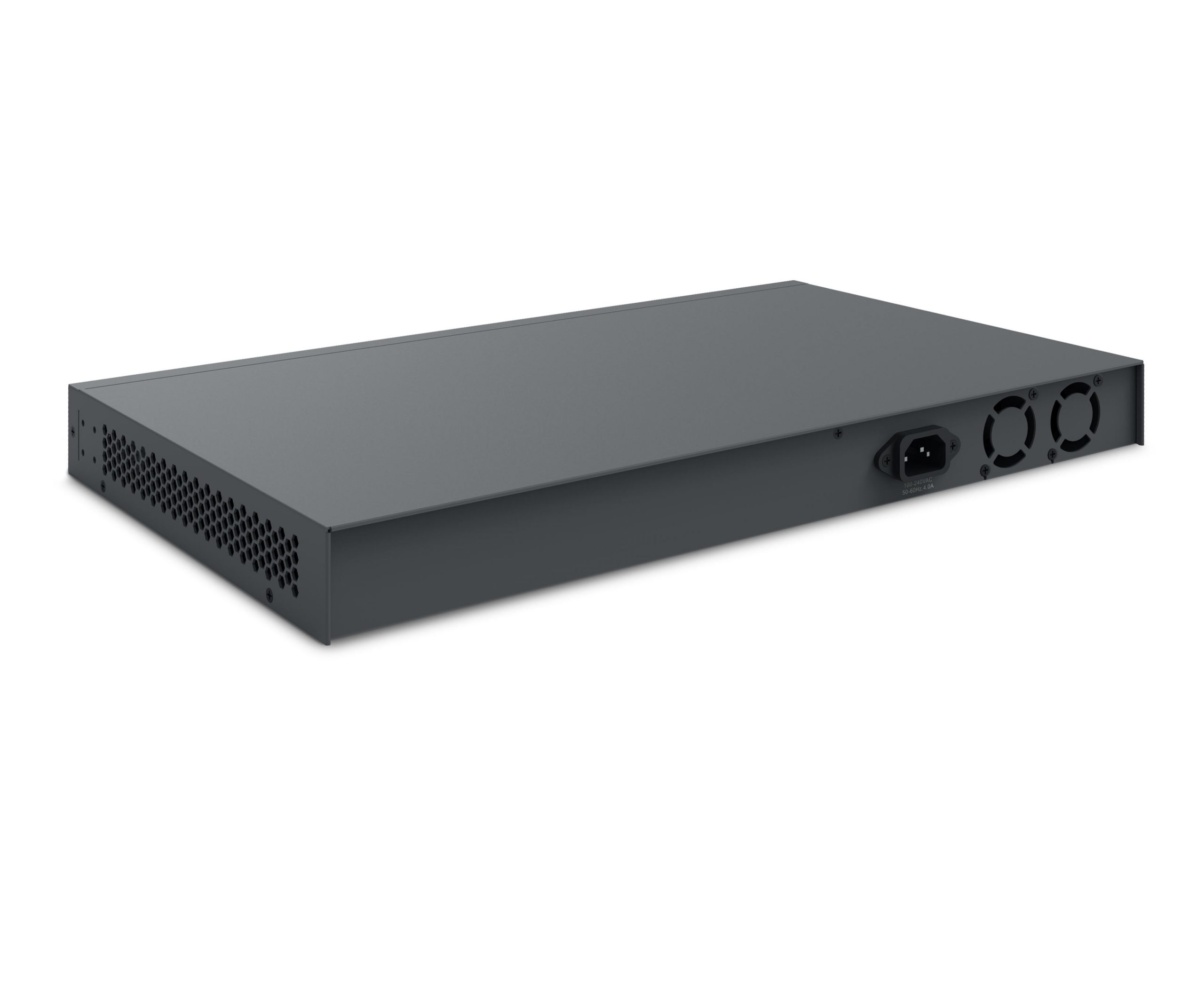

Back Angle

Specifications:

EnGenius ECS1528P Specifications
Port Standards	802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3x Full-Duplex Flow Control
Network Ports	24 10/100/1000 Mbps Ports + 4x SFP+ Ports
Switching Capacity	128Gbps
SDRAM	512MB
Flash Memory	128MB
PoE Capable Ports	1-24
Total PoE Budge	240W
Power Source	100 ~ 240VAC, 50-60Hz
Physical Interface
LED Indicators	Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED
Ports	Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot)
Software Features (L3 Feature)
Multiple IP Interface	20 IPv6 address
ARP Table	Max. 192 ARP entries
Static ARP	Static 192 ARP entries
IPv4 Static Route	Max. 63 entries
IPv6 Static Route	Max. 21 entries
Software Features (L2 Feature)
MAC Address Table	16K
Jumbo Frame	10K
Multicast Group	Max 256 groups
MLD Snooping	MLD Snooping: v1
QoS-Number of Priority Queues Supported	Queue 8
Trust Mode	Cos/802.1p DSCP CoS/802.1p-DSCP
Scheduling Mechanism	Strict / WRR/ Strict + WRR
Bandwidth Control	Port-based bandwidth control (Ingress/ Egress)
Port Security	Max. 256 Entries
Access Control List (ACL)	MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Time base ACL
Web Graphical User Interface (GUI)	HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6
SSL Certificate	Certificate/Key Import
SNMP	SNMP v1/v2c/v3 Support
RMON	RMON 1,2,3,9
System Time	Time Setting/Daylight saving
Common L2 Features	802.1d Spanning tree Loopback Detection Multicast Filtering IGMP Multicast Forwarding IGMP Snooping MLD Multicast Forwarding 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Inspection ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN Protocol-Based VLAN CoS Mapping 802. 1X Radius Authentication Protocol IPv4 Settings IPv6 Settings IEEE 802. 3az Energy Efficient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/Backup Simple Network Time Protocol (SNTP) SYSLOG 802.1d Spanning tree
Environment & Physical
Temperature Range	Operating: 32ºF~122ºF (0 ºC~50 ºC)
Humidity (non-condensing)	Operating: 5% - 95%
Dimensions & Weights Device	Weight: 6.63 Ibs. (3.01 kg) Width: 17.32” (440 mm) Depth: 10.23” (260 mm) Height: 1.73” (44 mm)
Package Contents	1x Cloud Managed Gigabit Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit
Certification	CE, FCC, IC

Documentation:

Download the EnGenius ECS1528P Datasheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.
