EnGenius ECS1528FP
Cloud Managed 24-Port Gigabit 410W PoE+ Switch
Sorry, this product is no longer available, please contact us for a replacement.
More pricing below, click here!
Overview:
Layer 2+ Switch with 4 SFP+ Uplink Ports and Multiple Management Options for SMBs
EnGenius Cloud ECS1528FP, a 24-Port Gigabit PoE+ Layer 2+ Switch with a 410W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.
- Full-featured layer 2+ switching
- 24 10/100/1000 Base-T GbE Ports
- 802.3 at/af PoE+ Ready on All Ports with 410W PoE budget
- 128 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
Available with Hardware v2 and Later
- PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades
Image Gallery:

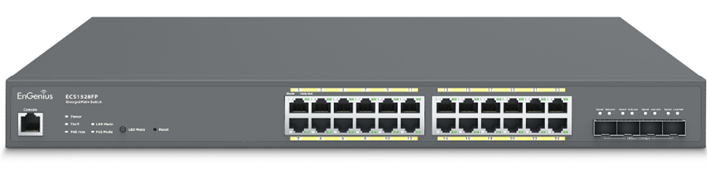

Front-Top

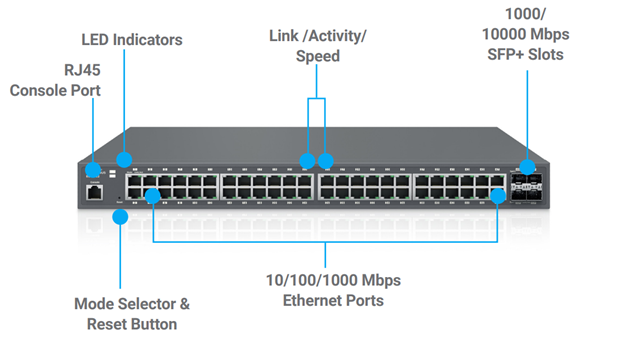

Specifications

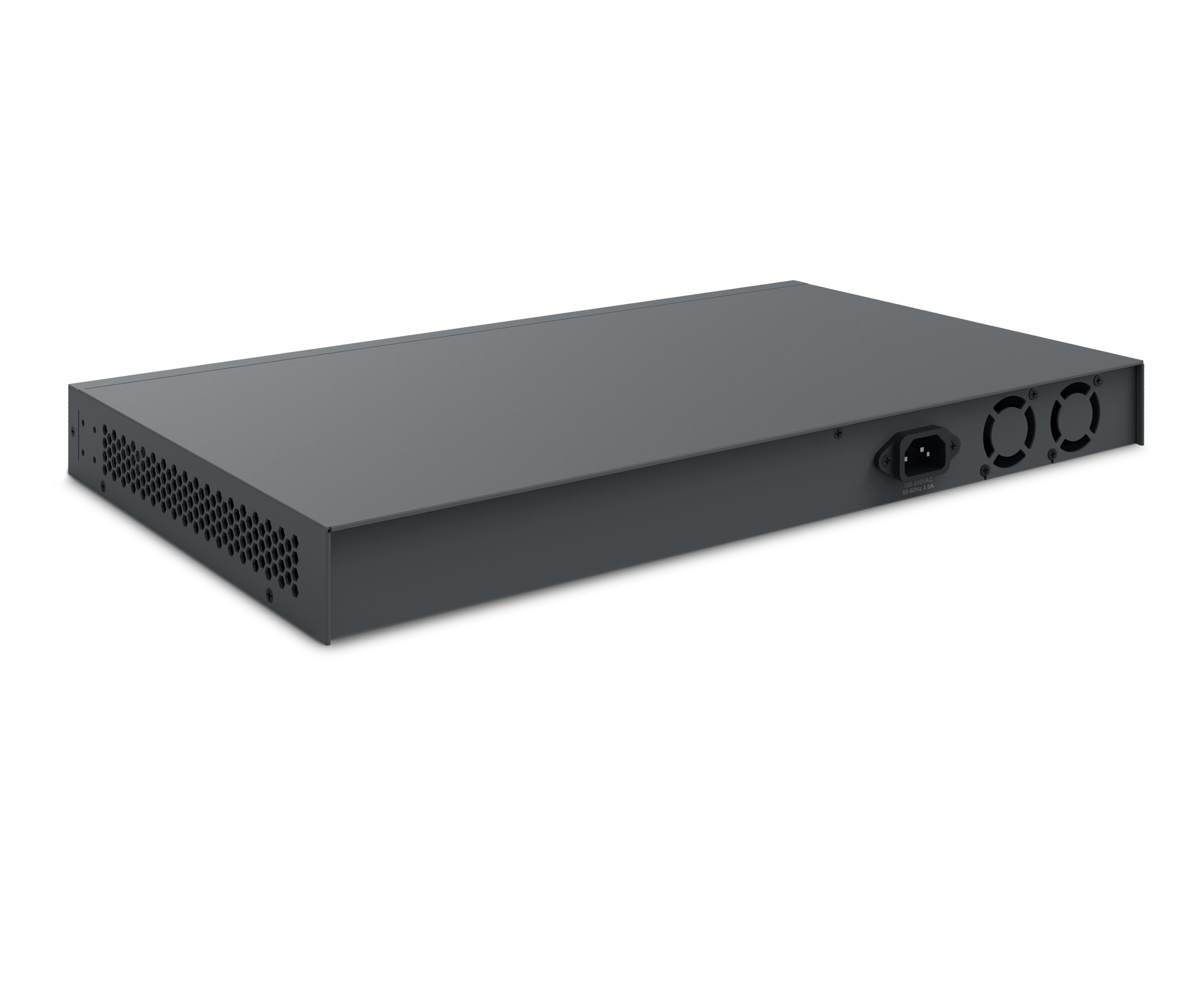

Back Angle

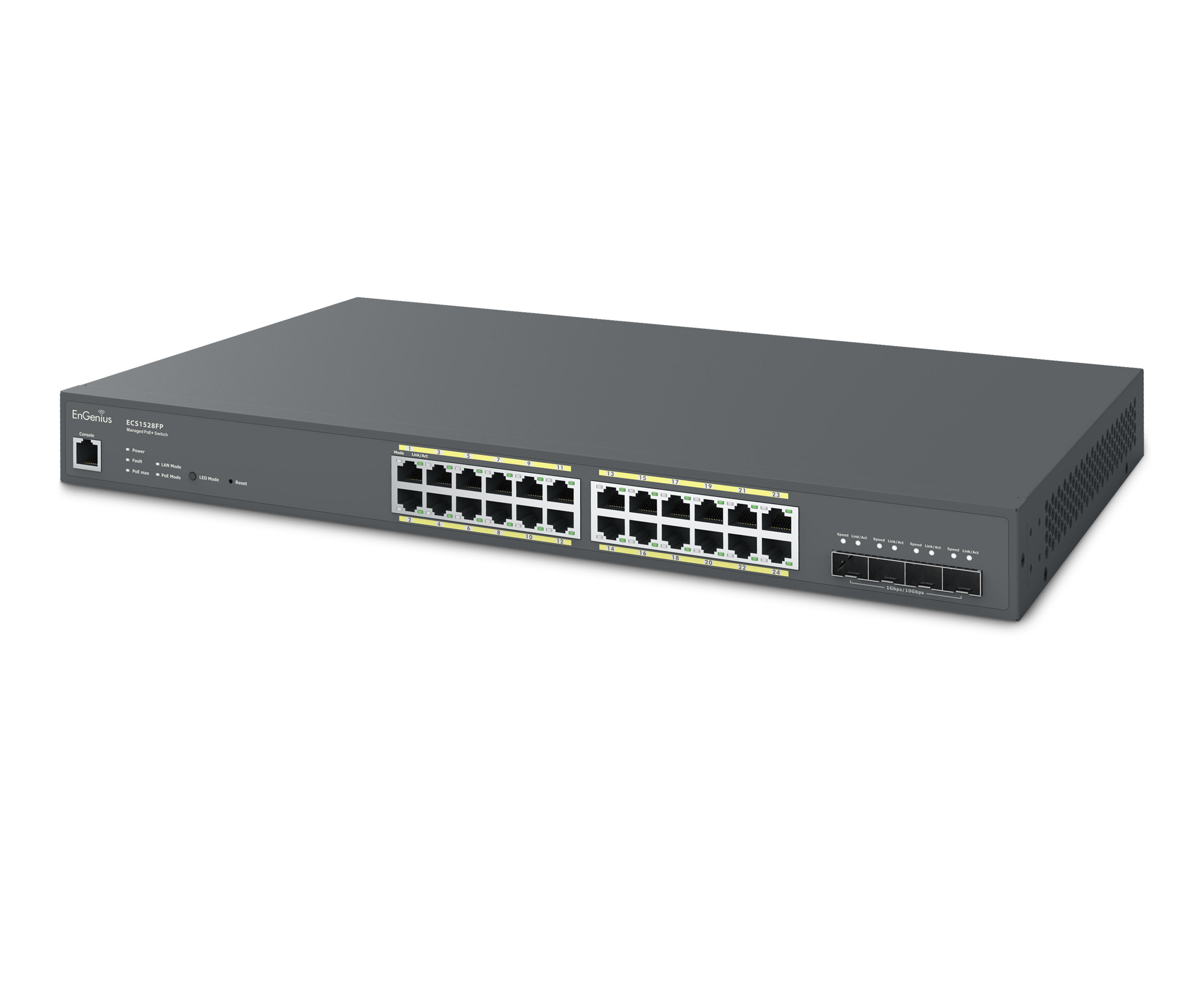

Front Angle
Specifications:
| EnGenius ECS1528FP Specifications | |
|---|---|
| Port Standards | 802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3x Full-Duplex Flow Control |
| Network Ports | 24 10/100/1000 Mbps Ports + 4x SFP+ Ports |
| Switching Capacity | 128Gbps |
| SDRAM | 512MB |
| Flash Memory | 128MB |
| PoE Capable Ports | 1-24 (802.3at/af) |
| Total PoE Budge | 410W |
| Power Source | 100 ~ 240VAC, 50-60Hz |
| Physical Interface | |
| LED Indicators | Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED |
| Ports | Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot) |
| Software Features (L3 Feature) | |
| Multiple IP Interface | 20 IPv6 address |
| ARP Table | Max. 192 ARP entries |
| Static ARP | Static 192 ARP entries |
| IPv4 Static Route | Max. 63 entries |
| IPv6 Static Route | Max. 21 entries |
| Software Features (L2 Feature) | |
| Network Management | EnGenius Cloud Local Web GUI SkyKey ezMaster |
| MAC Address Table | 16K |
| Jumbo Frame | 10K |
| Multicast Group | Max 256 groups |
| MLD Snooping | MLD Snooping: v1 |
| QoS-Number of Priority Queues Supported | Queue 8 |
| Trust Mode | Cos/802.1p DSCP CoS/802.1p-DSCP |
| Scheduling Mechanism | Strict / WRR/ Strict + WRR |
| Bandwidth Control | Port-based bandwidth control (Ingress/ Egress) |
| Port Security | Max. 256 Entries |
| Access Control List (ACL) | MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Time base ACL |
| Web Graphical User Interface (GUI) | HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6 |
| SSL Certificate | Certificate/Key Import |
| SNMP | SNMP v1/v2c/v3 Support |
| RMON | RMON 1,2,3,9 |
| System Time | Time Setting/Daylight saving |
| Common L2 Features | 802.1d Spanning tree Loopback Detection Multicast Filitering IGMP Multicast Forwarding IGMP Snooping MLD Multicast Forwarding 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Inspection ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN Protocol-Based VLAN CoS Mapping 802. 1X Radius Authentication Protocol IPv4 Settings IPv6 Settings IEEE 802. 3az Energy Efficeient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/ Backup Simple Network Time Protocol (SNTP) SYSLOG 802.1d Spanning tree |
| Environment & Physical | |
| Temperature Range | Operating: 32ºF~122ºF (0 ºC~50 ºC) |
| Humidity (non-condensing) | Operating: 5% - 95% |
| Dimensions & Weights Device | Weight: 8.5 lbs. (3.9 kg) Width: 17.32” (440 mm) Depth: 10.23” (260 mm)) Height: 1.73” (44 mm) |
| Package Contents | 1x ECS Managed Gigabit Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit |
| Warranty | 2 Year |
Documentation:
Download the EnGenius ECS1528FP Datasheet (PDF).
