Overview:

Comes with multiple management options for the small business network environment

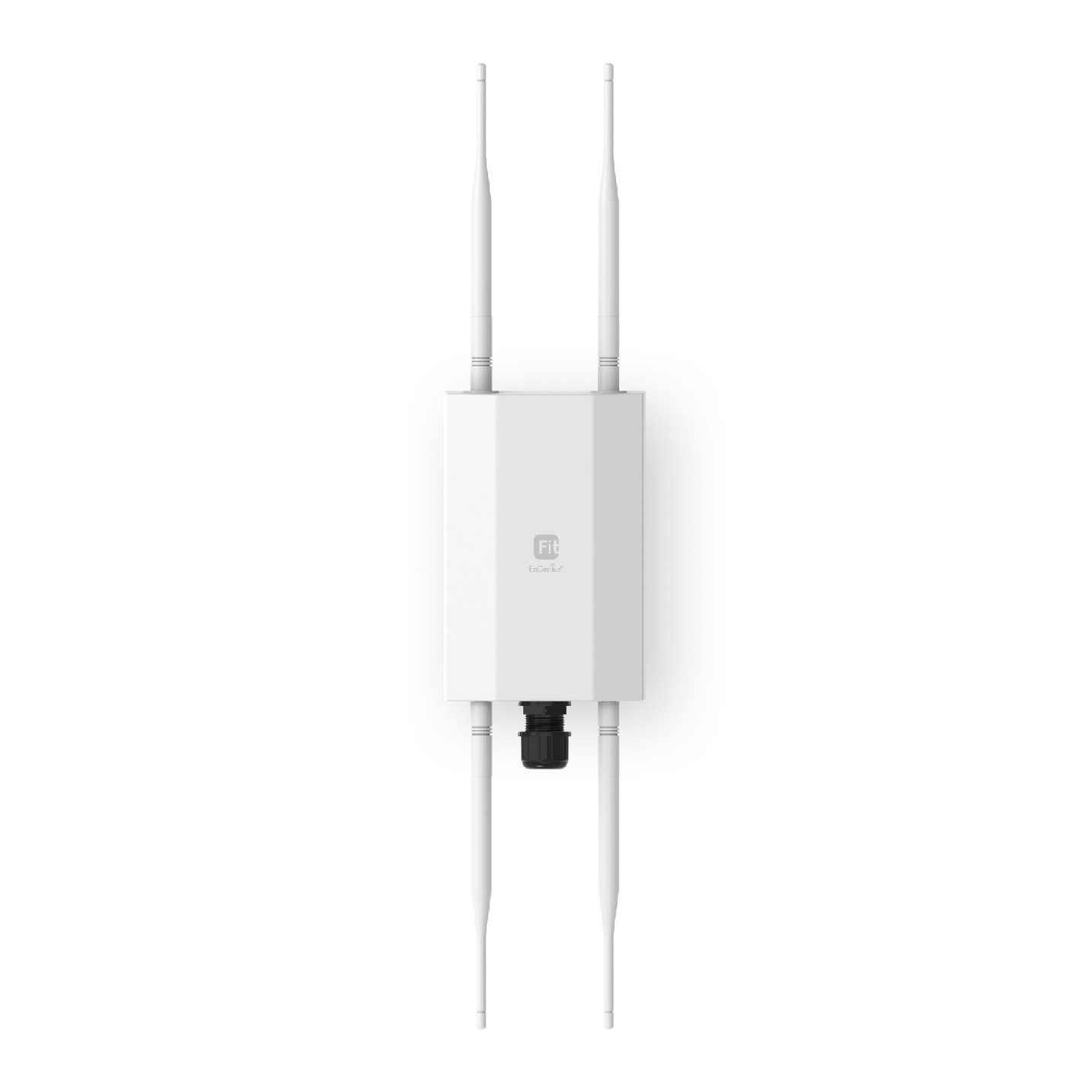

The EnGenius Fit Managed EWS850-FIT, a Wi-Fi 6 (802.11ax) 2x2 IP67 dual-band outdoor wireless access point designed for small business environments and provides maximum speeds of 574 Mbps (2.4 GHz frequency) and 1,200 Mbps (5 GHz frequency). This IP67-rated weatherproof and ruggedized wireless AP can be deployed outdoors. Select cloud or on-premises management options based on network architecture, administrative permissions, and technical aptitude. Business-class features optimize network efficiency ensuring secure, reliable, and high performance while reducing capital and operating expenses for cost-conscious small businesses.

Product Highlights

  • Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 2x2 antenna
  • Supports up to 1,200 Mbps in a 5-GHz frequency band & 574 Mbps in a 2.4-GHz frequency band
  • IP67-rated weatherproof/dustproof housing withstands harsh environments
  • 2.5 GigE PoE+ compatible port for easy placement where power outlets are scarce
  • Select cloud or on-premises management options based on network architecture, administrative permissions
  • From anywhere cloud visibility and control
  • Setup in minutes with app-based step by step instructions
  • Quick-scan device register, remote monitoring and troubleshooting
  • Real-time system metrics, analytics and remote configurations
  • No access point licensing or subscription fees
  • Target wake time for power-saving of client & IoT devices
  • Uplink & downlink of MU-MIMO provides optimal signal and reception for up to 2 devices
  • Uplink and downlink of OFDMA improves transmission to APs and client devices

Manage your network onsite or on-the-go through our FitXpress cloud-based mobile app or web portal. Additionally, FitController gives you greater control of your network using plug-n-play hardware with embedded network management software. Admins can easily view detailed analytics from a single pane of glass as well as monitor and troubleshoot issues instantly.

Specifications:

EnGenius EWS850-FIT Specifications
Standards IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Processor Qualcomm Quad-Core CPU ARM Cortex A53s @ 1.8GHz
Antenna Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna
SMA-Type
Physical Interface 1 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port
LED Indicators 1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power Source Power-over-Ethernet: 802.3af/at
Proprietary 48V – 54V
IEEE 802.11e Compliant Source
Active Ethernet (PoE)
Maximum Power Consumption 15.9 W
Surge Protection 1KV
ESD Protection Contact: 4KVh
Air: 8 KV
Wireless & Radio Specifications
Operating Frequency Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes AP, Mesh
Frequency Radio 2.4GHz: 2400 MHz ~ 2482 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz
Transmit Power 2.4GHz: 23dBm
5GHz: 25dBm
Maximum power is limited by regulatory domain
Tx Beamforming (TxBF) 2x2:2
SU-MIMO Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SUMIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under both the 2.4G Hz and 5GHz radios
MU-MIMO Two (2) spatial streams multiple (MU)-MIMO for up to 1200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously

Two (2) multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously
Supported Data Rates (Mbps) 802.11ax: 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2) and 5 GHz: 18 to 1201 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technology 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization 802.11ax supports high efficiency (HE) —HE20/HE40/HE80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation 2.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Management
Multiple BSSID 8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service) Complaint With IEEE 802.11e Standard
WMM
SNMP v1, v2c, v3
MIB MIB I/II, Private MIB
Wireless Security
  • WPA3-PSK (SAE)
  • WPA3 Enterprise
  • WPA2 Enterprise (AES)
  • WPA2 AES-PSK
  • OWE
  • Hide SSID in Beacons
  • MAC Address Filtering, Up to 32 MACs per SSID
  • Wireless STA (Client) Connected List
  • SSH Tunnel
  • Client Isolation
Environmental & Physical
Environment & Physical Temperature Range Operating: -4F to 140F (-20C to 60C)
Storage: -22°F to 176°F (-30°C to 80°C)
Humidity (non-condensing) Operating: 90% or less
Storage: 90% or less
Waterproof & Dustproof IP67-Rated Enclosure
Device Dimensions & Weights
Device Weight: 1.54 lbs. (0.7 kg)
Width: 4.07” (124 mm)
Length: 7.48” (190 mm)
Height” 2.07” (52.5 mm)
Packaging Weight: 3.96 lbs. (1.8kg)
Width: 9.21" (234 mm)
Length: 11.18" (284 mm)
Height: 5.67" (144 mm)
Package Contents 1 - EWS850-FIT Cloud Managed Outdoor Access Point
1 - Pole-Mounting Brackets
1 - Wall-Mount Screw Set
2 - 2.4GHz 5dBi SMA Antennas
2 - 5GHz 5dBi SMA Antennas
1 - Quick Installation Guide
Certifications FCC, CE, IC
Warranty 1 Year

Documentation:

Download the EnGenius EWS850-FIT Datasheet (PDF).
