EnGenius Fit Wi-Fi 6 4×4 Indoor Wireless Access Point
Powerful and reliable wireless connectivity for small business environments

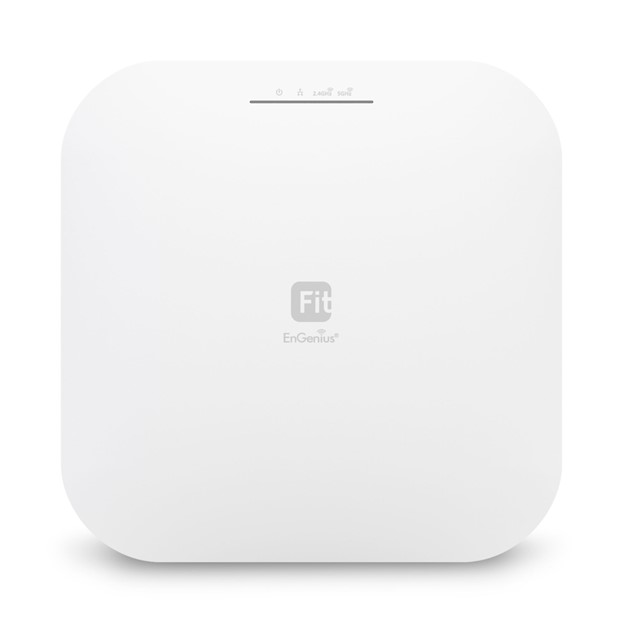

EnGenius EWS377-FIT Product Image

EnGenius Products

EnGenius EWS377-FIT

EnGenius EWS377-FIT
EnGenius EWS377-Fit Wi-Fi 6 4�4 Indoor Wireless Access Point

#EWS377-FIT
Get a Quote!

Get a Quote

More pricing below, click here!

Overview:

Simple • Secure • Smart

The EnGenius Fit Managed EWS377-FIT Wi-Fi 6 4x4 indoor wireless access point is a business-class device that provides secure and reliable high performance while reducing capital and operating expenses for cost-conscious small businesses. With support for the latest 802.11ax technology, this access point is capable of delivering maximum speeds of 1,148 Mbps (2.4 GHz frequency) and 2,400 Mbps (5 GHz frequency). Additionally, it features an easy-to-use web interface for cloud or on-premises management options based on network architecture, administrative permissions, and technical aptitude.

Manage your network onsite or on-the-go through our FitXpress cloud-based mobile app or web portal. Additionally, FitController gives you greater control of your network using plug-n-play hardware with embedded network management software. Admins can easily view detailed analytics from a single pane of glass as well as monitor and troubleshoot issues instantly

Features & Benefits

Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 4x4 antenna
Supports up to 2,400 Mbps in 5-GHz frequency band & 1,148 Mbps in 2.4-GHz frequency band
2.5 GbE realizes greater throughput and supports 802.3at & 48V PoE input for flexible installation over 100 meters (328 feet)
Select cloud or on-premises management options based on network architecture, administrative permissions
From anywhere cloud visibility and control
Setup in minutes with app-based step by step instructions
Quick-scan device register, remote monitoring and troubleshooting
Real-time system metrics, analytics and remote configurations
No access point licensing or subscription fees
Uplink and downlink of OFDMA improves transmission to APs and client devices
Target wake time for power-saving of client & IoT devices
Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices

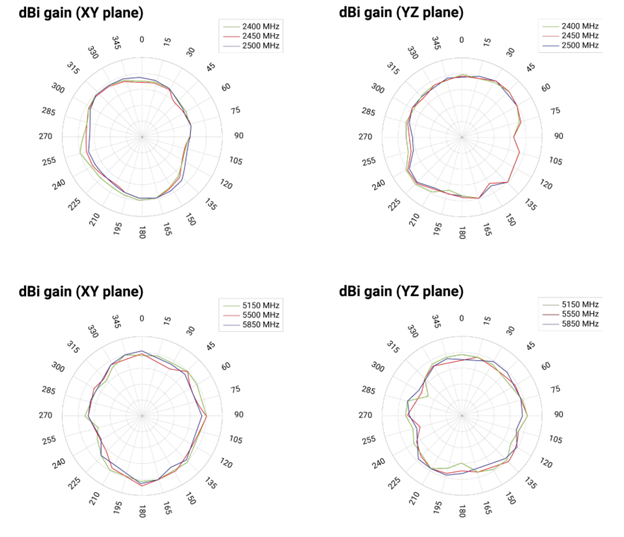

Antenna Patterns:

EnGenius EWS377-FIT Antenna Patterns

Image Gallery:

Front

Front Top

Front Angle

Back

Back Angle

Brackets

Specifications:

EnGenius EWS377-FIT Specifications
Standards	IEEE 802.11ax on 2.4 GHz IEEE 802.11ax on 5 GHz Backward compatible with 802.11a/b/g/n/ac
Processor	Qualcomm® Quad-Core ARM Cortex A53s @ 2.0GHz CPU
Antenna	4 x 2.4 GHz: 5 dBi 4 x 5 GHz: 6 dBi Integrated Omni-Directional Antenna
Physical Interface	1 x 10/100/1000/2500 N-BASE-T, RJ-45 Ethernet Port 1x DC Jack 1 x Reset Button
LED Indicators	1 x Power 1 x LAN 1 x 2.4 GHz 1 x 5 GHz
Power Source	Power-over-Ethernet: 802.3at Input 12VDC /2A
Maximum Power Consumption	19.5W
Wireless & Radio Specifications
Operating Frequency	Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes	AP, Mesh
Frequency Radio	2.4 GHz: 2400 MHz ~ 2482 MHz 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power	Up to 23 dBm on 2.4 GHz Up to 23 dBm on 5 GHz (Maximum power is limited by regulatory domain)
Radio Chains/Spatial Stream	4x4:4
SU-MIMO	Four (4) spatial stream SU-MIMO for 2.4GHz and four spatial stream SU-MIMO for 5GHz up to 3,548 Mbps wireless data rate to a single wireless client device under both the 2.4 GHz and 5GHz radios.
MU-MIMO	Four (4) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. Four (4) multiple (MU)-MIMO for up to 1,148 Mbps wireless data rate to transmit to two streams MUMIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps)	802.11ax: 2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4) 5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 600 Mbps (MCS0 to MCS31) 802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
Supported Radio Technologies	802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization	802.11ax supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation	802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024- QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: BPSK, QPSK, CCK
Management Multiple BSSID	8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging	Supports 802.1q SSID-to-VLAN Tagging Cross-Band VLAN Pass-Through Management VLAN
Spanning Tree	Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)	Complaint With IEEE 802.11e Standard WMM
SNMP	v1, v2c, v3
MIB	I/II, Private MIB
Wireless Security	WPA3 WPA2 Enterprise (AES) WPA2 AES-PSK Hide SSID in Beacons MAC Address Filtering, Up to 32 MACs per SSID Wireless STA (Client) Connected List SSH Tunnel Client Isolation
Environment & Physical Temperature Range
Temperature Range	Operating: 32ºF~104ºF (0 ºC~40 ºC) Storage: -40ºF~176 ºF (-40ºC~80ºC)
Humidity (non-condensing)	Operating: 90% or less Storage: 90% or less
Dimensions & Weights EWS377-FIT Device	Weight: 1.70 lbs. (776 g) Length: 8.27" (210 mm) width: 8.27" (210 mm) Height: 1.31” (33.2 mm)
Packaging	Weight: 2.36 lbs. (1072 g) Length: 9.65” (245 mm) Width: 9.65” (245 mm) Height: 3.35” (85 mm)
Package Contents	1 - EWS377-FIT Cloud Managed Indoor Access Point 1 – Ceiling Mount Base (9/16” Trail) 1 – Ceiling Mount Base (15/16” Trail) 1 – Ceiling and Wall Mount Screw Kits 1 – Quick Installation Guide
Certifications	FCC, CE, IC
Warranty	1 Year

Documentation:

Download the EnGenius EWS377-FIT Indoor Managed Access Points Datasheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.
