EnGenius EWS356-FIT 2×2 Indoor Wireless Wi-Fi 6 AP
Indoor Access Point speeds up to 574Mbps on 2.4GHz and 1200Mbps on 5GHz

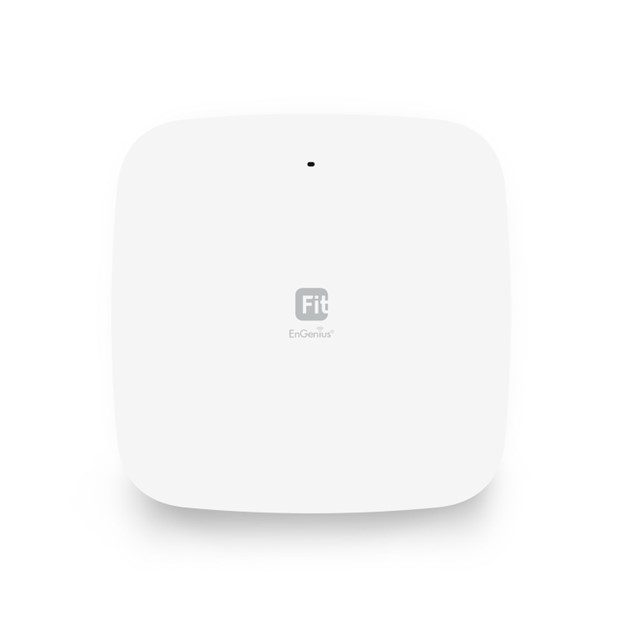

EnGenius EWS356-FIT Product Image

EnGenius Products

EnGenius EWS356-FIT

EnGenius EWS356-FIT
EnGenius EWS356-FIT 2�2 Indoor Wireless Wi-Fi 6 AP

#EWS356
Get a Quote!

Get a Quote

More pricing below, click here!

Overview:

Simple • Secure • Smart

The EnGenius Fit Managed EWS356-FIT Wi-Fi 6 2x2 indoor wireless access point is a business-class device that provides secure and reliable high performance while reducing capital and operating expenses for cost-conscious small businesses. With support for the latest 802.11ax technology, this access point can deliver maximum speeds of 574 Mbps (2.4 GHz) and 1200 Mbps (5 GHz). Additionally, it features an easy-to-use web interface for cloud or on-premises management options based on network architecture and technical aptitude.

Features & Benefits

Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 2x2 antenna
Supports up to 1,200 Mbps in 5-GHz frequency band & 574 Mbps in 2.4-GHz frequency band
Select cloud or on-premises management options based on network architecture, administrative permissions
From anywhere cloud visibility and control
Setup in minutes with app-based step by step instructions
Quick-scan device register, remote monitoring and troubleshooting
Real-time system metrics, analytics and remote configurations
No access point licensing or subscription fees
Uplink and downlink of OFDMA improves transmission to APs and client devices
Target wake time for power-saving of client & IoT devices
Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices
BSS coloring for tagging packets with a “color” to differentiate between adjacent basic service sets

Image Gallery:

Front

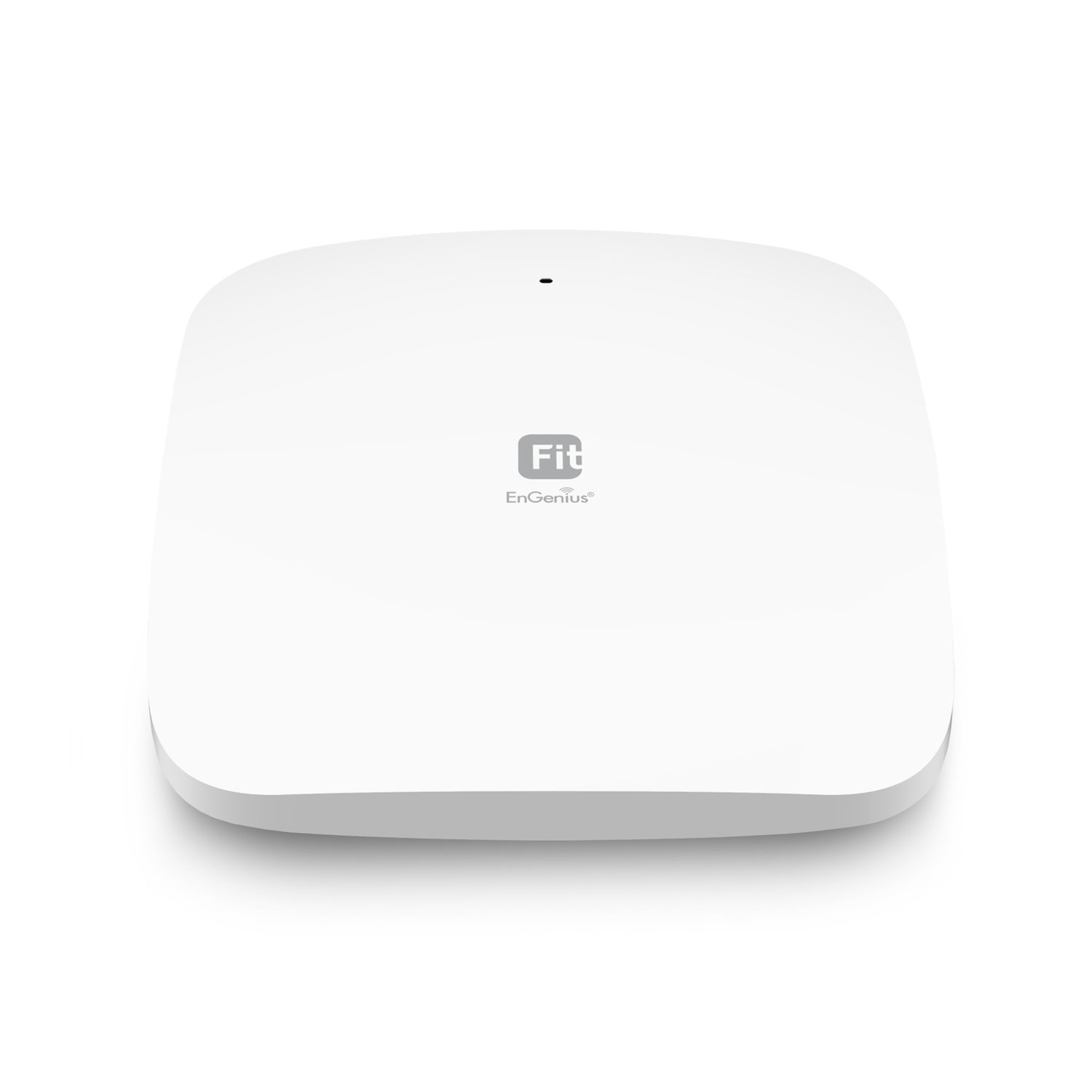

Front Top

Back

Back Angle

Specifications:

EnGenius EWS356-FIT Specifications
Standards	IEEE 802.11ax on 2.4 GHz IEEE 802.11ax on 5 GHz Backward compatible with 802.11a/b/g/n/ac
Processor	Qualcomm® Quad-Core ARM Cortex A53s @ 1.0GHz CPU
Antenna	2 x 2.4 GHz: 4 dBi 2 x 5 GHz: 5 dBi Integrated Omni-Directional Antenna
Physical Interface	1 x 10/100/1000/2500 N-BASE-T, RJ-45 Ethernet Port 1x DC Jack 1 x Reset Button
LED Indicators	1 x Colors LEDs
Power Source	Power-over-Ethernet: 802.3at Input 12VDC /2A
Maximum Power Consumption	17.4W
Wireless & Radio Specifications
Operating Frequency	Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes	AP, Mesh
Frequency Radio	2.4 GHz: 2400 MHz ~ 2482 MHz 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power	Up to 21 dBm on 2.4 GHz Up to 21 dBm on 5 GHz)
Radio Chains/Spatial Stream	2x2:2
SU-MIMO	Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SU-MIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under both the 2.4G Hz and 5GHz radios.
MU-MIMO	Two (2) spatial streams Multiple (MU)-MIMO for up to 1200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. Two (2) multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps)	802.11ax: 2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4) 5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies	802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization	802.11ax supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation	802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024- QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: BPSK, QPSK, CCK
Management Multiple BSSID	8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging	Supports 802.1q SSID-to-VLAN Tagging Cross-Band VLAN Pass-Through Management VLAN
Spanning Tree	Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)	Complaint With IEEE 802.11e Standard WMM
SNMP	v1, v2c, v3
MIB	I/II, Private MIB
Wireless Security	WPA3 WPA2 Enterprise (AES) WPA2 AES-PSK Hide SSID in Beacons MAC Address Filtering, Up to 32 MACs per SSID Wireless STA (Client) Connected List SSH Tunnel Client Isolation
Environment & Physical Temperature Range
Temperature Range	Operating: 32ºF~104ºF (0 ºC~40 ºC) Storage: -40ºF~176 ºF (-40ºC~80ºC)
Humidity (non-condensing)	Operating: 90% or less Storage: 90% or less
Dimensions & Weights EWS356-FIT Device	Weight: 0.83 lbs. (380 g) Length: 6.30" (160 mm) width: 6.30" (160 mm) Height: 1.18" (30 mm)
Packaging	Weight: 1.10 lbs. (500 g) Length: 10.35" (263 mm) Width: : 6.41" (163 mm) Height: 1.49" (38 mm)
Package Contents	1 - EWS356-FIT Cloud Managed Indoor Access Point 1 – Ceiling Mount Base (9/16” Trail) 1 – Ceiling Mount Base (15/16” Trail) 1 – Ceiling and Wall Mount Screw Kits 1 – Quick Installation Guide Mobile App QR Code
Certifications	FCC, CE, IC
Warranty	1 Year

Documentation:

Download the EnGenius EWS356-FIT Indoor Managed Access Points Datasheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.
