EnGenius ECS2510FP
Cloud Managed 8 Port Switch 240W PoE+ Multi-Gigabit 2.5 Gb w/ 2 SFP+ Uplink Ports

EnGenius ECS2510FP Product Image

EnGenius Products
EnGenius ECS2510FP
EnGenius ECS2510FP
Cloud Managed 8 Port Switch 240W PoE+ Multi-Gigabit 2.5 Gb w/ 2 SFP+ Uplink Ports
Get a Quote!

More pricing below, click here!


Multiple management options for large businesses to easily configure, monitor, and manage

The EnGenius Cloud ECS2510FP 8-port multi-gigabit (2.5G) layer 2+ PoE+ (802.3at/af) switch with 240W budget and 2 SFP+ (10G) uplink ports offering multiple management options and can easily be configured, monitored, and managed. The ECS2510FP is ideal for powering IP cameras, VoIP phones, and access points in large businesses.

  • 8 10/100/1000/2500 Base-T GbE ports
  • Full-featured layer 2+ switching
  • 802.3af/at PoE+ capable on all ports with a 240W PoE budget
  • 120 Gbps switching capacity
  • 2 10-gigabit dual-speed SFP+ (fiber) uplink ports
  • Real-Time system metrics, deep-dive analytics, and remote configurations
  • Quick-scan device register, remote monitoring, and troubleshooting
  • Advanced view displays network topology with devices and relationships
  • Hybrid switch supports multiple management options
  • Security - Access Control List/Port Security; 802.1X & RADIUS Authentication
  • IGMP & MLD snooping provides advanced multicast filtering & network efficiency
  • 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing
  • Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
  • Voice VLAN for fast, reliable deployment of VoIP services

Image Gallery:

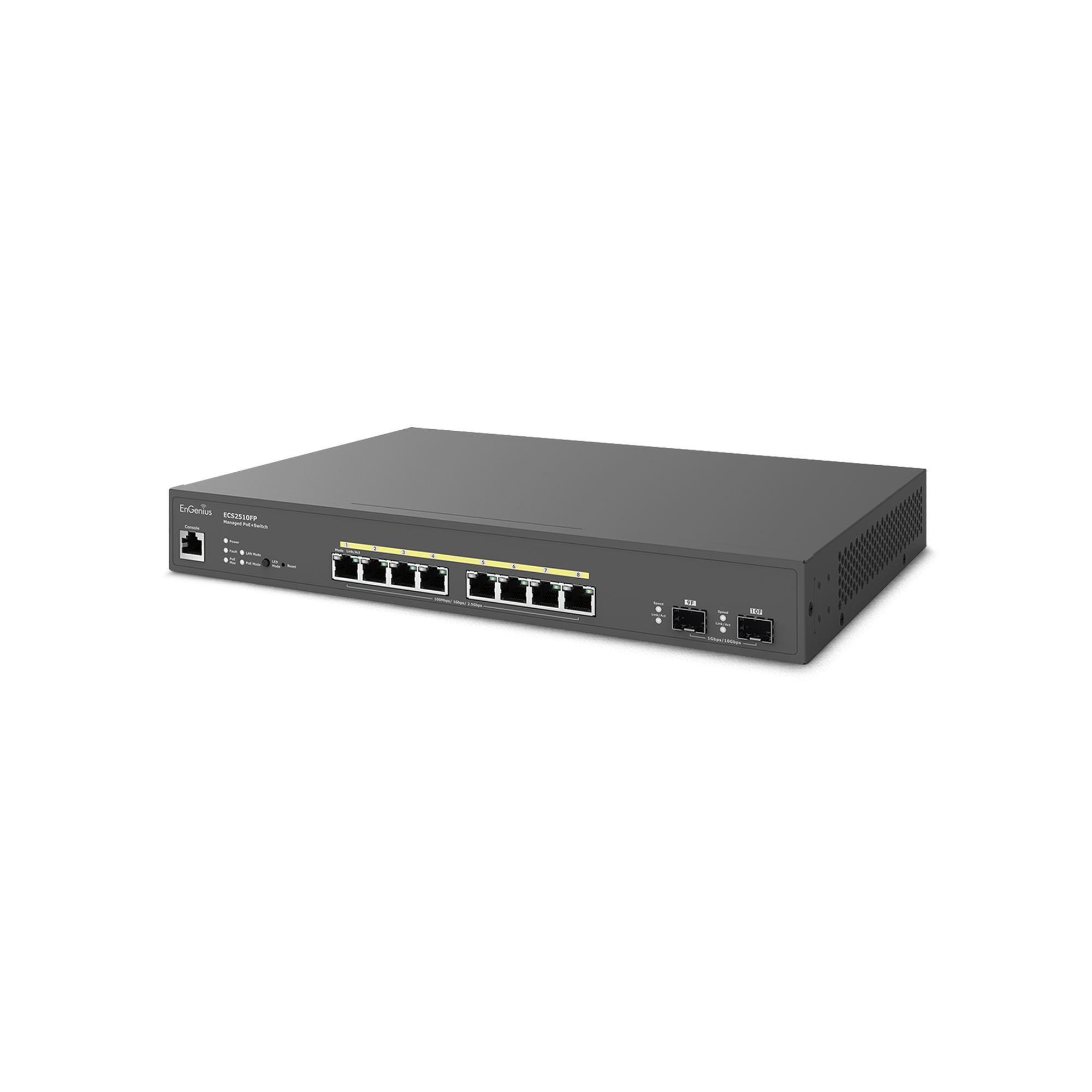

Front Angle

Back Angle


EnGenius ECS2510FP Specifications
Port Standards 802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports 8 10/100/1000/2500 Mbps Ports
2 SFP+ Ports
Switching Capacity 120Gbps
Flash Memory 128MB
PoE Capable Ports 1-8 (802.3 af/at)
Total PoE Budge 240W
Power Source 100 ~ 240VAC, 50-60Hz
Physical Interface
LED Indicators Power LED
Fault LED
PoE Mode LED
Ports Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
Software Features (L3 Feature)
Multiple IP Interface 20 IPv6 address
ARP Table Max. 192 ARP entries
Static ARP Static 192 ARP entries
IPv4 Static Route Max. 63 entries
IPv6 Static Route Max. 21 entries
Software Features (L2 Feature)
Network Management EnGenius Cloud
Local Web GUI
MAC Address Table 16K
Jumbo Frame 9K
Multicast Group Max 256 groups
MLD Snooping MLD Snooping: v1
QoS-Number of Priority Queues Supported Queue 8
Trust Mode Cos/802.1p
Scheduling Mechanism Strict / WRR/ Strict + WRR
Bandwidth Control Port-based bandwidth control (Ingress/ Egress)
Port Security Max. 256 Entries
Access Control List (ACL) MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
Web Graphical User Interface (GUI) HTTP IPv4 / IPv6
SSL Certificate Certificate/Key Import
SNMP SNMP v1/v2c/v3 Support
RMON RMON 1,2,3,9
System Time Time Setting/Daylight saving
Common L2 Features 802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC
Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
802.1d Spanning tree
Environment & Physical
Temperature Range Operating: 32ºF~122ºF (0 ºC~50 ºC)
Humidity (non-condensing) Operating: 5% - 95%
Dimensions & Weights Device Weight: 5.7Ibs (2.6 kg)
Length: 9.05” (230 mm)
LeWidth: 12.99” (330 mm)
Height: 1.73” (44 mm)
Package Contents 1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
Warranty 2 Year
Certifications CE, FCC, IC


Download the EnGenius ECS2510FP Datasheet (PDF).
