EnGenius DuraFon UHF
Long-Range Multi-Line, Expandable, Cordless Phone System
EnGenius Products
EnGenius DuraFon UHF
More pricing below, click here!
Overview:

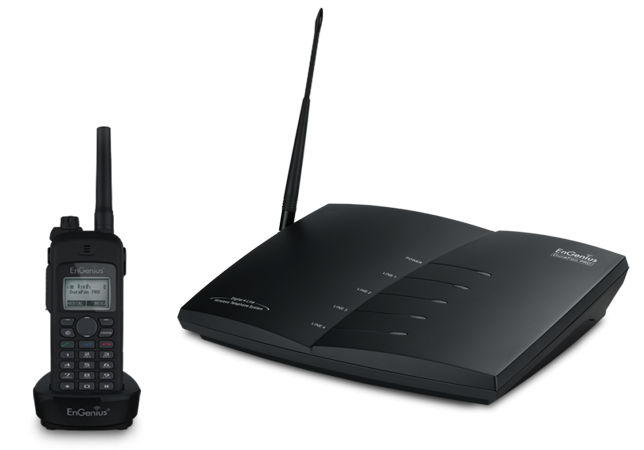

The DuraFon-UHF long-range wireless phone system is perfect for businesses that require staff members to cover large areas, up to 12 floors; 250,000 sq. ft.; or 3,000 acres. The package includes a multi-line base and one UHF handset. DuraFon-UHF Handsets can also communicate with third party UHF radios.
Product Highlights
- Long Range, up to 12 Floors, 250,000 sq. ft.; or 3,000 Acres
- Supports up to 90 Handsets
- Expandable From 4–32 Lines
- UHF Long-range Phone & Two-Way Radio
Long-Range Cordless Phone and UHF 2-Way Radio Handset
The dual-mode radio phone, DuraFon-UHF-HC Handset is the industry’s only durable, long-range cordless phone with a UHF 2-way radio that allows communication with both UHF 2-way radios and phone users. The DuraFon-UHF-HC Handset works with a DuraFon PRO Base Unit (purchase separately) to provide the telephone line connection. It’s ideal for employees that need to make and receive calls and want the added convenience of communicating with other personnel using UHF 2-way radios in the area.
Ideal Users:
Benefiting from the dual function of phone and UHF 2-way radio, the DuraFon-UHF-HC Handset is an exceptional device for these environments and users:
- Retail / Grocery Stores (Managers, Cashiers, Loss Prevention)
- Restaurants (Hostesses, Managers, Cashiers)
- Hotels / Motels (Managers, Front Desk Staff, Bell Hops, Security)
- Schools (Administrators, Safety Monitors, Coaches)
- Theaters (Security, Managers, Customer Service)
- Family Entertainment Centers (Managers, Security)
- Warehouses / Mfgrs (Managers, Leads)
- Event Venues (Event Coordinators, Managers, Directors)
- Religious Venues (Coordinators, Assistants)
Features & Benefits:
On-Premises Mobility for Managers and Staf
- Exceptional Coverage of Up to:
- 250,000 sq. ft. (Retail/Warehouse)
- 12 Floors of Penetration (In-Building)
- 3,000 Acres (Open Land)
Single Handset for Communication Flexibility
- No Need to Carry Both a Phone and a 2-Way Radio, a Single Handset Offers:
- UHF 2-Way Radio
- Long-Range Cordless Phone
- Private Intercom between DuraFon Base Registered Handsets
Easy Integration and Deployment
- Compatible with:
- Motorola CLS / CLP UHF Radios
- Analog Phone Lines or PBX Ports
Durable and Reliable Handset
- Handset is Ready for Demanding Environments:
- Drop-Tested
- IP55 Ingress Protection Rated
- FCC Certified
- 1 Year Factory Limited Warranty
Itemized Features and Functionality
- UHF 2-Way Radio Function
- 902~928MHz Telephone Function
- Push-to-Talk (PTT)
- Phone Book: 90 Entries
- Soft Menu Key
- H/S Speakerphone
- Broadcast
- Intercom
- Key Guard
- 3 Call Log Types
- 4-Line LCD Display
- Call-on-Hold
- Rapid Charging
- Mute
- Call Manager
- Any Key Answer
- Feature Call: 10
- Adjustable Flash Time
- 2.5mm Headset Jack
- Ringer/Vibrator
Flexible, Dual-Mode Radio Phone Communications
- DuraFon Telephone
The DuraFon-UHF-HC Handset offers long-range cordless telephone communications to make and receive both internal and external calls through a DuraFon PRO Base Unit (purchased separately). - DuraFon Exclusive Private Intercom
The DuraFon-UHF-HC Handset provides private handset-to-handset communications independent of the Base Unit to another specific DuraFon Handset. - DuraFon Exclusive Group Broadcast
DuraFon-UHF-HC Handsets have the ability to broadcast to other DuraFon Handsets that have joined a communication group. - 2-Way Radio UHF Broadcast
DuraFon-UHF-HC Handset offers “Push-to-Talk” through the Handset’s Broadcast button, allowing users to instantly broadcast to all Motorola CLS / CLP and DuraFon-UHF-HC Handset users.
Flexible, Multi-Mode Communications
- Durable, Ruggedized Design
The DuraFon-UHF-HC durable, rugged Handset is designed for use in harsh environments and is IP55-rated for protection against dust and water. Tested to withstand 4-foot drops over 50 consecutive times onto concrete floors, the proven durability of EnGenius DuraFon Handsets ensure the phones will survive in the most challenging environments even when subjected to drops and shocks. - Superior Long-Range Performance
DuraFon-UHF-HC implements a high-powered 900 MHz proprietary air protocol, with high RF transmission and sensitivity to provide superior range and coverage for the industrial market; covering up to 250,000 sq. ft. indoors, 3,000 acres outdoors and penetrating up to 12 floors. - Highly Secure
Adopting 900 MHz (902~928 MHz) FHSS (Frequency Hopping Spread Spectrum) technology, the DuraFon-UHF-HC ensures a high level of privacy during conversations. - Single Cell Technology Minimizes Equipment Needs, Saves Money
Designed to simplify deployment, the DuraFon-UHF-HC features single cell technology that leverages a single 900 MHz Base Station for long-range coverage, eliminating the need for added Base Stations or repeaters, helping companies lower their capital expenses through faster deployment. - 10-Years of Trusted Reliability
The DuraFon-UHF-HC shares the trusted, proven durability of the popular DuraFon Series with over 10 years of continued innovation and testing that ensures the Handsets will survive in even the most challenging environments. - Operates Independently of Wi-Fi Networks
DuraFon-UHF-HC avoids adding traffic over Wi-Fi networks, which means there’s no need to worry about roaming or QoS issues that are typical with voice communications on a WLAN.
Specifications:
| EnGenius DuraFon UHF Specifications | ||
|---|---|---|
| Electrical Specs | PRO-BU Base Unit | UHF-HC Handset |
| Frequency | 902 - 928 MHz | 902-928 MHz (Phone Mode) UHF 461- 469.5 (Radio Mode) |
| RF Power | Peak: 708 mW Average: 304 mW |
Peak: 800 mW Average: 100 mW (Phone Mode) |
| Channel Spacing | 200 kHz | 200 kHz (Phone Mode) 12.5 kHz (Radio Mode) |
| Number of Channels | 128 | 50 (Phone Mode) 5 (Radio Mode, UHF) 1 (Radio Mode, 900mHz) |
| Modulation | MSK | MSK |
| Multiple Access | Freq. Hopping TDMA | Frequency Hopping TDMA (Phone Mode) |
| Freq. Hopping Rate | 100 per second | 100 per second (Phone Mode) |
| TDMA Frame Length | 10 ms | 10 ms (Phone Mode) |
| Number of Talk Paths | 4 per base (32 max) | 4 per base (32 max) |
| Reciever Sensitivity | < -108 dBm (@ BER 0.01) | < -109 dBm (@ BER 10-2) (Phone Mode) |
| Antenna Connector | Reverse TNC | RP-SMA |
| Antenna Gain | 2 dBi 5 dBi Enternal (Optional) |
2 dBi (Phone Mode) 0 dBi (UHF Radio Mode) |
| TX Power Control Range | N/A | 800 mW (Phone Mode) 1 W (UHF Radio Mode) |
| Telephone Interface | RJ11 x 4 | N/A |
| VoIP Interface | N/A | N/A |
| Default IP Address | N/A | N/A |
| Default User Name & Password | N/A | N/A |
| SIP Protocol | N/A | N/A |
| Speech Coding | 8 kbps G.729A | 8 kbps G.729A |
| Channel Coding | 8 kbps Convolutional + CRC | 8 kbps Convolutional + CRC |
| Transmission Data Rate | 170.678 kbps | 170.667 kbps |
| User Data Rate | 128 kbps duplex | 128 kbps duplex |
| Duplex | Time Division Duplex (TDD) | Time Division Duplex (TDD) |
| Voice Quality | TIA / EIA -470B | TIA / EIA -470B |
| Number of System ID | 65,536 | 65,536 |
| Ring Signal | N/A | N/A |
| Auto-Attendant Coding | N/A | N/A |
| Flash Time | N/A | 100-900 ms Programmable |
| Power Source | 3.6V 1700mAh Li-ion Battery | 3.7V, 2300 mAh Li-ion Battery |
| Charger Current | 500 mA | 850 mA |
| Charge Time | 4 Hours (from empty) | 4 Hours (From Empty) |
| Battery Talk & Standby Time | 6 Hours/ 50 Hours | 90 Hours (Walkie off) 27 Hours (Walkie Mode, 5/5/90) |
| Physical Interface | PRO-BU Base Unit | UHF-HC Handset |
| Buttons | End/Power Left & Right Soft Keys Up & Down Scrolling Keys Broadcast Talk/Speakerphone Intercom/2-Way 0 – 9, # |
Power/Volume Knob Left & Right Soft Keys Up & Down Scrolling Keys Speakerphone Mode Talk/Flash Intercom/2-Way End Push to Talk 0 – 9, # |
| Jacks (on charging cradle) | Travel Charger Headset (2.5 mm) |
Travel Charger Headset (2.5 mm) |
| LED Indicators | N/A | Walkie Spare Battery Charging Indicator |
| Environmental Specs | PRO-BU Base Unit | UHF-HC Handset |
| Regulation Compliance | FCC Part 15, Part 68 CAN/DOC RSS210, CS03 |
FCC Part 15, Part 68; RSS-210, CS03 (Phone Mode); FCC Part 90 (Walkie Mode) |
| Operating Temperature | -14 – 140°F (-10 – 60°C) | 14 – 140°F (-10 – 60°C) |
| Storage Temperature | 14 – 158°F (-10 – 70°C) | 14 – 158°F (-10 – 70°C) |
| Humidity | 20 - 75% | 20 - 75% |
| IP Rating | IP 42 | IP 55 |
| Dimension without Antenna | 2.28" x 1.22" x 6.34" (58 x 31 x 161 mm) | 5.59” x 2.36” x 1.49” (142 x 60 x 38 mm) |
| Weight | 0.39 lbs. (175g) | 0.39 lbs. (175g); 0.56 lbs. (257g) Incl. Battery |
| UHF-HC 2-Way Radio Mode | |
|---|---|
| General | Range Coverage 200,000 sq. ft./ 18.580 sq. m. |
| PL Codes | 38 |
| DBL Codes | 83 |
| Average Battery Life @ 5/5/90 | 14 Hours |
| Transmitter | RF Output (Conducted into 50 Ohms) 1.0 Watts |
| Frequency Stability | < 2.0 ppm |
| Spurs & Harmonics | < -45 dBc |
| Modulation Limiting @ 12.5kHz | ± 2.5kHz |
| Adjacent Channel Power | 60dBc |
| Radiated Spurious Emissions @ 12.5kHz | < -20dbm |
| Audio Frequency Response (0.3 - 3.0 kHz) | +1 to -3 dB |
| Audio Distortion | < 2% |
| Receiver | Receiver Sensitivity (12 dB SINAD) -122 dBm |
| Adjacent Channel Selectivity @ 12.5kHz | 60 dB |
| Intermodulation Rejection | 55 dB |
| Spurious Response Rejection (blocking 1MHz) | 75dB |
| Audio Distortion | < 5% |
| Radiated Spurious Emissions (< 1GHz) | 1GHz) < -52 dBm |
| Audio Output @ <5% Distortion | 0.5W @ 8 ohms |

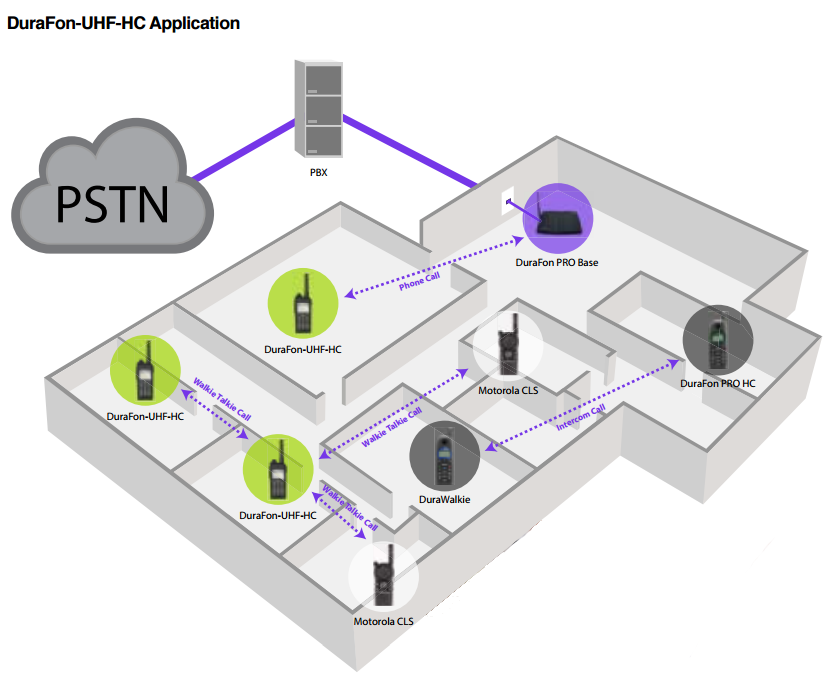

Diagram:

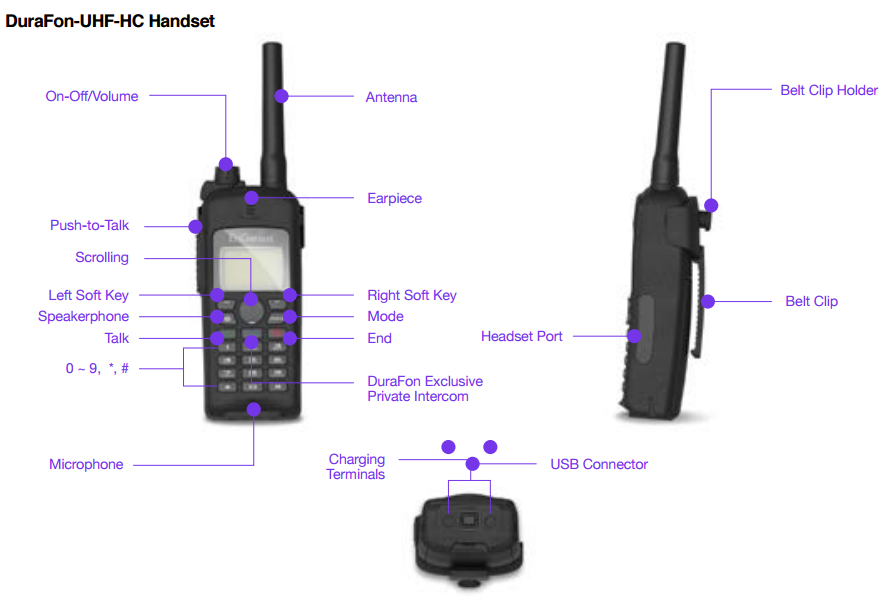

Views:
Documentation:
Download the EnGenius DuraFon UHF-HC Datasheet (PDF).
