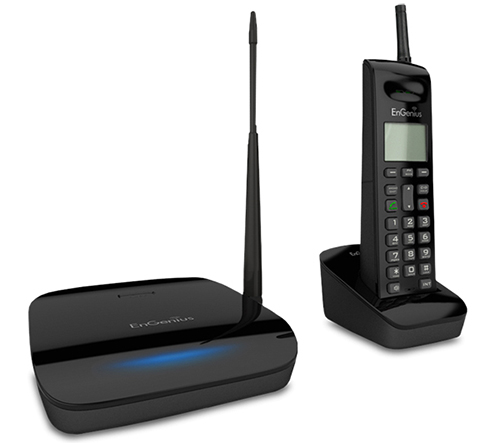

EnGenius FreeStyl 2
Extreme Range Scalable Cordless Phone System.
More pricing below, click here!
Overview:
The FreeStyl 2 is a scalable 900 MHz cordless phone system designed to provide users with unparalleled wireless coverage over long distances and in complex, multi-floor environments. The FreeStyl2 combines a sleek design, robust and powerful technology, and an array of key features that make it perfect for use in offices and large home estates.
The easy-to-use FreeStyl 2 system delivers significantly more range than typical DECT and Wi-Fi phone systems. The system can operate as a standalone system or as a long-range cordless analog extension to a PBX phone system. Offering exceptional wireless range, this phone provides clear, reliable phone and two-way intercom communication indoors. This extensive wireless range provides coverage through as many as six floors or covering up to 25,000 square feet.
A Scalable Premises Wireless solution — Each FreeStyl 2 base station supports up to 9 individual FreeStyl 2 handsets. Each handset includes its own charging station. The new FreeStyl 2 system is ideal for businesses with employees who roam beyond the confines of their offices or cubicles, or for expansive properties such as resorts, and luxury estates for users who do not require our rugged DuraFon, but prefer something with a little more stylish.
FreeStyl 2 system works well with:
- Additional FreeStyl2 handsets
- FreeStyl2 long optimal antenna assembly for handset
Extreme Range Coverage
Up to 25,000 sq. ft. of facility coverage, up to 6 floors in-building penetration.
Outperforms 2.4 or 5.8GHz DECT solutions
High power/high sensitivity coverage penetrates concrete, wood and drywall.
Scalable cordless phone system
The one line system is expandable to 9 total handsets.
Versatile operation function
Multi-functional cordless system offers Walkie talkie like point-to-point communication that operates independent of the base station. This phone is able to broadcast to multiple handsets from any handset.
Business friendly feature
Simultaneous broadcast to multiple handsets from any handset. Plug directly to a phone jack on the wall or plug directly to an analog port of a PBX.
Auto Attendant
Call redirect assistance.
No Recurring Costs
No Subscriber contracts – (unlike cellular or 2-way radio licensing). No Monthly service charges or fees – (unlike cellular and phone companies).
Key Features
- 1-Line Phone System
- Supports up to 9 simultaneous handsets (sold separately)
- Extreme wireless range up to: 6 floors, 25,000 sq. ft. in warehouses, and 10 acres in open areas
- Speakerphone in handset
- 2-Way intercom
- Broadcast to multiple handsets from any handset
Specifications:
| EnGenius FreeStyl 2 Specifications | |
|---|---|
| Electrical Specifications | |
| Frequency: | 902-928 MHz |
| RF Power: | Peak - 27 dBm ; Average - 21 dBm |
| Channel Spacing: | 101 kHz |
| Number of Channels: | 252 |
| Modulation: | Differently Encoded MSK |
| Multiple Access: | Frequency Hopping TDD |
| Frequency Hopping Rate: | 100 per second |
| TDMA Frame Length: | 10 ms |
| Number of Slots/Frame: | 4 |
| Antenna Connector: | Reverse TNC |
| Antenna Gain: | 2.0 dBi |
| Speech Coding: | 8 kbps G.729A |
| Transmission Data Rate: | 85.333 kbps |
| User Data Rate: | 64 kbps duplex |
| Duplex: | Time Division Duplex (TDD) |
| Voice Quality: | TIA/EIA-470B |
| No. of System ID: | 65,536 |
| Battery Capacity: | AC/DC 100~240V/12V, 1A |
| Charger Current: | 550 mA |
| Charge Time: | 3 hours (from empty) |
| Environmental & Physical | |
| Temperature Range | Operating: 32 ~ 122ºF Storage: -40 ~ 158ºF |
| Humidity | Operating: 20 ~ 75% |
| Regulation Compliance | FCC Part 15, Part 68 |
| Package Contents | FreeStyl 2 Base Station and Handset 5VDC/1A, AC100~240V Power Adapter x 2 Desktop charger Quick Installation Guide CD with User's Manual in pdf |
| Warranty | 1 year |
| Actual range may vary depending on many factors including environmental conditions, building material, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. | |
Compare:
| EnGenius FreeStyl 1 & 2 Comparisons | ||
|---|---|---|
| Model | FreeStyl 1 | FreeStyl 2 |
| Range | ||
| In Building | Up to 6 floors | Up to 6 floors |
| Warehouse | Up to 25,000 sq. ft. | Up to 25,000 sq. ft. |
| Open Area | Up to 10 acres | Up to 10 acres |
| Antenna | ||
| Base | RT-TNC Dipole | RT-TNC Dipole |
| Handset | Low Profile | Low Profile |
| Auto Attendant | No | No |
| Base Dialing/td> | Yes | No |
| Battery | ||
| mAH (milliAmp Hours) | 1100 | 1100 |
| Standby Time | 60 hours | 60 hours |
| Talk Time | 5.5 hours | 5.5 hours |
| Charge Time | 3 hours | 3 hours |
| Broadcast | ||
| Base | Yes | No |
| Handset | Yes | Yes |
| Caller ID | Yes | Yes |
| Compatible with | FreeStyl 2 | FreeStyl 1 |
| Expandibility of Handsets | Up to 9 | Up to 9 |
| Frequency | 900 MHz | 900 MHz |
| Frequency Hopping | Yes | Yes |
| Headset Jack | 2.5mm | 2.5mm |
| Intercom | ||
| Base | Yes | No |
| Handset | Yes | Yes |
| Phonebook entries | Up to 50 | Up to 50 |
| Ports | ||
| Ports | RJ-11 | RJ-11 |
| Lines | 1 | 1 |
| Tel | 1 | 1 |
| Voicemail | No | No |
Documentation:
Download the EnGenius FreeStyl 2 Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
