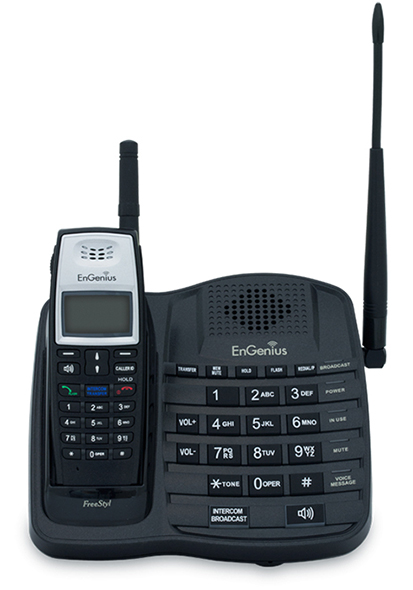

EnGenius FreeStyl 1
Extreme Range Scalable Cordless Phone System.
More pricing below, click here!
Overview:
The EnGenius FreeStyl 1 is a scalable 900 MHz Cordless Phone System with extreme wireless signal range that’s ideal for businesses with employees who roam beyond the confines of their offices or cubicles; or for expansive properties (farms, ranches, resorts, luxury estates) so owners or staff can stay connected over extended distances.
Going Where DECT and Wi-Fi Phones Cannot Go — The FreeStyl 1 in many cases is a complimentary addition to an existing digital desk phone systems, DECT phone systems and Wi-Fi phone systems. It can connect to both digital and analog PBX systems and provides companies or homeowners a solution that provides connectivity far beyond DECT or Wi-Fi phones particular on properties where outdoor Wi-Fi is unavailable or not an option.
A Scalable Solution — Individual FreeStyl 1 handsets are available for purchase from EnGenius authorized resellers so users can continue to add to their system. Each FreeStyl 1 base station supports up to 9 individual FreeStyl 1 handsets. Each handset includes its own charging station. Furthermore, it is not only use as a cordless phone system, the built-in speakerphone on both the base and handset units and a two-way radio for instant communication. The wireless intercom is private and secure and works as a two-way radio from either handset to handset or handset to base. The FreeStyl 1 is the perfect choice for users who do not require our rugged DuraFon, but prefer something with a little more style.
FreeStyl 1 system works well with:

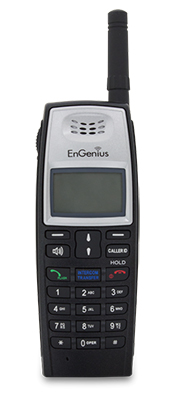

- Additional FreeStyl1 handsets
- FreeStyl1 long optimal antenna assembly for handset
- FreeStyl 1 handset pouch
Extreme Range Coverage
Up to 25,000 sq. ft. of facility coverage, up to 6 floors in-building penetration.
Outperforms 2.4 or 5.8GHz DECT solutions
High power/high sensitivity coverage penetrates concrete, wood and drywall.
Scalable system
Expandable to 9 total handsets in this one-line system.
Versatile
This multi-functional cordless system offers walkie talkie like, point-to-point communication that operates independent of the base station.
Business friendly feature
Simultaneous broadcast to multiple handsets from any handset. Plug directly to phone jack on the wall or plug directly to analog port of a PBX. Auto Attendant - call redirect assistance.
No Recurring Costs
No Subscriber contracts – (unlike cellular or 2-way radio licensing). No Monthly service charges or fees – (unlike cellular and phone companies).
Specifications:
| EnGenius FreeStyl 1 Specifications | |
|---|---|
| Electrical Specifications | |
| Frequency | 902-928 MHz |
| RF Power | Peak - 27 dBm ; Average - 21 dBm |
| Channel Spacing | 101 kHz |
| Number of Channels | 252 |
| Modulation | Differently Encoded MSK |
| Multiple Access | Frequency Hopping TDMA |
| Frequency Hopping Rate | 100 per second |
| TDMA Frame Length | 10 ms |
| Number of Slots/Frame | 4 |
| Antenna Connector | Reverse TNC |
| Antenna Gain | 2.5 dBi |
| Speech Coding | 8 kbps G.729A |
| Transmission Data Rate | 85.333 kbps |
| User Data Rate | 64 kbps duplex |
| Duplex | Time Division Duplex (TDD) |
| Voice Quality | TIA/EIA-470B |
| No. of System ID | 65,536 |
| Battery Capacity | AC/DC 100~240V/12V, 1A |
| Charger Current | 550 mA |
| Charge Time | 3 hours (from empty) |
| Environmental & Physical | |
| Temperature Range | Operating: 32 ~ 122ºF Storage: -40 ~ 158ºF |
| Humidity | Operating: 20 ~ 75% |
| Regulation Compliance | FCC Part 15, Part 68 |
| Package Contents | FreeStyl 1 Base Station and Handset 5VDC/1A, AC100~240V Power Adapter x 2 Desktop charger Quick Installation Guide CD with User's Manual in pdf |
| Warranty | 1 year |
| Actual range may vary depending on many factors including environmental conditions, building material, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. | |
Compare:
| EnGenius FreeStyl 1 & 2 Comparisons | ||
|---|---|---|
| Model | FreeStyl 1 | FreeStyl 2 |
| Range | ||
| In Building | Up to 6 floors | Up to 6 floors |
| Warehouse | Up to 25,000 sq. ft. | Up to 25,000 sq. ft. |
| Open Area | Up to 10 acres | Up to 10 acres |
| Antenna | ||
| Base | RT-TNC Dipole | RT-TNC Dipole |
| Handset | Low Profile | Low Profile |
| Auto Attendant | No | No |
| Base Dialing/td> | Yes | No |
| Battery | ||
| mAH (milliAmp Hours) | 1100 | 1100 |
| Standby Time | 60 hours | 60 hours |
| Talk Time | 5.5 hours | 5.5 hours |
| Charge Time | 3 hours | 3 hours |
| Broadcast | ||
| Base | Yes | No |
| Handset | Yes | Yes |
| Caller ID | Yes | Yes |
| Compatible with | FreeStyl 2 | FreeStyl 1 |
| Expandibility of Handsets | Up to 9 | Up to 9 |
| Frequency | 900 MHz | 900 MHz |
| Frequency Hopping | Yes | Yes |
| Headset Jack | 2.5mm | 2.5mm |
| Intercom | ||
| Base | Yes | No |
| Handset | Yes | Yes |
| Phonebook entries | Up to 50 | Up to 50 |
| Ports | ||
| Ports | RJ-11 | RJ-11 |
| Lines | 1 | 1 |
| Tel | 1 | 1 |
| Voicemail | No | No |
