EnGenius EWS7928P-FIT
EnGenius Fit 24-Port Power over Ethernet Switch 240W Gigabit PoE+

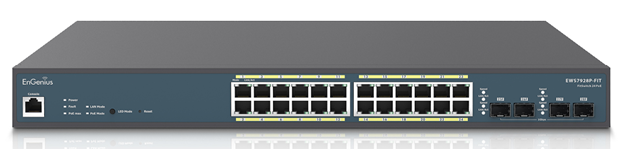

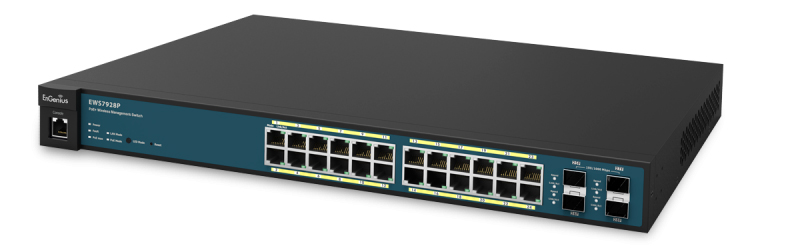

EnGenius EWS7928P-FIT Product Image

EnGenius Products
EWS7928P-FIT
EnGenius Fit 24-Port 240W Gigabit PoE+ Switch
#EWS7928P-FIT
Get a Quote!

More pricing below, click here!

Overview:

Layer 2 plus switch comes with 4 SFP uplink ports and multiple management options

The EnGenius Fit EWS7928P-FIT Managed Switch is a 24-port Gigabit PoE+ Layer 2 plus switch with a 240W PoE budget and 4 SFP uplink ports. It offers multiple management options for small business network environments, allowing you to select the cloud or on-premises management option that best suits your needs. With its business-class features, the EnGenius Fit managed switch provides secure, reliable, and high-performance switching while reducing capital and operating expenses for cost-conscious small businesses.

Product Highlights

  • 24 10/100/1000 Base-T GbE Ports
  • Full-featured Layer 2 plus Switching
  • 802.3at/af PoE+ ready on all ports with 240W PoE budget
  • 56 Gbps switching capacity
  • Setup in minutes with App-based step by step instructions
  • Quick-scan device register, remote monitoring and troubleshooting
  • Real-time system metrics, analytics and remote configurations
  • Hybrid switch supports multiple management options
  • From anywhere cloud visibility and control
  • Monitor a site or multiple sites with no recurring cost or licensing fee
  • Security - access control list/port security; 802.1x authentication
  • IGMP & MLD snooping provides advanced multicast filtering & network efficiency

Manage your network onsite or on-the-go through our FitXpress cloud-based mobile app or web portal. Additionally, FitController gives you greater control of your network using plug-n-play hardware with embedded network management software. Admins can easily view detailed analytics from a single pane of glass as well as monitor and troubleshoot issues instantly

Specifications:

EnGenius EWS7928P-FIT-FIT Specifications

EnGenius EWS7928P-FIT Specifications
Port Standards 802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports 24 10/100/1000 Mbps Ports
4 10/100/1000 Mbps SFP Ports
PoE CapablePorts 1-24 (802.3af/at)
All Gigabit Ethernet ports can output up to 30 Watts
Total PoE Budget 410 W
Switching Capacity 56Gbps
SDRAM 256MB
Flash Memory 32MB
Packet Buffer Memory 512 KB
Address Database Size 8,000 MAC Addresses
Physical Interface
LED Indicators Reset Button
Desktop/Wall Mount
LED Indicators Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports Link/Activity/Speed (per Ethernet port)
SFP Ports Link/Act LED
Software Features
Multiple IP Interface 20 IPv6 address
ARP Table Max. 192 ARP entries
Static ARP Static 192 ARP entries
IPv4 Static Route Max. 59 entries
IPv6 Static Route Max. 5 entries
>Software Features (L2 Features)
MAC Address Table 8K
Jumbo Frame 9K
Multicast Group Max 256 groups
Port Security Max 256 groups
SSL Certificate Certificate/Key Update
L2 Features 802.1Q VLAN tagging
VLAN Table
Port-based VLAN
Voice VLAN
GARP VLAN Registration Protocol
802.1d Spanning tree:
  • RSTP
  • CIST
  • MSTP
802.3ad Link Aggregation
Loopback Detection
L3 Feature IGMP Snooping
MLD Snooping
DHCP Snooping
DHCP Relay
Static Route
Port Settings Multicast Filtering
EEE
Port Isolation
Port Mirror
Jumbo Frames
LLDP
Security 802. 1X Radius Authentication Protocol
Web:
  • HTTP Service
  • HTTPs Service
Command Line Interface (CLI):
  • Telnet Service
  • SSH Service
Port Security
Radius Server
DoS Prevention
System Settings IP Settings:
  • IPv4 Management
  • IPv6 Management
  • IPv4 Network
ARP Table
ARP Statistics
Simple Network Time Protocol (SNTP)
Analyze Log:
  • Local Logging
  • Remote Logging
Diagnostice Cable Diagnostics
Ping Test
IPv6 Ping Test
Trace Route
Connection Diagnostic
Access Control List (ACL) MAC Based ACL
MAC ACE
IPv4 ACL
IPv4 ACE
IPv6 ACL
IPv6 ACE
ACL (Port) Binding
SNMP) SNMP v1/v2c/v3 Support
RMON RMON 1,2,3,9
QoS CoS Mapping
DSCP Mapping
Port CoS
Bandwidth Control
Storm control
Advanced Mode: Class Mapping
MIB/RFC Standards RFC1213
RFC1493
RFC1757
RFC2674
RFC2863
Environmental & Physical
Temperature Range Operating: 32 to 104°F/0 to 40°C
Storage: -40 to 158°F/-40 to 70 °C
Humidity (Non-Condensing) 5% - 95%
Package Contents 1x Fit L2+ Managed 24 Ports EWS7928FP-FIT PoE+ Gigabit Switch
1 x Power Cord
1 x RJ45 Console Cable
1 x Rack Mount Kit
Quick Start Guide QR Code
FitXpress Cloud-Based Mobile App QR Code
Device Dimensions & Weights
EWS7928P-FIT Device Weight: 10.62 Ibs
Width: 17.32” (440 mm)
Length: 10.23” (260 mm)
Height: 1.73” (44 mm)
Packaging Weight:13.13 lbs
Width: 20.95” (532mm)
Length:13.63” (346mm)
Height: 3.97” (101mm)
Warranty 1 Year

Documentation:

Download the EnGenius EWS7928P-FIT Datasheet (PDF).
