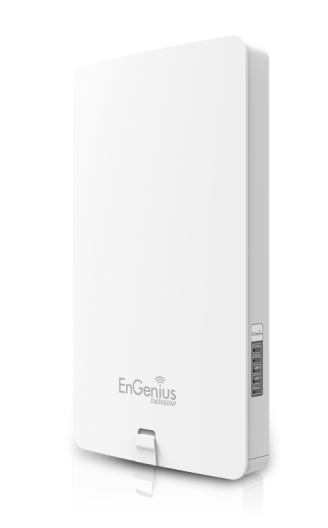

EnGenius EWS650AP
2×2 Dual-Band Wireless AC1200 Managed Outdoor Access Point

Features:

Ultra-Fast Wave 2 11ac Speeds

EnGenius’ 11ac Wave 2 Access Points deliver the highest available speeds for Wi-Fi devices reaching 2.5 Gbps. Beamforming technology focuses signals directly to client devices, providing optimal, reliable reception even in densely crowded outdoor environments. Four spatial streams and dual-concurrent MU-MIMO radio operation sends beams to multiple users simultaneously, creating increased network capacity and performance.

Peak Performance in Harsh Environments

Designed to perform in harsh conditions, Neutron EWS Outdoor Access Points feature industrial-grade IP68 to IP55-rated enclosures, ensuring the APs can withstand extreme outdoor climates and indoor industrial environments where the temperature is a factor. This includes prolonged outdoor exposure to sunlight, extreme cold, frost, snow, rain, hail, heat and humidity

Optimized Connectivity

Neutron EWS Outdoor APs feature dual-band concurrent wireless coverage, high speeds and high-device capacities. Band Steering optimizes network traffic flow by automatically directing dual-band clients to the less congested 5 GHz band. Fast Roaming capability ensures seamless, reliable connectivity for mobile users as they move between outdoor APs.

Maximized Wi-Fi Coverage

EWS Outdoor APs are designed for peak performance in a variety of outdoor environments providing high-performance reception and long-range connections. High-transmit power reaches to 29dBm, ensuring reliable, long-range device coverage.

Protected by Advanced Encryption

With Neutron EWS APs, your network is protected from attacks at multiple levels through advanced wireless encryption standards such as Wi-Fi Protected Access Encryption and authentication. Network threats are quickly detected and avoided through rogue AP detection, email alerts and real-time wireless invasion monitoring, allowing for immediate action to divert network hacks and other security threats.

Secure Guest Networks

Organizations that offer Internet access to patrons or visitors— notably hotels, retail shops and restaurants—will appreciate Neutron’s guest network capabilities. Establish a secure guest network that blocks access to main corporate computers. Create separate Virtual LANs for increased security, network reliability and bandwidth conservation.

Flexible Power-over-Ethernet Power Options

All Neutron EWS Outdoor Access Points feature at least one Gigabit PoE port, enabling placement in locations where power outlets are scarce or unavailable such as on poles or rooftop eaves. Power the APs through a connected Ethernet cable directly to a Neutron Managed Controller PoE+ Switch or with a PoE adapter up to 328 feet from the power source.

Simplified Deployment & Provisioning

In combination with Neutron Switches and ezMaster Network Management Software, Neutron EWS Outdoor APs are automatically discovered and provisioned. One-click individual or bulk configurations and upgrades save time. In addition, these access points are quickly and easily deployed and operated by users with limited networking experience.

Manage Up to 50 APs with Neutron Switches

Any Neutron Managed Switch can act as a wireless controller capable of managing up to 50 Neutron EWS Access Points. IT administrators have access to all connected Neutron devices and a full array of Layer 2 management tools. Choose between PoE+ and non-PoE switch models with flexible deployment and management options.

Specifications:

EnGenius EWS650AP Specifications
Standards	IEEE 802.11b/g/n on 2.4 GHz IEEE 802.11a/n/ac on 5 GHz IEEE 802.3at
Memory Capacity	Memory: 128 MB Flash Memory 16 MB
Antenna	5 dBi Internal Omni-Directional Antennas

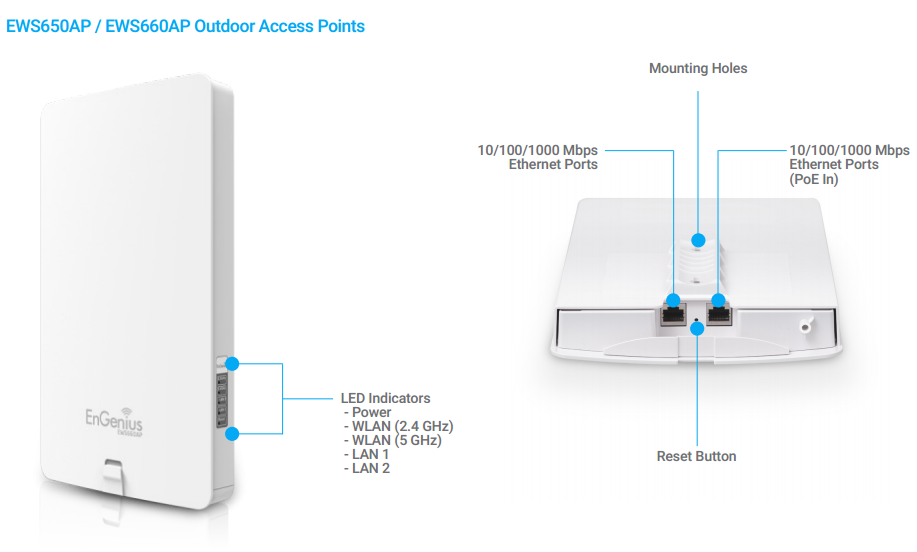

Physical Interface	2 x 10/100/1000 Gigabit Ethernet Ports - LAN1: Supports 802.3at PoE Input - LAN2: Data Pass Through 1 x Reset Button 1 x Power Connecto
Physical Security	Kensington Security Slot
LED Indicators	1 x Power 1 x WLAN (Wireless Connection) 1 x LAN
Power Source	External Power Adapter on PoE injector DC IN, 48 V/0.8A IEEE 802.3at Compliant Source Active Ethernet (PoE)
Ingress Protection Marking	IP55-Rated Enclosure
Mounting	Wall Mount Pole Mount
Wireless & Radio Specifications
Operating Frequency	Dual-Radio Concurrent 2.4GHz & 5 GHz
Operation Modes	Access Point
Peak Power	Up to 23W
Transmit Power	Up to 27 dBi on 2.4 GHz Up to 26 dBi on 5 GHz Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams	2x2:2
Supported Data Rates (Mbps)	2.4 GHz: Max 300 5 GHz: Max 867 802.11b: 1, 2, 5.5, 11 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1~3)
Supported Radio Technology	802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
Channelization	802.11ac with 20/40/80 MHz channel width 802.11n with 20/40 MHz channel width 802.11a/b/g with 20 MHz channel width
Supported Modulation	802.11b: BPSK, QPSK, CCK 802.a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Management
Multiple BSSID	Supports up to 16 SSIDs, 8 SSIDs per radio
VLAN Tagging	Supports 802.1q SSID-to-VLAN tagging VLAN Pass through
QoS	Compliant with IEEE 802.11e Standard WMM
SNMP	v1, v2c, v3
MIB	I/II, Private MIB
Deployment Options	Standalone (Individually Managed) Managed Mode (with Neutron Series Switch/ezMaster)
Auto-Channel Selection	Wireless STA (Client) Connection List Guest Network Mobility: PMKSA Support for Fast Roaming Backup/Restore Settings Auto Reboot Client Statistics E-Mail Alert
Configuration	Web Interface (HTTP) CLI (Telnet)
Control Features	Managed Mode (by Neutron Switch/ezMaster) CLI Supported Band Steering Auto Reboot One-Click Firmware Upgrade Firmware Upgrade: Web interface or CLI (FTP/HTTP)
Security	WEP Encryption (64/128/152 bit) WPA/WPA2 Enterprise (PSK using TKIP or AES) Hide SSID in beacons MAC Address Filtering, up to 50 MACS per SSID Https Support SSH Support Client Isolation
Environmental & Physical
Temperature Range	Operating: -4°F to 140°F, -20°C to 60°C Storage: -22°F to 176°F, -30°C to 80 °C
Humidity (non-condensing)	Operating: 90% or less Storage: 90% or less
Device Dimensions & Weights
Device	Weight: 1.89 lbs. Width: 7.13" (181 mm) Length: 11.97" (304 mm) Height: 1.81" (46 mm)
Packaging	Weight: 3.43 lbs. (1.55 kg) Width: 15.87" (403 mm) Length: 21.18" (538 mm) Height: 14.61" (371 mm)
Package Contents	EWS650AP 11ac Outdoor AP 48 V/0.8A Power Adapter PoE Injector Pole Mount Ring Mounting Screw Set Quick Installation Guide
Certifications	FCC CE
Warranty	1 Year

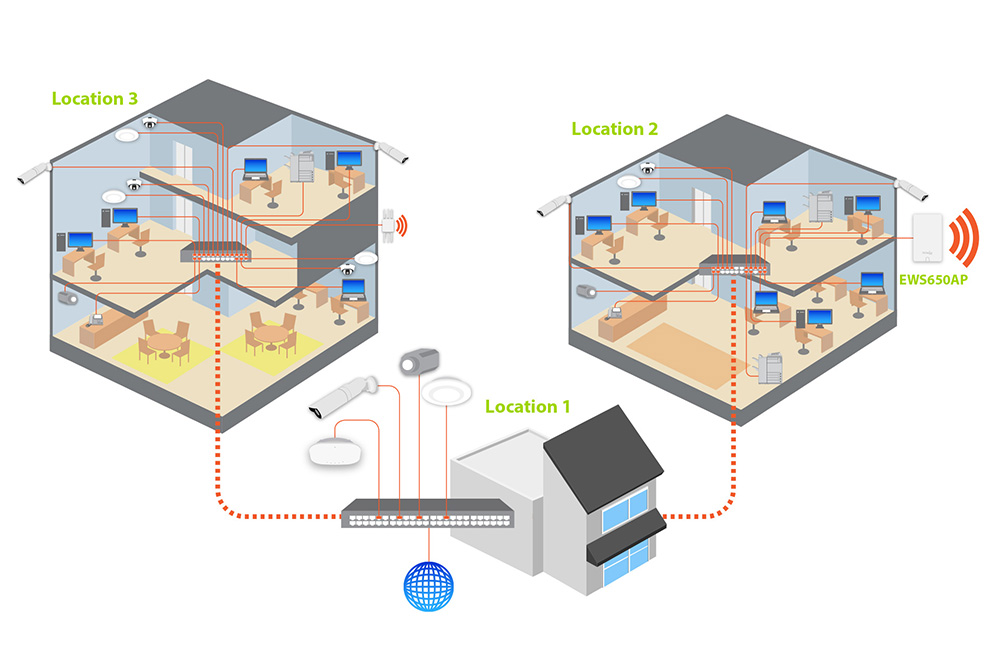

Diagram:

EnGenius Neutron Series Outdoor Managed Access Points Compare:

Model	EWS871AP	EWS870AP	EWS860AP	EWS660AP	EWS650AP
Standards	802.11b/g/n/ac	802.11b/g/n/ac	802.11a/b/g/n/ac	802.11a/b/g/n/ac	802.11b/g/n/ac
Frequency	2.4 & 5 GHz	2.4 & 5 GHz	2.4 & 5 GHz	2.4 & 5 GHz	2.4 & 5 GHz
2.4 GHz Max. Data Rate	800 Mbps	800 Mbps	450 Mbps	450 Mbps	300 Mbps
5 GHz Max. Data Rate	1,733 Mbps	1,733 Mbps	1,300 Mbps	1,300 Mbps	867 Mbps
Radio Chains/Streams	4 x 4:4	4 x 4:4	3 x 3:3	3 x 3:3	2 x 2:2
RF Output Power	27 dBm	27 dBm	29 dBm	29 dBm	27 dBm
Ingress Protection Rating	67	67	68	55	55
Primary Ethernet Port	1 x Gig Port	1 x Gig Port	1 x Gig Port	1 x Gig Port	1 x Gig Port
Secondary Ethernet Port	1 x Gig Port (PoE Output)	1 x Gig Port (PoE Output)	1 x Gig Port (PoE Output)	1 x Gig Port	1 x Gig Port
Console Interface	1 x RJ45	1 x RJ45	N/A	N/A	N/A
PoE Compliant	802.3at (PoE+)	802.3at (PoE+)	802.3at (PoE+)	802.3at (PoE+)	802.3at (PoE+)
Power Consumption (Peak)	21W (w/o PSE) 36W (w/PSE over LAN2)	21W (w/o PSE) 36W (w/PSE over LAN2)	32W	20W	20W
Integrated Antennas	-	4 x 3 dBi (2.4 GHz) 4 x 3 dBi (5 GHz)	N/A	6 x 5 dBi	2 x 5 dBi
External Antenna (N-Type)	4 x 5 dBi (2.4 GHz) 4 x 7 dBi (5 GHz)	N/A	2.4 GHz: 3 x 5 dBi 5 GHz: 3 x 7 dBi	N/A	N/A

EzMaster Network Management Software:

Flexible Distributed Network Management

EzMaster Network Management Software expands the flexibility and scalability of Neutron Series EWS Managed Access Points and Switches. EzMaster allows organizations, such as branch offices and managed service providers, to easily and affordably deploy, monitor and manage a large number of Neutron APs, Controller Switches and Managed Smart Switches across geographically diverse properties. Centrally manage an unlimited number of independent distributed networks in the same subnet or crosssubnet from a single, at-a-glance network dashboard, no matter where they're located. Deploy ezMaster locally, remotely or via a Cloud-based service with or without an onsite controller.

Powerful, Scalable Options

EzMaster scales with your growing business needs. Manage 1,000+ Neutron EWS Access Points and Switches and 10,000+ concurrent users. Together, Neutron APs, Switches and ezMaster provide a flexible, fully integrated solution with redundancy support and future expandability for broader device connectivity.

Simplified Device Management

EzMaster Network Management Software makes centralized device management easy. How? Through centralized bulk configuration, provisioning and monitoring, a comprehensive at-a-glance network dashboard, rich analytics and reporting, and much more.

EzMaster Software Features

• Centralized Management
  • Configure, Managed & Monitor 1,000+ Neutron Devices
  • Cross-Network AP Management
  • AP Group Configuration
• Access Point Configuration & Management
  • Auto Channel Selection
  • Auto Tx Power
  • Background Scanning
  • Band Steering (Auto Band Steering & Band Balancing)
  • Client Isolation
  • Client Limiting
  • Fast Roaming
  • L2 Isolation
  • LED On/Off Control
  • Multiple SSID
  • RSSI Threshold
  • Secure Guest Network
  • Traffic Shaping
  • VLAN Isolation
  • VLAN Tag
• Comprehensive Monitoring
  • Device Status Monitoring
  • Floor Plan View
  • Map View
  • Rogue AP Detection
  • System Status Monitoring
  • Visual Topology View
  • Wireless Client Monitoring
  • Wireless Coverage View
  • Wireless Traffic & Usage Statistics
• Management & Maintenance
  • Bulk Firmware Upgrade
  • Captive Portal
  • Email Alert
  • ezRedundancy
  • Kick/Ban Clients
  • One-Click Update
  • Remote Logging
• Seamless Migration
• SmartSync Redundancy
• Syslog

System Requirements

Recommended environment for managing up to 500 APs

• CPU: Intel Core i3 3.6 GHz dual-core or above
• RAM: 4 GB minimum
• HDD: 500 GB (actual requirement dependent on log size)
• OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Recommended environment for managing up to 1,000+ APs

• CPU: Intel Core i5 3.2 GHz quad-core or above
• RAM: 4 GB minimum
• HDD: 500 GB (actual requirement dependent on log size)
• OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Browser Requirements

• Internet Explorer 10 or better
• Firefox 34.0 or better
• Chrome 31.0 or better
• Safari 8.0 or better

Network Topology Requirements

• At sites where APs are deployed: A DHCP-enabled network for APs to obtain an IP address

Documentation:

Download the EnGenius Neutron Series Outdoor Managed Access Points Datasheet (PDF).
