EnGenius EWS310AP
Ceiling-Mount 11n Indoor Managed Access Point; 2×2 Dual-Band

Features & Benefits:

Flexibility in Deployment

Neutron’s versatile line of high-performance, managed, indoor ceiling- and wall-mount access points range from single-band 11n models to high-capacity 4x4 dual-band 11ac Wave 2 versions. Wallplate models serve as all-in-one communication “hubs” for in-room wireless connectivity. Configure APs individually as stand-alone units, locally manage up to 50 per Neutron Switch or use ezMaster software to control 1,000+ APs.

Ultra-Fast 11ac Wave 2 Speeds

EnGenius’ 11ac Wave 2 Access Points deliver the highest available speeds for Wi-Fi devices reaching 2.5 Gbps. Beamforming technology focuses signals directly to client devices, providing optimal, reliable reception even in densely crowded environments. Four spatial streams and dual-concurrent MU-MIMO radio operation sends beams to multiple users simultaneously, creating increased network capacity.

Optimized Connectivity

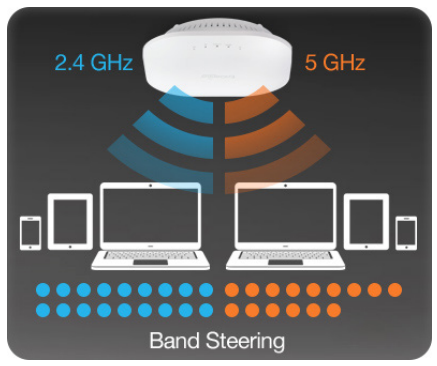

Neutron EWS APs feature dual-band1 concurrent wireless coverage, high speeds, and high-device capacities. Band Steering optimizes network traffic flow by automatically directing dual-band clients to the less congested 5 GHz band. Fast Roaming capability ensures seamless, reliable connectivity for mobile users as they move between access points.

Protected by Advanced Encryption

With Neutron EWS APs, your network is protected from attacks at multiple levels through advanced wireless encryption standards such as Wi-Fi Protected Access Encryption and authentication. Network threats are quickly detected and avoided through rogue AP detection, email alerts and real-time wireless invasion monitoring, allowing for immediate action to divert network hacks and other security threats.

Secure Guest Networks

Organizations that offer Internet access to patrons or visitors— notably hotels, retail shops and restaurants—will appreciate Neutron’s guest network capabilities. Establish a secure guest network that blocks access to main corporate computers. Create separate Virtual LANs for increased security, network reliability and bandwidth conservation.

Power-over-Ethernet Convenience

All Neutron EWS Access Points feature at least one Gigabit PoE port, enabling placement in discreet locations where power outlets are scarce or unavailable. Power the APs through a connected Ethernet cable directly to a Neutron Managed PoE+ Controller Switch or with a PoE adapter up to 328 feet from the power source.

Simplified Deployment & Provisioning

In combination with Neutron Switches and ezMaster Network Management Software, Neutron EWS APs are automatically discovered and provisioned. One-click individual or bulk configurations and upgrades save time. In addition, these access points are quickly and easily deployed and operated by users with limited networking experience.

Manage Up to 50 APs with Neutron Switches

In small settings, any Neutron Managed Switch can act as a wireless controller capable of managing up to 50 Neutron EWS Access Points. IT administrators have access to all connected Neutron devices and a full array of Layer 2 management tools. Choose between PoE+ and non-PoE switch models with flexible deployment and management options.

Specifications:

EnGenius EWS310AP Specifications
Standards	IEEE802.11b/g/n on 2.4 GHz IEEE 802.11a/n on 5 GHz IEEE802.3at/af IEEE 802.1r IEEE 802.1k IEEE 802.11x
Memory Capacity	Memory: 64 MB Flash Memory 16 MB
Antenna	Internal Omni-Directional Antennas 5 dBi on 2.4 GHz & 5 GHz

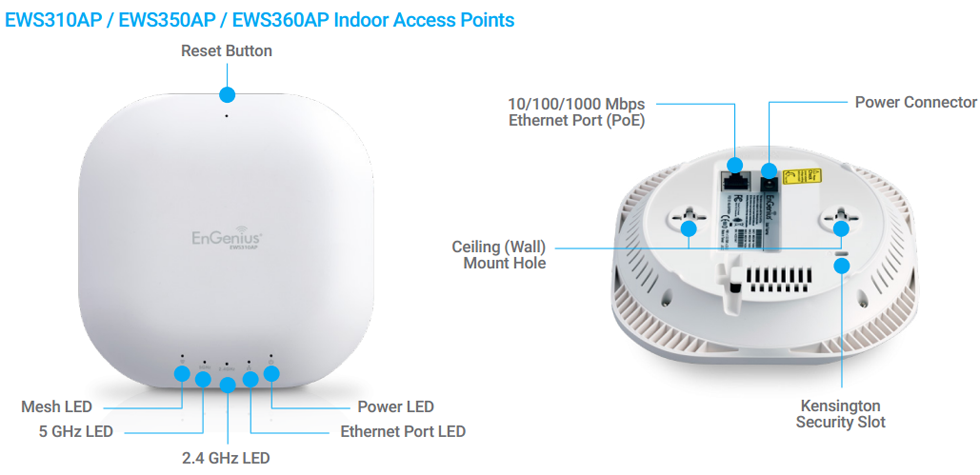

Physical Interface	1 x 10/100/1000 Gigabit Ethernet Port 1 x Reset Button 1 x Power Connector
Physical Security	Kensington Security Slot
LED Indicators	1 x Power WLAN (Wireless Connection) 2.4 GHz 5 GHz 1 x LAN
Power Source	External Power Adapter DC IN, 12V/2A IEEE 802.3at/af Compliant Source
Mounting	Ceiling Mount Wall Mount
Wireless & Radio Specifications
Operating Frequency	Dual-Radio Concurrent 2.4GHz & 5GHz
Operation Modes	Access Point
Frequency Radio	2.4GHz: 2400MHz ~ 2835MHz 5GHz: 5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz
Transmit Power	Up to 29 dBm on 2.4 GHz Up to 26 dBm on 5 GHz Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams	2x2:2
Supported Data Rates (Mbps)	2.4 GHz: Max 300 5 GHz: Max 300 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS23)
Supported Radio Technology	802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n: Orthogonal Frequency-Division Multiplexing (OFDM)
Channelization	802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n: Orthogonal Frequency-Division Multiplexing (OFDM)
Supported Modulation	802.11b: BPSK, QPSK, CCK 802.a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
Management
Multiple BSSID	Supports up to 16 SSIDs, 8 SSIDs per radio
VLAN Tagging	Supports 802.1q SSID-to-VLAN Tagging VLAN Pass-through
QoS	Compliant with IEEE 802.11e Standard WMM
SNMP	v1, v2c, v3
MIB	I/II, Private MIB
Management Features
Deployment Options	Standalone (Individually Managed) Managed Mode (with Neutron Series Switch/ezMaster)
Wireless Management Features (with ezMaster & Neutron Switch)	AP Auto Discovery and Provisioning AP Auto IP Assignment AP Group Management Remote AP Rebooting AP Device Name Editing AP Radio Settings Band Steering Traffic Shaping Fast Roaming (802.11k & 802.11r) Pre-Authentication (802.11i, 802.11x) PMK Caching (802.11i) RSSI Threshold AP Client Limiting Client Fingerprinting AP VLAN Management VLANs for AP - Multiple SSIDs Secured Guest Network Captive Portal Access Point Status Monitoring Rogue AP Detection Wireless Client Monitoring Background Scanning Auto Transmit Power Auto Channel Email Alert Wireless Traffic & Usage Statistics Real-time Throughput Monitoring Visual Topology View Floor Plan View Map View Wireless Coverage Display SSL Certificate Remote MAC Address Database (RADIUS) Unified Configuration Import/Export Bulk Firmware Upgrade Capability One-Click Update Intelligent Diagnostics Kick/Ban Clients Wi-Fi Scheduler Traffic Shaping
Configuration	Web Interface (HTTP) CLI (Telnet)
Control Features	Managed Mode (by Neutron Switch/ezMaster) Auto Reboot One-Click Firmware Upgrade Firmware Upgrade: Web interface or CLI (FTP/HTTP)
Security	WPA/WPA2 Enterprise Hide SSID in beacons MAC Address Filtering Https Support SSH Support Client Isolation L2 Isolation
Environmental & Physical
Temperature Range	Operating: 32°F to 104°F (0°C to 40°C) Storage: -4°F to 140°F (-20°C to 60 °C)
Humidity (non-condensing)	Operating: 90% or less Storage: 90% or less
Device Dimensions & Weights
Device	Weight: 0.8 Ibs Width: 6.36” (161.54 mm) Length: 6.36” (161.54 mm) Height: 1.64” (41.66 mm)
Package Contents	EWS310AP Dual-band Neutron Series solution Wireless N600 Managed Indoor Access Point 12V/2A Power Adapter T-Rail Mounting Kit Ceiling and Wall Mount Screw Kit Mounting Bracket RJ-45 Ethernet Cable Quick Installation Guide
Certifications	FCC CE
Warranty	1 Year

EnGenius Neutron Series Indoor Managed Access Points Comparison:

	Ceiling-Mount						Wall Plate
	EWS371AP	EWS370AP	EWS360AP	EWS350AP	EWS310AP	EWS300AP	EWS510AP	EWS500AP
Standards	802.11a/b/g/n/ac	802.11a/b/g/n/ac	802.11a/b/g/n/ac	802.11a/b/g/n/ac	802.11a/b/g/n	802.11b/g/n	802.11a/b/g/n	802.11b/g/n
Frequency	2.4 & 5 GHz	2.4 & 5 GHz	2.4 & 5 GHz	2.4 & 5 GHz	2.4 & 5 GHz	2.4 GHz	2.4 & 5 GHz	2.4 GHz
2.4 GHz Max. Data Rate	800 Mbps	800 Mbps	450 Mbps	300 Mbps	300 Mbps	300 Mbps	300 Mbps	300 Mbps
5 GHz Max. Data Rate	1,733 Mbps	1,733 Mbps	1,300 Mbps	867 Mbps	300 Mbps	N/A	300 Mbps	N/A
Radio Chains/ Streams	4 x 4:4	4 x 4:4	3 x 3:3	2 x 2:2	2 x 2:2	2 x 2:2	2 x 2:2	2 x 2:2
RF Output Power (2.4 GHz)	27 dBm	27 dBm	28 dBm	26 dBm	29 dBm	29 dBm	20 dBm	20 dBm
RF Output Power (5 GHz)	27 dBm	27 dBm	28 dBm	26 dBm	26 dBm	N/A	20 dBm	N/A
Ethernet Ports	2 x Gig Port (PoE+)	2 x Gig Port (PoE+)	1 x Gig Port (PoE+)	1 x Gig Port (PoE+)	1 x Gig Port (PoE+)	1 x Gig Port (PoE+)	- 1 x 10/100 Mbps Access Port (PoE+) - 3 x 10/100 Mbps Access Ports - 1 x Gig Uplink Port (PoE) - 1 x RJ45 Pass Through Ports	- 1 x 10/100 Mbps Access Port (PoE+) - 3 x 10/100 Mbps Access Ports - 1 x Gig Uplink Port (PoE) - 2 x RJ45 Pass Through Ports
110 Punch Down Block	-	-	-	-	-	-	1	1
Power-overEthernet	802.3at	802.3at	802.3at	802.3at	802.3af/at	802.3af/at	802.3af/at	802.3af/at
Power Consumption (Peak)	21W	21W	22.8W	18W	15.6W	9.6W	10.8W	7.5W
Integrated Antenna	-	4 x 3 dBi (2.4 GHz) 4 x 3 dBi (5 GHz)	6 x 5 dBi	4 x 5 dBi	4 x 5 dBi	2 x 5 dBi	2 x 4 dBi (2.4 GHz) 2 x 5 dBi (5 GHz)	2 x 4 dBi
External Antenna	8 x 3 dBi (RP-SMA)	-	-	-	-	-	-	-

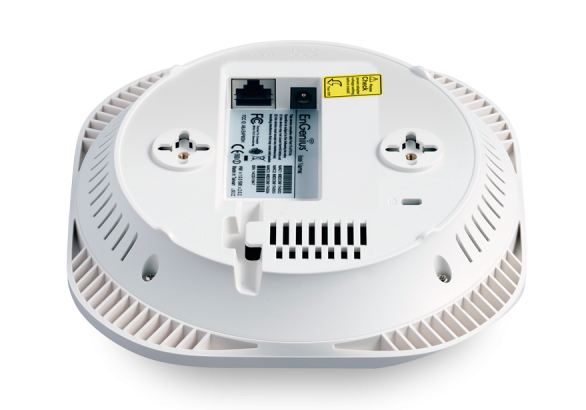

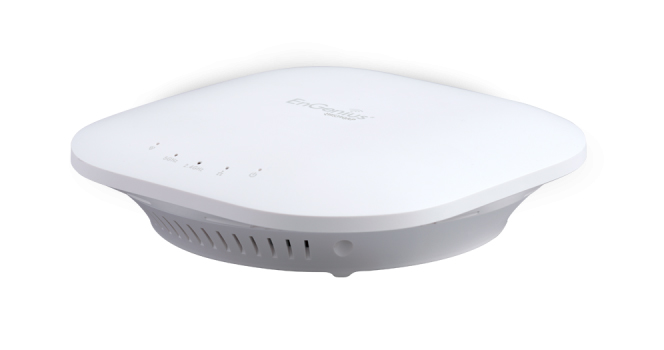

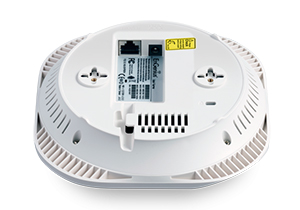

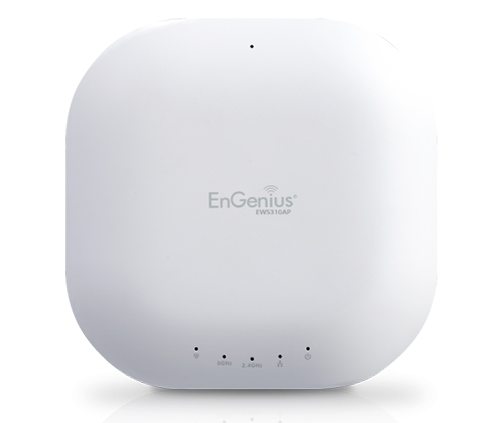

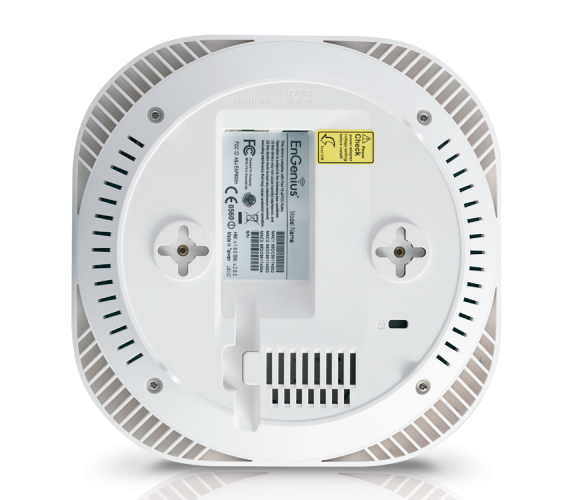

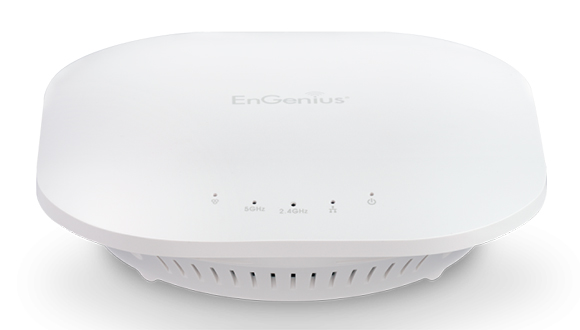

Views:

EzMaster Network Management Software:

Flexible Distributed Network Management

EzMaster Network Management Software expands the flexibility and scalability of Neutron Series EWS Managed Access Points and Switches. EzMaster allows organizations, such as branch offices and managed service providers, to easily and affordably deploy, monitor and manage a large number of Neutron APs, Controller Switches and Managed Smart Switches across geographically diverse properties. Centrally manage an unlimited number of independent distributed networks in the same subnet or crosssubnet from a single, at-a-glance network dashboard, no matter where they're located. Deploy ezMaster locally, remotely or via a Cloud-based service with or without an onsite controller.

Powerful, Scalable Options

EzMaster scales with your growing business needs. Manage 1,000+ Neutron EWS Access Points and Switches and 10,000+ concurrent users. Together, Neutron APs, Switches and ezMaster provide a flexible, fully integrated solution with redundancy support and future expandability for broader device connectivity.

Simplified Device Management

EzMaster Network Management Software makes centralized device management easy. How? Through centralized bulk configuration, provisioning and monitoring, a comprehensive at-a-glance network dashboard, rich analytics and reporting, and much more.

EzMaster Software Features

• Centralized Management
  • Configure, Managed & Monitor 1,000+ Neutron Devices
  • Cross-Network AP Management
  • AP Group Configuration
• Access Point Configuration & Management
  • Auto Channel Selection
  • Auto Tx Power
  • Background Scanning
  • Band Steering (Auto Band Steering & Band Balancing)
  • Client Isolation
  • Client Limiting
  • Fast Roaming
  • L2 Isolation
  • LED On/Off Control
  • Multiple SSID
  • RSSI Threshold
  • Secure Guest Network
  • Traffic Shaping
  • VLAN Isolation
  • VLAN Tag
• Comprehensive Monitoring
  • Device Status Monitoring
  • Floor Plan View
  • Map View
  • Rogue AP Detection
  • System Status Monitoring
  • Visual Topology View
  • Wireless Client Monitoring
  • Wireless Coverage View
  • Wireless Traffic & Usage Statistics
• Management & Maintenance
  • Bulk Firmware Upgrade
  • Captive Portal
  • Email Alert
  • ezRedundancy
  • Kick/Ban Clients
  • One-Click Update
  • Remote Logging
• Seamless Migration
• SmartSync Redundancy
• Syslog

System Requirements

Recommended environment for managing up to 500 APs

• CPU: Intel Core i3 3.6 GHz dual-core or above
• RAM: 4 GB minimum
• HDD: 500 GB (actual requirement dependent on log size)
• OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Recommended environment for managing up to 1,000+ APs

• CPU: Intel Core i5 3.2 GHz quad-core or above
• RAM: 4 GB minimum
• HDD: 500 GB (actual requirement dependent on log size)
• OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Browser Requirements

• Internet Explorer 10 or better
• Firefox 34.0 or better
• Chrome 31.0 or better
• Safari 8.0 or better

Network Topology Requirements

• At sites where APs are deployed: A DHCP-enabled network for APs to obtain an IP address

Documentation:

Download the EnGenius Neutron Series Indoor Managed Access Points Datasheet (PDF).
