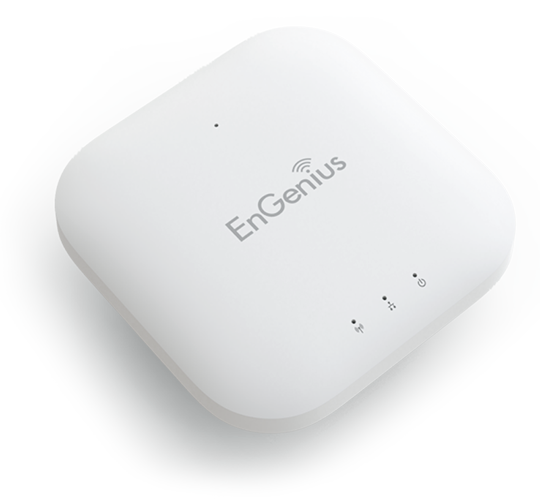

EnGenius EWS300AP
Ceiling-Mount 11n Indoor Managed Access Point; 2×2 Single-Band

EnGenius EWS300AP

Sorry, this product is no longer available, replaced by the EWS330AP.

Overview:

EnGenius Neutron EWS300AP Indoor Ceiling-Mount Access Point is an affordable single-band, wireless managed, 802.11n high-powered AP for large homes/small businesses looking for the best value. The AP can operate alone or part of a scalable EnGenius Neutron Series Wireless Network Management Solution, centrally managed by ezMaster, and expandable as your network needs grow. Any organization with limited IT support and budgets, can create a stable, secure wireless network in no time. This powerful solution can be quickly and easily deployed and operated by users with little to no networking experience.

Highlights

  • 11n Wireless Speeds to 300 Mbps for Fast File Transfers & Smooth Media Streaming
  • Best Price/Performance Value & Affordability
  • Long-Range, Multi-Floor Coverage With up to 29 dBm Transmit Power
  • Connect & Power via 802.3af/at PoE+ Gigabit Port for Flexible Placement

High Performance Reliability

EnGenius’ Neutron Series line of Managed Indoor Access Points provides wireless connectivity that’s flexible, scalable and reliable for a broad range of indoor applications. Whether you are looking to connect a luxury home or office or need to provide ultra-fast Wi-Fi access to a large resort or campus, Neutron EWS Access Points meet the high-bandwidth requirements of today’s mobile users.

No matter what size network you need to support, Neutron EWS Access Points are flexible enough to meet your needs. Start small and grow or go big. Deploy and manage a few or 1,000+ APs on an unlimited number of networks distributed across various locations—regardless of their size and infrastructures. Neutron Series easily scales with your networking needs.

Features & Benefits:

Flexibility in Deployment

Neutron’s versatile line of high-performance, managed, indoor ceiling- and wall-mount access points range from single-band 11n models to high-capacity 4x4 dual-band 11ac Wave 2 versions. Wallplate models serve as all-in-one communication “hubs” for in-room wireless connectivity. Configure APs individually as stand-alone units, locally manage up to 50 per Neutron Switch or use ezMaster software to control 1,000+ APs.

Ultra-Fast 11ac Wave 2 Speeds

EnGenius’ 11ac Wave 2 Access Points deliver the highest available speeds for Wi-Fi devices reaching 2.5 Gbps. Beamforming technology focuses signals directly to client devices, providing optimal, reliable reception even in densely crowded environments. Four spatial streams and dual-concurrent MU-MIMO radio operation sends beams to multiple users simultaneously, creating increased network capacity.

Optimized Connectivity

Neutron EWS APs feature dual-band1 concurrent wireless coverage, high speeds, and high-device capacities. Band Steering optimizes network traffic flow by automatically directing dual-band clients to the less congested 5 GHz band. Fast Roaming capability ensures seamless, reliable connectivity for mobile users as they move between access points.

Optimized Connectivity

Protected by Advanced Encryption

With Neutron EWS APs, your network is protected from attacks at multiple levels through advanced wireless encryption standards such as Wi-Fi Protected Access Encryption and authentication. Network threats are quickly detected and avoided through rogue AP detection, email alerts and real-time wireless invasion monitoring, allowing for immediate action to divert network hacks and other security threats.

Secure Guest Networks

Organizations that offer Internet access to patrons or visitors— notably hotels, retail shops and restaurants—will appreciate Neutron’s guest network capabilities. Establish a secure guest network that blocks access to main corporate computers. Create separate Virtual LANs for increased security, network reliability and bandwidth conservation.

Power-over-Ethernet Convenience

All Neutron EWS Access Points feature at least one Gigabit PoE port, enabling placement in discreet locations where power outlets are scarce or unavailable. Power the APs through a connected Ethernet cable directly to a Neutron Managed PoE+ Controller Switch or with a PoE adapter up to 328 feet from the power source.

Simplified Deployment & Provisioning

In combination with Neutron Switches and ezMaster Network Management Software, Neutron EWS APs are automatically discovered and provisioned. One-click individual or bulk configurations and upgrades save time. In addition, these access points are quickly and easily deployed and operated by users with limited networking experience.

Manage Up to 50 APs with Neutron Switches

In small settings, any Neutron Managed Switch can act as a wireless controller capable of managing up to 50 Neutron EWS Access Points. IT administrators have access to all connected Neutron devices and a full array of Layer 2 management tools. Choose between PoE+ and non-PoE switch models with flexible deployment and management options.

Specifications:

EnGenius EWS300AP Specifications

EnGenius EWS300AP Specifications
Standards IEEE802.11b/g/n on 2.4 GHz
IEEE802.3at/af
IEEE 802.1r
IEEE 802.1k
IEEE 802.11x
Memory Capacity Memory: 64 MB
Flash Memory 16 MB
Antenna Internal Omni-Directional Antennas
5 dBi on 2.4 GHz

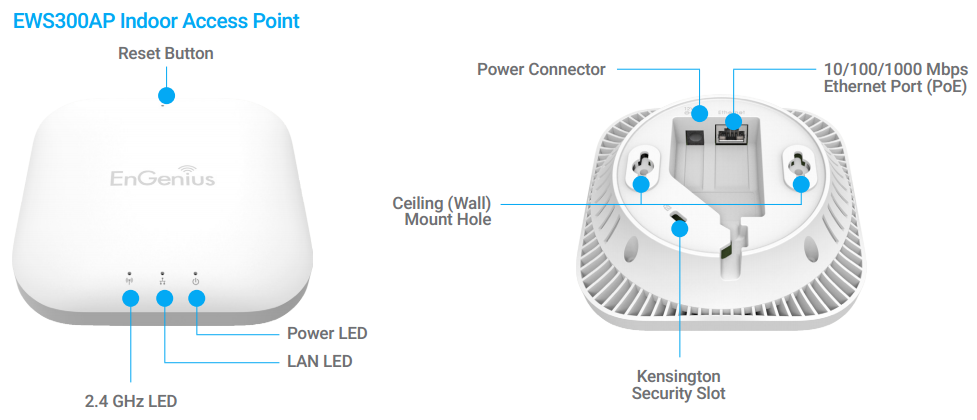

Physical Interface 1 x 10/100/1000 Gigabit Ethernet Port
1 x Reset Button
1 x Power Connector
Physical Security Kensington Security Slot
LED Indicators 1 x Power
WLAN (Wireless Connection)
2.4 GHz
1 x LAN
Power Source External Power Adapter
DC IN, 12V/2A
IEEE 802.3at/af Compliant Source
Mounting Ceiling Mount
Wall Mount
Wireless & Radio Specifications
Operating Frequency 2.4GHz
Operation Modes Access Point
Frequency Radio 2.4GHz: 2400MHz ~ 2835MHz
Transmit Power Up to 29 dBm on 2.4 GHz
Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams 2x2:2
Supported Data Rates (Mbps) 2.4 GHz: Max 300
802.11b: 1, 2, 5.5, 11 802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
Supported Radio Technology 802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11g/n: Orthogonal Frequency-Division Multiplexing (OFDM)
Channelization 802.11n with 20/40 MHZ channel width
802.11b/g with 20 MHZ channel width
Supported Modulation 802.11b: BPSK, QPSK, CCK
802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM
Management
Multiple BSSID Supports up to 16 SSIDs, 8 SSIDs per radio
VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging
VLAN Pass-through
QoS Compliant with IEEE 802.11e Standard
WMM
SNMP v1, v2c, v3
MIB I/II, Private MIB
Management Features
Deployment Options Standalone (Individually Managed)
Managed Mode (with Neutron Series Switch/ezMaster)
Wireless Management Features (with ezMaster & Neutron Switch)
  • AP Auto Discovery and Provisioning
  • AP Auto IP Assignment
  • AP Group Management
  • Remote AP Rebooting
  • AP Device Name Editing
  • AP Radio Settings
  • Band Steering
  • Traffic Shaping
  • Fast Roaming (802.11k & 802.11r)
  • Pre-Authentication (802.11i, 802.11x)
  • PMK Caching (802.11i)
  • RSSI Threshold
  • AP Client Limiting
  • Client Fingerprinting
  • AP VLAN Management
  • VLANs for AP - Multiple SSIDs
  • Secured Guest Network
  • Captive Portal
  • Access Point Status Monitoring
  • Rogue AP Detection
  • Wireless Client Monitoring
  • Background Scanning
  • Auto Transmit Power
  • Auto Channel
  • Email Alert
  • Wireless Traffic & Usage Statistics
  • Real-time Throughput Monitoring
  • Visual Topology View
  • Floor Plan View
  • Map View
  • Wireless Coverage Display
  • SSL Certificate
  • Remote MAC Address Database (RADIUS)
  • Unified Configuration Import/Export
  • Bulk Firmware Upgrade Capability
  • One-Click Update
  • Intelligent Diagnostics
  • Kick/Ban Clients
  • Wi-Fi Scheduler
  • Traffic Shaping
Configuration Web Interface (HTTP)
CLI (Telnet)
Control Features Managed Mode (by Neutron Switch/ezMaster)
Auto Reboot
One-Click Firmware Upgrade
Firmware Upgrade: Web interface or CLI (FTP/HTTP)
Security WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support
SSH Support
Client Isolation
L2 Isolation
Environmental & Physical
Temperature Range Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 140°F (-20°C to 60 °C)
Humidity (non-condensing) Operating: 90% or less
Storage: 90% or less
Device Dimensions & Weights
Device Weight: 0.45 lbs. (202 g)
Length: 5.07” (129 mm)
Width: 5.07” (129 mm)
Height: 1.73” (43.9 mm)
Package Contents EWS300AP Dual-band Neutron Series solution Wireless N600 Managed Indoor Access Point
12V/2A Power Adapter
T-Rail Mounting Kit
Ceiling and Wall Mount Screw Kit
Mounting Bracket
RJ-45 Ethernet Cable
Quick Installation Guide
Certifications FCC
CE
Warranty 1 Year

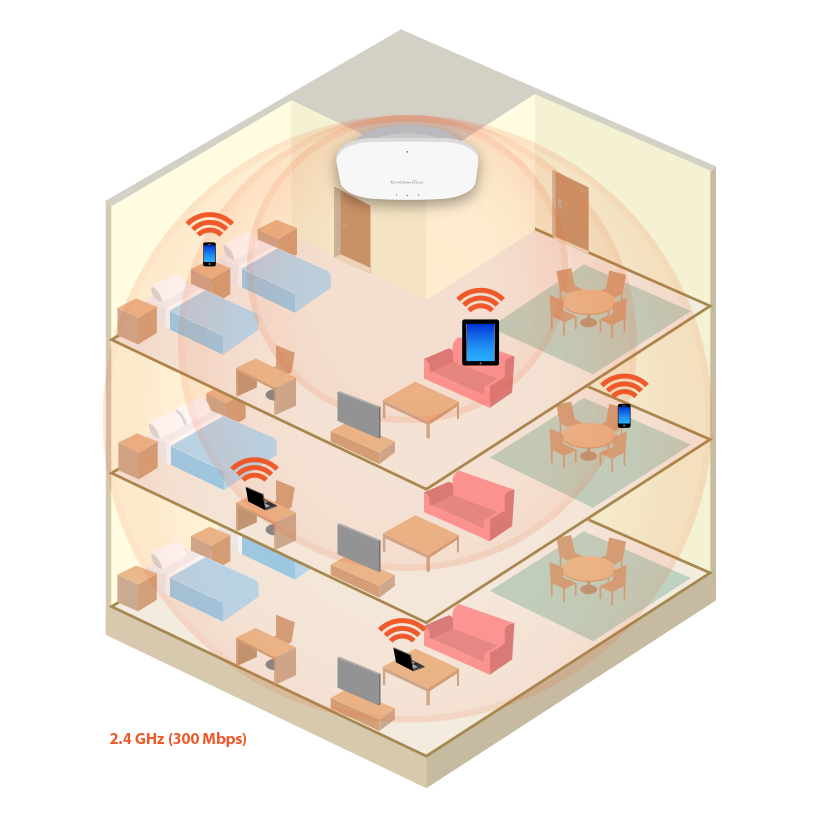

Diagram:

EWS300AP diagram

EnGenius Neutron Series Indoor Managed Access Points Comparison:




Ceiling-Mount

Wall Plate

  EWS371AP EWS370AP EWS360AP EWS350AP EWS310AP EWS300AP EWS510AP EWS500AP
Standards 802.11a/b/g/n/ac 802.11a/b/g/n/ac 802.11a/b/g/n/ac 802.11a/b/g/n/ac 802.11a/b/g/n 802.11b/g/n 802.11a/b/g/n 802.11b/g/n
Frequency 2.4 & 5 GHz 2.4 & 5 GHz 2.4 & 5 GHz 2.4 & 5 GHz 2.4 & 5 GHz 2.4 GHz 2.4 & 5 GHz 2.4 GHz
2.4 GHz Max. Data Rate 800 Mbps 800 Mbps 450 Mbps 300 Mbps 300 Mbps 300 Mbps 300 Mbps 300 Mbps
5 GHz Max. Data Rate 1,733 Mbps 1,733 Mbps 1,300 Mbps 867 Mbps 300 Mbps N/A 300 Mbps N/A
Radio Chains/ Streams 4 x 4:4 4 x 4:4 3 x 3:3 2 x 2:2 2 x 2:2 2 x 2:2 2 x 2:2 2 x 2:2
RF Output Power (2.4 GHz) 27 dBm 27 dBm 28 dBm 26 dBm 29 dBm 29 dBm 20 dBm 20 dBm
RF Output Power (5 GHz) 27 dBm 27 dBm 28 dBm 26 dBm 26 dBm N/A 20 dBm N/A
Ethernet Ports 2 x Gig Port (PoE+) 2 x Gig Port (PoE+) 1 x Gig Port (PoE+) 1 x Gig Port (PoE+) 1 x Gig Port (PoE+) 1 x Gig Port (PoE+) - 1 x 10/100 Mbps Access Port (PoE+)
- 3 x 10/100 Mbps Access Ports
- 1 x Gig Uplink Port (PoE)
- 1 x RJ45 Pass Through Ports
- 1 x 10/100 Mbps Access Port (PoE+)
- 3 x 10/100 Mbps Access Ports
- 1 x Gig Uplink Port (PoE)
- 2 x RJ45 Pass Through Ports
110 Punch Down Block - - - - - - 1 1
Power-overEthernet 802.3at 802.3at 802.3at 802.3at 802.3af/at 802.3af/at 802.3af/at 802.3af/at
Power Consumption (Peak) 21W 21W 22.8W 18W 15.6W 9.6W 10.8W 7.5W
Integrated Antenna - 4 x 3 dBi (2.4 GHz)
4 x 3 dBi (5 GHz)
6 x 5 dBi 4 x 5 dBi 4 x 5 dBi 2 x 5 dBi 2 x 4 dBi (2.4 GHz)
2 x 5 dBi (5 GHz)
2 x 4 dBi
External Antenna 8 x 3 dBi (RP-SMA) - - - - - - -

EzMaster Network Management Software:

Flexible Distributed Network Management

EzMaster Network Management Software expands the flexibility and scalability of Neutron Series EWS Managed Access Points and Switches. EzMaster allows organizations, such as branch offices and managed service providers, to easily and affordably deploy, monitor and manage a large number of Neutron APs, Controller Switches and Managed Smart Switches across geographically diverse properties. Centrally manage an unlimited number of independent distributed networks in the same subnet or crosssubnet from a single, at-a-glance network dashboard, no matter where they're located. Deploy ezMaster locally, remotely or via a Cloud-based service with or without an onsite controller.

Powerful, Scalable Options

EzMaster scales with your growing business needs. Manage 1,000+ Neutron EWS Access Points and Switches and 10,000+ concurrent users. Together, Neutron APs, Switches and ezMaster provide a flexible, fully integrated solution with redundancy support and future expandability for broader device connectivity.

ezMaster Screenshots

Simplified Device Management

EzMaster Network Management Software makes centralized device management easy. How? Through centralized bulk configuration, provisioning and monitoring, a comprehensive at-a-glance network dashboard, rich analytics and reporting, and much more.

EzMaster Software Features

  • Centralized Management
    • Configure, Managed & Monitor 1,000+ Neutron Devices
    • Cross-Network AP Management
    • AP Group Configuration
  • Access Point Configuration & Management
    • Auto Channel Selection
    • Auto Tx Power
    • Background Scanning
    • Band Steering (Auto Band Steering & Band Balancing)
    • Client Isolation
    • Client Limiting
    • Fast Roaming
    • L2 Isolation
    • LED On/Off Control
    • Multiple SSID
    • RSSI Threshold
    • Secure Guest Network
    • Traffic Shaping
    • VLAN Isolation
    • VLAN Tag
  • Comprehensive Monitoring
    • Device Status Monitoring
    • Floor Plan View
    • Map View
    • Rogue AP Detection
    • System Status Monitoring
    • Visual Topology View
    • Wireless Client Monitoring
    • Wireless Coverage View
    • Wireless Traffic & Usage Statistics
  • Management & Maintenance
    • Bulk Firmware Upgrade
    • Captive Portal
    • Email Alert
    • ezRedundancy
    • Kick/Ban Clients
    • One-Click Update
    • Remote Logging
  • Seamless Migration
  • SmartSync Redundancy
  • Syslog

System Requirements

Recommended environment for managing up to 500 APs

  • CPU: Intel Core i3 3.6 GHz dual-core or above
  • RAM: 4 GB minimum
  • HDD: 500 GB (actual requirement dependent on log size)
  • OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Recommended environment for managing up to 1,000+ APs

  • CPU: Intel Core i5 3.2 GHz quad-core or above
  • RAM: 4 GB minimum
  • HDD: 500 GB (actual requirement dependent on log size)
  • OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Browser Requirements

  • Internet Explorer 10 or better
  • Firefox 34.0 or better
  • Chrome 31.0 or better
  • Safari 8.0 or better

Network Topology Requirements

  • At sites where APs are deployed: A DHCP-enabled network for APs to obtain an IP address
