EnGenius EWS2910P-FIT
EnGenius Fit 55W Gigabit PoE 8 Port Switch
EnGenius Products
EnGenius EWS2910P-FIT
More pricing below, click here!
Overview:
Layer 2 plus switch comes with 2 SFP uplink ports and multiple management options
The EnGenius Fit Managed Switch EWS2910P-FIT is an 8-port Gigabit PoE Layer 2 plus switch with a 55W PoE budget and 2 SFP uplink ports. It offers multiple management options for small business network environments, allowing you to select the cloud or on-premises management option that best suits your needs. With its business-class features, the EnGenius Fit Managed Switch provides secure, reliable, and high-performance switching while reducing capital and operating expenses for cost-conscious small businesses.
Product Highlights
- 8 10/100/1000 Base-T GbE ports
- Full-featured layer 2 plus switching
- 802.3af PoE ready on all ports with 55W PoE budget
- 20 Gbps switching capacity
- Setup in minutes with app-based step by step instructions
- Quick-scan device register, remote monitoring and troubleshooting
- Real-time system metrics, analytics and remote configurations
- Hybrid switch supports multiple management options
- From anywhere cloud visibility and control
- Monitor a site or multiple sites with no recurring cost or licensing fee
- Security - access control list/port security; 802.1x authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
Specifications:
| EnGenius EGS2910P Specifications | |
|---|---|
| Port Standards | 802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 10000Base-T Ethernet 802.3x Full-Duplex Flow Control |
| Network Ports | 8 10/100/1000 Mbps Ports 2 10/100/1000 Mbps SFP Ports |
| PoE Capable Ports | 1-8 (802.3af only) All Gigabit Ethernet ports can output up to 15 Watts |
| PoE Budget | 55 W |
| SDRAM | 256MB |
| Flash Memory | 32MB |
| Power Source | 100 ~ 240VAC, 50-60Hz |
| Physical Interface | |

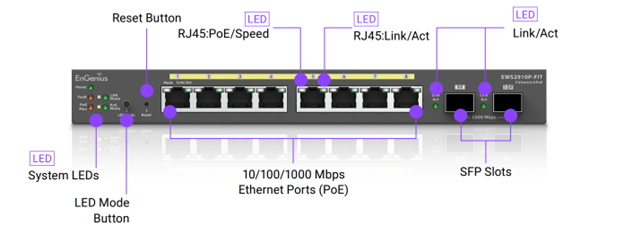

| LED Indicators | Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED |
| Ports | Link/Activity/Speed (per Ethernet port) |
| Software Features | |
| Multiple IP Interface | 20 IPv6 address |
| ARP Table | Max. 192 ARP entries |
| Static ARP | Static 192 ARP entries |
| IPv4 Static Route | Max. 59 entries |
| IPv6 Static Route | Max. 5 entries |
| Software Features (L2 Features) | |
| MAC Address Table | 8k |
| Jumbo Frame | 9k |
| Multicast Group | Max 256 groups |
| Port Security | Max. 256 Entries |
| SSL Certificate | Certificate/Key Update |
| Layer 2 Features | 802.1Q VLAN tagging VLAN Table Port-based VLAN Voice VLAN GARP VLAN Registration Protocol 802.1d Spanning tree:
802.3ad Link Aggregation Loopback Detection |
| L3 Feature | IGMP Snooping MLD Snooping DHCP Snooping DHCP Relay Static Route |
| Port Settings | Multicast Filtering EEE Port Isolation Port Mirror Jumbo Frames LLDP |
| Security | 802. 1X Radius Authentication Protocol Web
Command Line Interface (CLI):
Radius Server DoS Prevention |
| System Settings | IP Settings:
ARP Statistics Simple Network Time Protocol (SNTP) |
| Analyze | Log:
|
| Diagnostic | Cable Diagnostics Ping Test IPv6 Ping Test Trace Route Connection Diagnostic |
| Access Control List (ACL) | MAC Based ACL MAC ACE IPv4 ACL IPv4 ACE IPv6 ACL IPv6 ACE ACL (Port) Binding |
| SNMP | SNMP v1/v2c/v3 Support |
| RMON | RMON 1,2,3,9 |
| QoS | CoS Mapping DSCP Mapping Port CoS Bandwidth Control Storm control Advanced Mode: Class Mapping |
| MIB/RFC Standards | RFC1213 RFC1493 RFC1757 RFC2674 RFC2863 |
| Environmental & Physical | |
| Temperature Range | Operating: 32 to 104°F (0°C to 40°C) |
| Humidity (Non-Condensing) | 5% - 95% |
| Package Contents | (1) Fit L2+ Managed 8 Ports EWS2910P-FIT PoE Gigabit Switch (1) Power Cord Quick Start Guide QR Code FitXpress Cloud-Based Mobile App QR Code |
| Device Dimensions & Weights | |
| EWS2910P-FIT Device | Weight: 1.36 Ibs (0.62 kg) Width: 9.44” (240 mm) Length: 4.13” (105 mm) Height: 1.06” (27 mm) |
| Certifications | CE, FCC, IC |
| Warranty | 1 Year |
Documentation:
Download the EnGenius EWS2910P-FIT Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
