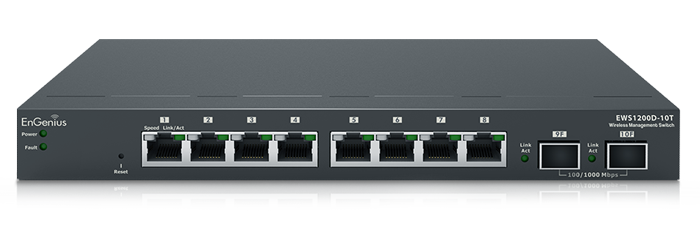

EnGenius EWS1200D-10T
8-Port Managed Gigabit Smart Switch With WLAN Controller & Centralized Network Managemen

EnGenius EWS1200D-10T

Sorry, this product is no longer available, Please, contact us for a replacement product!

Overview:

The Neutron EWS1200D-10T Managed Smart Switch offers simplified network configuration, monitoring, and management options with an easy-to-use Web interface. Locally manage wireless APs via the built-in controller and centrally manage wired and wireless networks via ezMaster.

Product Highlights

  • (8) 10/100/1000 Mbps Gigabit Ethernet Ports; 2 SFP Ports
  • (4) Types of In-Switch Network Management Available
  • 20 Gbps Switching Capacity
  • Network Troubleshooting, Monitoring & Email Alerts

Simplified Management & Optimal Network Performance for Small-to-MidSize Organizations

The EnGenius Gigabit Managed Smart Switches with WLAN Controller feature 8-, 24- or 48- Gigabit ports and support full feature Layer 2 manageability. The Switches offer simplified network configuration, monitoring, and management options plus ezMaster Centralized Network Management Software, a robust, easy-to-use Web-based tool. Enterprise-class features optimize network efficiency ensuring peak performance while reducing expenses for cost-conscious SMB organizations.

Whether installed in small or mid-size organizations such as medical offices, warehouses, or large homes, the Smart Switch’s design and easy-to-use interface enables effortless and efficient deployment and operation. Organizations with limited IT support and budgets can create a reliable, efficiently managed network in no time.

Features and Benefits:

  • 10/100/1000 Mbps GbE Ports
  • Onboard Tools Manage Wired & Wireless Devices
  • SFP Slots Support Extended Connectivity via Fiber Uplinks, Redundancy & Failover
  • Network Troubleshooting, Monitoring, & Email Alerts
  • Centrally Manage Wired & Wireless Networks via ezMaster
  • Configure, Manage & Monitor Up to 50 Neutron EWS APs Locally via Controller Mode
  • Security: Access Control List/Port Security; 802.1X & RADIUS Authentication
  • IGMP & MLD Snooping Provides Advanced Multicast Filtering & Network Efficiency
  • 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing
  • Voice VLAN for Fast, Reliable Deployment of VoIP Services
  • Advanced QoS with IPv4/IPv6 Ingress Traffic Filtering (ACLs) & Prioritization
  • Energy Efficient Ethernet (802.3az) Improves Energy Savings with Compliant Devices
  • Dual Firmware Images Improve Reliability & Network Uptime
  • Silent, Fanless Design (8/24 port) & Smart Fan Feature (48 port)

High Performance Gigabit & Management Flexibility

Each of the Switch’s Gigabit Ethernet ports provide seamless, high-speed access for networked devices while reducing bottlenecks that can interrupt communications. The Switch offers deployment flexibility and four types of management options while efficiently supporting both wired and wireless networks.

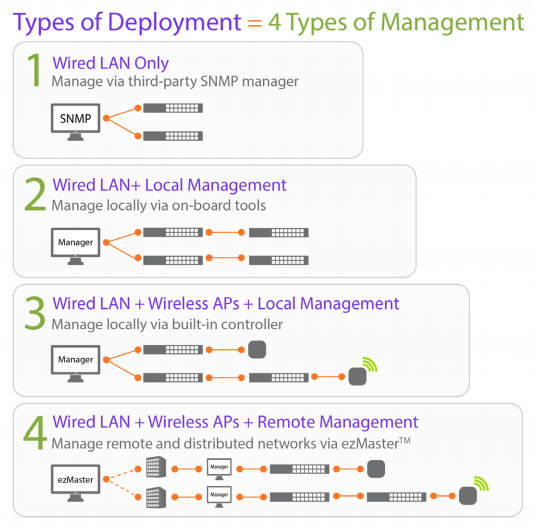

Types of Deployment = 4 Types of Management

Wireless Device Management

Quickly discover, configure, and monitor Neutron EWS Access Points and manage up to 50 devices within the local subnet through the Switch’s builtin wireless network controller features.

Centrally Manage the Wired & Wireless Network

Remotely manage Neutron EWS Access Points, Switches, and IP Cameras through ezMaster Network Management Software. Centrally manage hundreds of EWS devices across the network regardless of its size or location with no licensing or subscription fees.

VLAN/Voice & Quality of Service

Segment the network by departments or traffic types for increased performance and security with 802.1Q VLAN. Prioritize compliant VoIP and video traffic using 802.1p Class of Service (CoS) ensuring high bandwidth, time-sensitive data is forwarded immediately for clear, smooth voice and video delivery.

Network Security

Establish a Guest VLAN to limit Internet resources for visitors while securing the network from sophisticated Trojans and malware that can use guest’s mobile devices to attack the network.

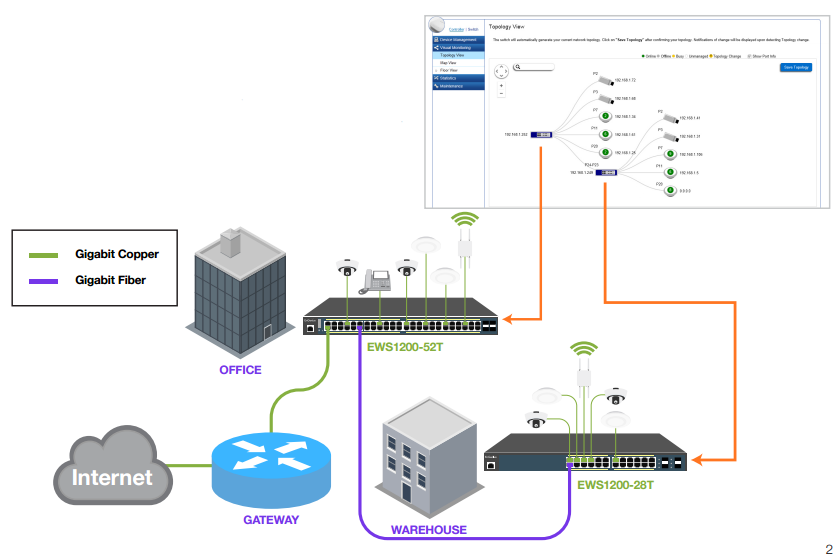

Deployment:

Deployment

Specifications:

EnGenius EWS1200D-10T Specifications

EnGenius EWS1200D-10T Specifications
Port Standards 802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports 8 10/100/1000 Mbps Ports
2 10/100/1000 Mbps SFP Ports
Performance Switching Capacity: 20 Gbps
Forwarding Mode: Store-and-Forward
SDRAM: 256 MB
Flash Memory: 32 MB
Packet Buffer Memory: 1.5 MB
Address Database Size: 8,000 MAC Addresses
Power Source DC 12V/1A

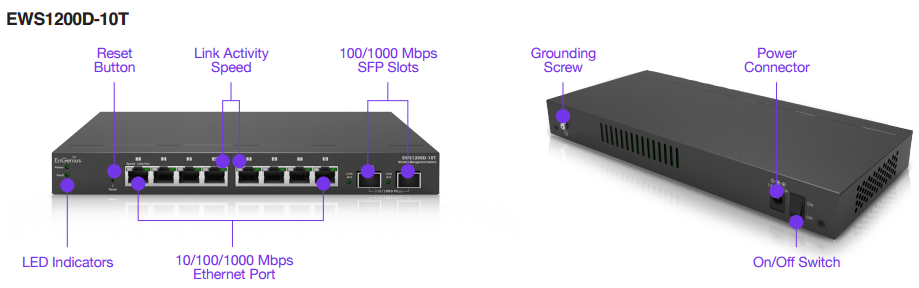

Physical Interface
LED Indicators Reset Button
Desktop/Wall Mount
LED Indicators Device:
Power LED
Fault LED
Ports Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
Environmental & Physical
Temperature Range Operating: 32 to 104° F/0 to 40° C
Storage: -4 to 158° F/-20 to 70 ° C
Humidity (Non-Condensing) 5% - 95%
Package Contents (1) EWS1200D-10T GigE Managed Smart Switch
(1) Power Cord
(1) Rack Mount Kit
(1) Quick Installation Guide
Device Dimensions & Weights
Device Weight: 1.34 Ibs. (0.61 kg)
Width: 9.44” (240 mm)
Depth: 4.13” (105 mm)
Height: 1.06” (27 mm)
Warranty 1 Year
Certifications CE
FCC
Software Features
Layer 2 Features
  • 802.3ad Link Aggregation
    - Maximum of 8 Groups/8 Ports per Group
  • Port Mirroring
    - One-to-One
    - Many-to-One
  • Spanning Tree Protocol
    - 802.1D Spanning Tree Protocol (STP)
    - 802.1w Rapid Spanning Tree Protocol (RSTP)
    - 802.1s Multiple Spanning Tree Protocol (MSTP)
  • MAC Address Table
    - 8K Entries
  • Static MAC Address
    - 256 Entries
  • 802.1ab Link Layer Discovery Protocol
  • IGMP Snooping
    - IGMP v1/v2/v3 Snooping
    - Supports 4094 IGMP Groups
    - IGMP per VLAN
    - IGMP Snooping Query
    - IGMP Snooping Fast Leave
  • MLD Snooping
    - MDL Snooping v1/v2
    - Supports 4,094 MLD Groups
    - IGMP per VLAN
  • Jumbo Frame
    - Up to 9,216 bytes
  • 802.3x Flow Control
  • 802.3az Energy Efficient Ethernet
  • VLAN
    - 802.1Q Support
  • VLAN Group
    - Max 4,094 Static VLAN Groups
  • Voice VLAN
QoS
  • 802.1p Quality of Service
    - 8 Queues per Port
  • Queue Handling
    - Strict
    - Weighted Round Robin (WRR)
  • QoS Based on:
    - 802.1p Priority
    - DSCP
  • Bandwidth Control
    - Port-Based (Ingress/Egress, 64 Kbps~1000 Mbps)
  • Broadcast/Unknown Multicast/Unknown Unicast Storm Control
  • Access Control List (ACL) Layer 2/3
    - Supports Maximum 50 Entries (ACL)
    - Supports Maximum 256 Entries (ACE)
  • ACL Based on:
    - MAC Address
    - VLAN ID
    - 802.1p Priority
    - Ethertype
    - IP Address
    - Protocol Type
    - DSCP
Security
  • 802.1X
    - Guest VLAN
    - Port-Based Access Control
  • Supports RADIUS Authentication
  • Port Security
    - Up to 256 MAC Addresses per
  • Port Port Isolation
  • DoS Attack Prevention
  • BPDU Attack Prevention
  • Monitoring
    - Port Statistics
    - System Log
    - RMON
Management
  • Web Graphical User Interface (GUI)
  • Command Line Interface (CLI)
  • BootP/DHCP Client/DHCPv6 Client
  • SSH Server
  • Telnet Server
  • TFTP Client
  • HTTPS
  • SNMP
    - Supports v1/v2c/v3
    - SNMP Trap
    - SNTP
    - Configuration Restore/Backup
    - Dual Images
  • Diagnostic
    - Cable Diagnostic
    - Ping Test
    - Trace Route
  • MIB/RFC Standards
    - RFC1213
    - RFC1493
    - RFC1757
    - RFC2674
    - RFC 2863
Wireless Management Features
AP Supported (up to 50 APs in controller mode)
  • Access Point Auto Discovery & Provisioning
  • Access Point Auto IP-Assignment
  • Access Point Group Management
  • Remote Access Point Rebooting
  • Access Point Device Name Editing
  • Access Point Radio Settings
  • Band Steering
  • Traffic Shaping
  • RSSI Threshold
  • Fast Roaming
  • Access Point Client Limiting
  • Client Fingerprinting
  • Wireless Security (WPA/WPA2 Enterprise, WPA/WPA2 PSK)
  • AP VLAN Management
  • VLANs for Access Point- Multiple SSIDs
  • Secured Guest Network
  • Capture Portal
  • Access Point Status Monitoring
  • Rogue AP Detection
  • Email Alert
  • Wireless Client Monitoring
  • Background Scanning
  • Wireless Traffic & Usage Statistics
  • Real-Time Throughput Monitoring
  • Visual Topology View
  • Floor Plan View
  • Wireless Coverage Display
  • Map View
  • Secure Control Messaging
  • SSL Certificate
  • Local MAC Address Database
  • Remote MAC Address Database (RADIUS)
  • Unified Configuration Import / Export
  • Intelligent Diagnostics
  • Bulk Firmware Upgrade Capability
  • One-Click Update
  • Kick/Ban Clients

Gigabit Managed Switches Comparison:


  EWS1200-52T EWS1200-28T EWS1200D-10T
10/100/1000 Base-T Ports 48 24 8
100/1000 SFP Ports 4 4 2
RJ45 Console Port 1 RJ45 1 RJ45 -
Rackmount 19” 1U 19” 1U 9.44” (desktop)
Total PoE Budget 740W 370W 185W
Switching Capacity 104 Gbps 56 Gbps 20 Gbps
Forwarding Mode Store-and-forward Store-and-forward Store-and-forward
MAC Address Table 8k 8k 8k
Packet Buffer Memory 1.5 MB 512 KB 512 KB
Power Source 60W Internal Power 30W Internal Power DC12V/1A External
Full Load Power Consumption 54.02 Watts 24.48 Watts 6.9 Watts
Management ezMaster Network Management Software, Web GUI, CLI, SNMP, RMON, HTTPS, Dual Image
Wireless Controller Supports EWS APs Up to 50 Up to 50 Up to 50
Advanced QoS with IPv4/ IPv6 Multicast Filtering IGMP and MLD Snooping
Auto-VoIP
VLANs Max 4094 Static Groups, Voice VLAN
Network Standards
  • IEEE 802.3 Ethernet
  • IEEE 802.3i 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX Fast Ethernet
  • IEEE 802.3ab 10000Base-T Gigabit Ethernet
  • IEEE 802.3x Full-Duplex Flow Control
  • IEEE 802.3z Gigabit Ethernet 1000Base-SX/LX
  • IEEE 802.3ad Link Aggregation (Trunking)
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
  • IEEE 802.1Q VLAN Tagging
  • IEEE 802.1ab Link Layer Discovery Protocol (LLDP)
  • IEEE 802.1p Quality of Service
  • IEEE 802.1X RADIUS Access Control
  • IEEE 802.3az Energy Efficient Ethernet

EzMaster Network Management Software:

Flexible Distributed Network Management

EzMaster Network Management Software expands the flexibility and scalability of Neutron Series EWS Managed Access Points and Switches. EzMaster allows organizations, such as branch offices and managed service providers, to easily and affordably deploy, monitor and manage a large number of Neutron APs, Controller Switches and Managed Smart Switches across geographically diverse properties. Centrally manage an unlimited number of independent distributed networks in the same subnet or crosssubnet from a single, at-a-glance network dashboard, no matter where they're located. Deploy ezMaster locally, remotely or via a Cloud-based service with or without an onsite controller.

Powerful, Scalable Options

EzMaster scales with your growing business needs. Manage 1,000+ Neutron EWS Access Points and Switches and 10,000+ concurrent users. Together, Neutron APs, Switches and ezMaster provide a flexible, fully integrated solution with redundancy support and future expandability for broader device connectivity.

ezMaster Screenshots

Simplified Device Management

EzMaster Network Management Software makes centralized device management easy. How? Through centralized bulk configuration, provisioning and monitoring, a comprehensive at-a-glance network dashboard, rich analytics and reporting, and much more.

EzMaster Software Features

  • Centralized Management
    • Configure, Managed & Monitor 1,000+ Neutron Devices
    • Cross-Network AP Management
    • AP Group Configuration
  • Access Point Configuration & Management
    • Auto Channel Selection
    • Auto Tx Power
    • Background Scanning
    • Band Steering (Auto Band Steering & Band Balancing)
    • Client Isolation
    • Client Limiting
    • Fast Roaming
    • L2 Isolation
    • LED On/Off Control
    • Multiple SSID
    • RSSI Threshold
    • Secure Guest Network
    • Traffic Shaping
    • VLAN Isolation
    • VLAN Tag
  • Comprehensive Monitoring
    • Device Status Monitoring
    • Floor Plan View
    • Map View
    • Rogue AP Detection
    • System Status Monitoring
    • Visual Topology View
    • Wireless Client Monitoring
    • Wireless Coverage View
    • Wireless Traffic & Usage Statistics
  • Management & Maintenance
    • Bulk Firmware Upgrade
    • Captive Portal
    • Email Alert
    • ezRedundancy
    • Kick/Ban Clients
    • One-Click Update
    • Remote Logging
  • Seamless Migration
  • SmartSync Redundancy
  • Syslog

System Requirements

Recommended environment for managing up to 500 APs

  • CPU: Intel Core i3 3.6 GHz dual-core or above
  • RAM: 4 GB minimum
  • HDD: 500 GB (actual requirement dependent on log size)
  • OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Recommended environment for managing up to 1,000+ APs

  • CPU: Intel Core i5 3.2 GHz quad-core or above
  • RAM: 4 GB minimum
  • HDD: 500 GB (actual requirement dependent on log size)
  • OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Browser Requirements

  • Internet Explorer 10 or better
  • Firefox 34.0 or better
  • Chrome 31.0 or better
  • Safari 8.0 or better

Network Topology Requirements

  • At sites where APs are deployed: A DHCP-enabled network for APs to obtain an IP address

Documentation:

Download the EnGenius Neutron Gigabit Managed Switches Datasheet (PDF).
