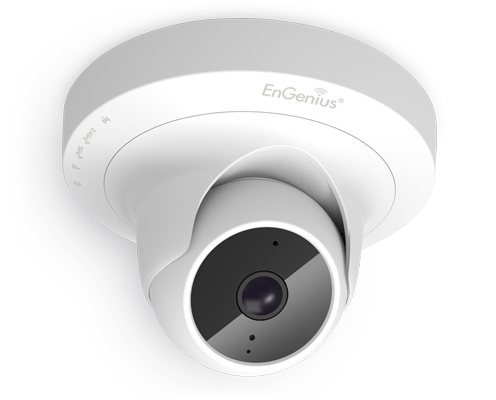

EnGenius EWS1025CAM
11ac Managed Wireless Access Point With Integrated 2-MP IP Camera

Features & Benefits:

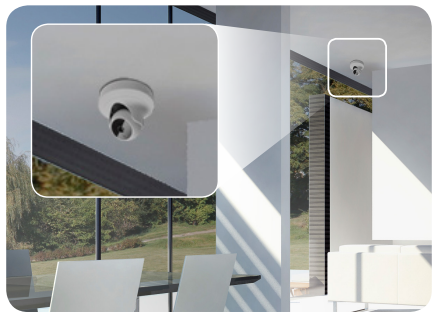

Dual-Purpose System

The Mesh Surveillance System provides a dual-functional, aesthetically pleasing option for large residences, commercial, retail, and anywhere both Wi-Fi and surveillance are desired. Utilize the EWS1025CAM’s mesh networking to provide these resources in entryways, hallways, stairwells, and lobbies and in retrofit applications such as landmark buildings, museums, and locations where long wire runs are prohibitive.

Increase Network Speed & Capacities

The onboard access point features high-performance 2x2 11ac dual-band Wi-Fi speeds ensuring smooth HD video delivery and ultra-fast file loading. The System supports greater user capacities while efficiently steering 5 GHz-capable network traffic off the heavily congested 2.4 GHz frequency band.

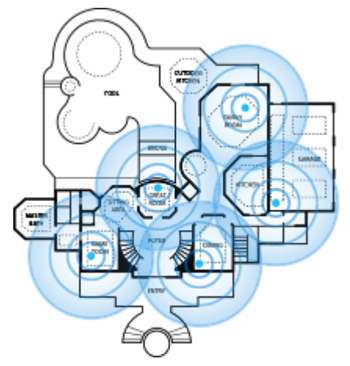

Wireless Mesh Flexibility

Easily create an adaptive mesh network when connecting multiple EWS1025CAMs or other Neutron mesh-compatible APs, and extend wireless access to larger areas without running cable to every unit. Employ mesh’s auto-sensing technology to add devices quickly, optimize routes between mesh units, and self-heal in the event a network node is down.

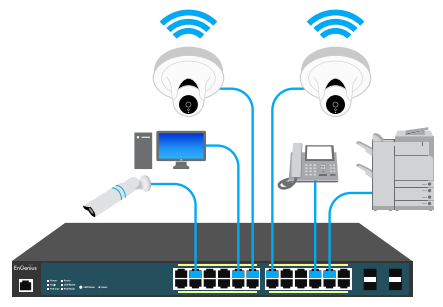

Reduce Wiring Challenges with Power-over-Ethernet

The System is designed to reduce wiring challenges and installation time and costs with a single cable run. Power each unit via one Ethernet cable with 802.3at/af Power-over-Ethernet (PoE) up to 325 feet from the power source or with a DC power input.

Secure Guest Networks & Workgroups

Establish and secure Guest Networks and block access to central computers and servers. Limit Internet resources for visiting guests and ensure your network is secure from sophisticated Trojans and malware that can use guest’s mobile devices to attack your network.

Highly Defined Images & Clear Day/Night Viewing

The EWS1025CAM features a 2-MP Progressive Scan CMOS sensor and 1920 x1080P HD video, which ensures precise image details and smooth video playback. With its powerful, 24-piece built-in IR LED illuminators, the Mesh Surveillance System transmits clear, distinct images day or night in low light or total darkness up to 65 feet.

Motion & Audio Detection Triggers Provide Instant Proof

To immediately capture suspicious activity, the EWS1025CAM supports motion and audio detecting-triggers, to automatically activate a recording of the covered area ensuring all activity is monitored. Its built-in microphone can hear events giving you a more accurate representation of a situation.

EnViewer Mobile App

Remote Viewing & Push Notifications
Remotely view and monitor up to four (4) cameras simultaneously and instantly record video with EnGenius’ free EnViewer Mobile App. View, record and receive motion or audio-triggered event alerts directly to your mobile device for instant notification of events-in-progress.

Zone Coverage
Set precise zone coverage within designated areas to record activity or detect motion near entryways or around windows within the camera’s field of view. Customize sensitivity in each zone for greater control and set motion and audio detection mobile alerts.

Video Management Software (VMS)

Monitor Up to 16 Cameras Simultaneously
EnGenius’ 16-Channel Video Management Software is included free with the Neutron Mesh Surveillance System. Streamline camera setup and configuration with the VMS’ Discovery Tool. Import building floor plans to create a camera location map through eMap and easily monitor the entire camera network regardless of its location. Additional features:

• Optional Split-Screen Camera Views
• Monitor Up to 16 Cameras Simultaneously
• View Live Monitoring, Record Video & Playback Options
• Quickly Search Archived Video via Time Bar
• Schedule Recordings

Network Management

Manage Up to 50 APs with Neutron Managed Switches
Neutron Switches also act as wireless controllers capable of managing up to 50 Neutron EWS1025CAMs and other Neutron EWS Access Points. In controller mode, IT administrators have access to all connected Neutron devices and a full array of Layer 2 management tools. Choose between PoE+ and non-PoE switch models with flexible deployment and management options.

Specifications:

EnGenius EWS1025CAM Specifications
Standards	IEEE 802.11b/g/n on 2.4 GHz IEEE 802.11a/n/ac on 5 GHz IEEE 802.3at/af IEEE 802.11r IEEE 802.11k IEEE 802.11i IEEE 802.11x
Memory Capacity	Micro SD/SDXC – (up to 64G)
Antenna	5dBi 5 GHz & 5dBi 2.4 GHz Internal High-Gain Antennas

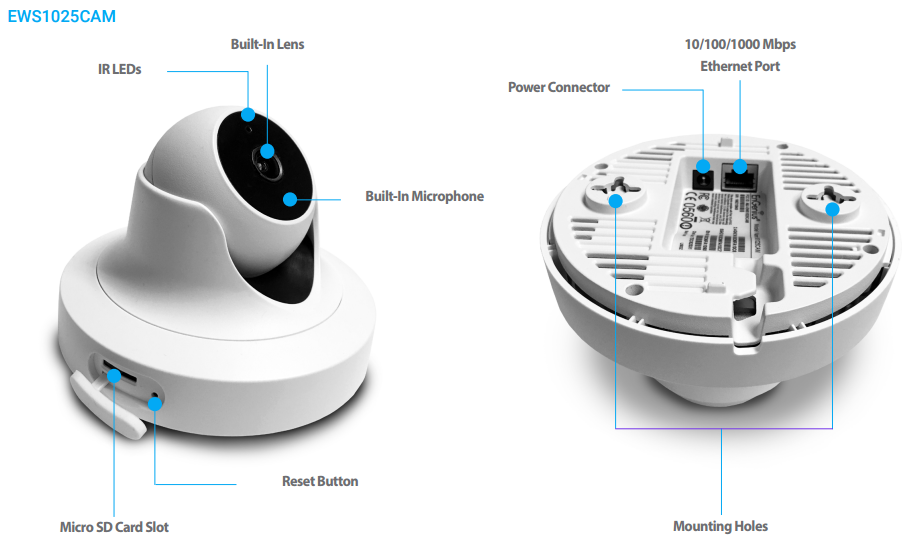

Physical Interface	1 x 100/1000 Gigabit Ethernet Port - Supports 802.3at/af PoE Input 1 x Reset Button 1 x Power Connector 1 x Micro SD/SDXC Slot 24 Pcs IR LEDs 1x Embedded Microphone
LED Indicators	1 x Power 1 x 2.4 GHz 1 x 5 GHz 1 x Ethernet 1 x Mesh
Power Source	24V Proprietary Compliant Source 12VDC/1.5A Active Ethernet (PoE)
Camera
Image Sensor	Sony 1 /2.9” 2-Megapixel Progressive Scan CMOS
Lens	Fixed Board Lens Fixed-Focus, f=2.8 mm / F2.0
F.O.V.	120° (diagonal)
IR Illuminator	24 Pcs LEDs, Up to 65 Feet
Day/Night	Removable IR-Cut Filter
Minimum Illumination	Color (IR-Off): 0.01 Lux / F2.0 B/W (IR-On): 0 Lux / F2.0
Shutter Time	1/2 sec. to 1/10,000 sec.
Video
Compression	H.264/MJPEG
Stream	2x Video Streams
Frame Rates	Up to 30 FPS at 1920 x 1080P
Image Settings	Adjustable Image Size, Quality & Bit Rate
Configurable	Brightness Sharpness Contrast White Balance Saturation Exposure AGC/AWB/AES Flip & Mirror Time Stamp & Text Caption Overlay Auto/Manual Day & Night Mode 3D Noise Reduction Low Light Compensation (LLC)
Audio
Audio Streaming	1-Way
Interface	Built-In Microphone
Networking
Wireless & Radio Specifications	Dual-Concurrent Radio
Operation Modes	Mesh Access Point/Access Point Standalone: Access Point, Client Bridge, WDS Access Point, WDS Bridge, WDS Station
Transmit Power	Up to 21dBi on 2.4 GHz Up to 19dBi on 5 GHz Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams	2x2:2
Supported Data Rates (Mbps)	2.4 GHz: Max 300 5 GHz: Max 867 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1~2)
Supported Radio Technology	802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
Channelization	802.11ac with 20/40/80 MHz channel width 802.11n with 20/40 MHz channel width 802.11a/b/g with 20 MHz channel width
Supported Modulation	802.11b: BPSK, QPSK, CCK 802.a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Management
Multiple BSSID	Supports up to 16 SSIDs, 8 SSIDs per Radio
VLAN Tagging	Supports 802.1q SSID-to-VLAN tagging VLAN Pass through
Spanning Tree	Supports 802.1d Spanning Tree Protocol
QoS	Compliant with IEEE 802.11e Standard WMM
SNMP	v1, v2c, v3
MIB	I/II, Private MIB
Management Features
Deployment Options	Standalone (Individually Managed) Managed Mode (with Neutron Series Switch/ezMaster)
Stand-Alone Management Features	Auto-Channel Selection Wireless STA (Client) Connection List Guest Network Fast Roaming (802.11k & 802.11r) Pre-Authentication (802.11i, 802.11x) PMK Caching (802.11i) RSSI Threshold Band Steering Traffic Shaping VLANs for Access Point – Multiple SSIDs Backup/Restore Settings Auto Reboot E-Mail Alert
Wireless Management Features (with ezMaster & Neutron Switch)	AP Auto Discovery and Provisioning AP Auto IP Assignment AP Cluster Management Remote AP Rebooting AP Device Name Editing AP Radio Settings Band Steering Traffic Shaping Fast Roaming (802.11k & 802.11r) Pre-Authentication (802.11i, 802.11x) PMK Caching (802.11i) RSSI Threshold AP Client Limiting Client Fingerprinting AP VLAN Management VLANs for AP - Multiple SSIDs Secured Guest Network Captive Portal Access Point Status Monitoring Rogue AP Detection Wireless Client Monitoring Background Scanning Auto Transmit Power Auto Channel Email Alert Wireless Traffic & Usage Statistics Real-time Throughput Monitoring SmartSync Redundancy Visual Topology View Floor Plan View Map View Wireless Coverage Display Secure Control Messaging (SSL Certificate) Local MAC Address Database Remote MAC Address Database (RADIUS) Unified Configuration Import/Export Bulk Firmware Upgrade Capability One-Click Update Intelligent Diagnostics Kick/Ban Clients Wi-Fi Scheduler Traffic Shaping
Configuration	Web Interface (HTTP) CLI (Telnet)
Control Features	Managed Mode (by Neutron Switch/ezMaster) Band Steering Auto-Reboot One-Click Firmware Upgrade Firmware Upgrade: Web Interface or CLI (FTP/HTTP)
Security	WEP Encryption (64/128/152 bit) WPA/WPA2 Enterprise (PSK using TKIP or AES) Hide SSID in Beacons MAC Address Filtering, Up to 50 MACs per SSID SSH Support Client Isolation
Supporting Protocol	IPv4, TCP, UDP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, UPnP, NFS/Samba Client, QoS/DSCP, RTP, RTSP, 3GPP, PPPoE, Time Zone Management ONVIF Compatible (Profile S)
Alarm & Event/Recording
Event Trigger	Motion/Tamper/Audio Detection
Event Notification	Email/Push Notifications
Event Actions	File Upload to NFS/SAMBA/FTP/SMT/Local SD Card/EnGenius Cloud & Play Audio EnGenius Simple Smart Recording (Only for EnGenius Cloud Series Routers/Gateways)
Video Buffer	5-Seconds Pre-Alarm & Post-Alarm
Video Playback	PC/iPhone/Android via EnViewer App
Viewing System Requirements	Operating System Microsoft Windows XP/2000/2003/Vista/7/8
Web Browser	IE, Safari, Chrome, Firefox, Opera
Video Management Software	Microsoft Windows XP/2000/2003/Vista/7/8/10
EnViewer Mobile APP	iOS/Android Devices Live Viewing for Up to 5 Clients
Environmental & Physical
Temperature Range	Operating: 32°F to 122°F, 0°C to 50°C
Humidity (non-condensing)	Operating: 80% or less Storage: 80% or less
Device Dimensions & Weights
Device	Weight: 1.11 lbs. Diameter: 5.27" (134 mm) Height: 3.81" (97 mm)
Package Contents	EWS1025CAM 12V/1.5A Power Adapter Mounting Bracket Mounting Screw Set T-Rail Mounting Kit RJ45 Ethernet Cable Quick Installation Guide
Certifications	FCC CE

EzMaster Network Management Software:

Flexible Distributed Network Management

EzMaster Network Management Software expands the flexibility and scalability of Neutron Series EWS Managed Access Points and Switches. EzMaster allows organizations, such as branch offices and managed service providers, to easily and affordably deploy, monitor and manage a large number of Neutron APs, Controller Switches and Managed Smart Switches across geographically diverse properties. Centrally manage an unlimited number of independent distributed networks in the same subnet or crosssubnet from a single, at-a-glance network dashboard, no matter where they're located. Deploy ezMaster locally, remotely or via a Cloud-based service with or without an onsite controller.

Powerful, Scalable Options

EzMaster scales with your growing business needs. Manage 1,000+ Neutron EWS Access Points and Switches and 10,000+ concurrent users. Together, Neutron APs, Switches and ezMaster provide a flexible, fully integrated solution with redundancy support and future expandability for broader device connectivity.

Simplified Device Management

EzMaster Network Management Software makes centralized device management easy. How? Through centralized bulk configuration, provisioning and monitoring, a comprehensive at-a-glance network dashboard, rich analytics and reporting, and much more.

EzMaster Software Features

• Centralized Management
  • Configure, Managed & Monitor 1,000+ Neutron Devices
  • Cross-Network AP Management
  • AP Group Configuration
• Access Point Configuration & Management
  • Auto Channel Selection
  • Auto Tx Power
  • Background Scanning
  • Band Steering (Auto Band Steering & Band Balancing)
  • Client Isolation
  • Client Limiting
  • Fast Roaming
  • L2 Isolation
  • LED On/Off Control
  • Multiple SSID
  • RSSI Threshold
  • Secure Guest Network
  • Traffic Shaping
  • VLAN Isolation
  • VLAN Tag
• Comprehensive Monitoring
  • Device Status Monitoring
  • Floor Plan View
  • Map View
  • Rogue AP Detection
  • System Status Monitoring
  • Visual Topology View
  • Wireless Client Monitoring
  • Wireless Coverage View
  • Wireless Traffic & Usage Statistics
• Management & Maintenance
  • Bulk Firmware Upgrade
  • Captive Portal
  • Email Alert
  • ezRedundancy
  • Kick/Ban Clients
  • One-Click Update
  • Remote Logging
• Seamless Migration
• SmartSync Redundancy
• Syslog

System Requirements

Recommended environment for managing up to 500 APs

• CPU: Intel Core i3 3.6 GHz dual-core or above
• RAM: 4 GB minimum
• HDD: 500 GB (actual requirement dependent on log size)
• OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Recommended environment for managing up to 1,000+ APs

• CPU: Intel Core i5 3.2 GHz quad-core or above
• RAM: 4 GB minimum
• HDD: 500 GB (actual requirement dependent on log size)
• OS: Microsoft Windows 7 or later + VMware Player 7.0 or compatible virtualization software

Browser Requirements

• Internet Explorer 10 or better
• Firefox 34.0 or better
• Chrome 31.0 or better
• Safari 8.0 or better

Network Topology Requirements

• At sites where APs are deployed: A DHCP-enabled network for APs to obtain an IP address

Documentation:

Download the EnGenius EWS1025CAM Datasheet (PDF).
