EnGenius ESR300
2.4 GHz Wireless N300 IoT Cloud Router with Built-in Switch and USB Port
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
The ESR300 is a 2.4 GHz Wireless N300 Router with a built-in 4-Port Fast Ethernet switch and Fast Ethernet WAN port. This high-powered Xtra Range™ N300 router is a media sharing platform for connecting home entertainment devices or for computers, smartphones, and tablet PCs away from the home with EnShare™ — Your Personal Cloud.
- Robust and Reliable Wireless Performance
The ESR300 Wireless N300 Home Pod is an Xtra Range 2.4GHz, 4-Port Wireless-N Router with wireless speeds up to 300Mbps. This costeffective router offers robust wired and wireless connectivity and performance for computers, smartphones, tablet PCs and home entertainment devices in a home. - Fast Wired Speed & Shared USB Media
Includes a media streaming USB port to attach storage so connected devices in your home can access and stream video, music, and other media. - Industry-Standard Wireless Security
The ESR300 supports several security features and settings including industry-standard WPA/WPA2 wireless encryption to prevent unauthorized access to the network; a SPI (Stateful Packet Inspection) firewall to block malicious software from the Internet from accessing networked devices; MAC Address filtering to grant only known computers and devices network access; and URL filtering to block access to unwanted or offensive websites. - USB Media Anywhere with EnShare
Attach a storage device to the router's USB port and with EnShare you can start sharing media content like photos, music, or videos throughout the home or even access and download that content when you're away from home to your mobile devices like smartphones or tablet and laptop PCs. EnShare also enables you to upload files to your attached storage device anywhere you can get an Internet connection.
Features:
Wireless N300 Speed
Utilizes 802.11n standard speeds, up to 300 Mbps in the 2.4 GHz frequency band, ideal for media streaming, online gaming, and large file transfers in and around the home.
Fast Ethernet Wired Speeds and EnShare USB Media Sharing
Includes a 4-Port Fast Ethernet Switch and Fast Ethernet WAN port for 10x faster throughput than standard Ethernet. EnShare™ lets you access media content from a storage device attached to the USB port of the ESR300 in the home or even when you're away from home.
More Guest Access Options
Up to four separate and discrete SSIDs can be set to enable friends or visitors to access the Internet while protecting other networked computers or hard drives in the home that may contain private information.
Prioritizes Applications and Maintains Quality of Experience
Intelligent QoS (Quality of Service) prioritizes bandwidth intensive applications like HD video and gaming or bandwidth sensitive applications like VoIP telephone calls.
Industry-Standard Security
WPA and WPA2 wireless encryption, SPI (Stateful Packet Inspection) firewall, Denial of Service blocking and MAC and URL filtering to make your home network safer from intruders or from malicious software attacks from the Internet.
Specifications:
EnGenius ESR300 Specifications | |
---|---|
Standard | |

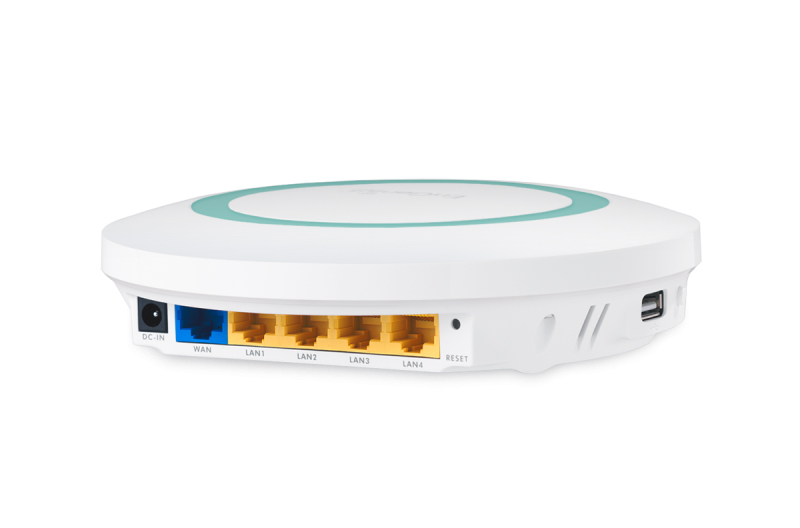

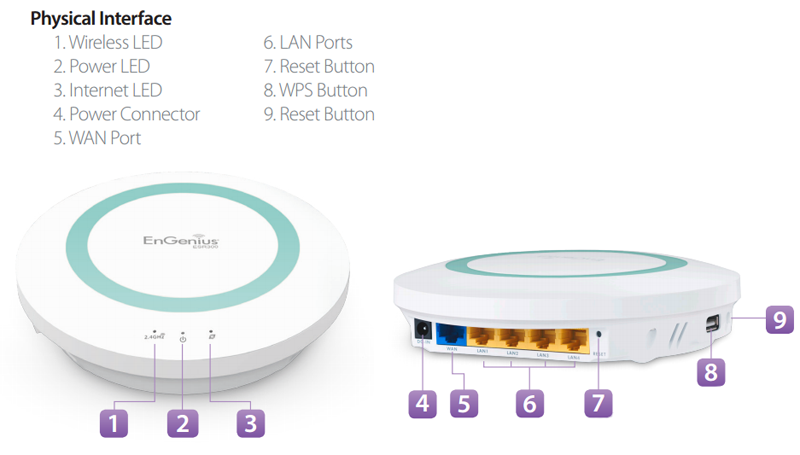

Device Interface | Fast Ethernet WAN Port 4 Fast Ethernet LAN Ports USB2.0 Port Push Button for WPS Reset Button |
IEEE Standards | 802.11b/g/n Up to 300 Mbps wireless speed in the 2.4 GHz frequency band 802.3i/u/ab |
LED Indicator | Power WLAN (Wireless Connection) Internet |
Package Contents | ESR300 Router Power Adapter (12V 1A) Quick Start Guide RJ45 Ethernet Cable |
Power Specification | External Power Adapter DC In, 12V 1A |
Software Features | |
Frequency Bands | 2.400~2.484 GHz (11b/11g/11n) |
Operation Mode | AP Router/WDS |
Wireless Features | Auto Channel Selection Output Power Control WMM (Wireless Multimedia) MSSID (Multiple SSID) |
Security | WEP/WPA-PSK/WPA2-PSK TKIP/AES Hidden SSID MAC Address Filtering 802.1X Authentication DDoS DHCP Server/Client SPI (Static Packet Inspection) NAT Port Forwarding DMZ Port Mapping/Triggering VPN with PPTP, L2TP, IPSec, L2TP over IPSec VPN Tunnels: 5 QoS IP Filtering Port Filtering DDNS IPv6 Pass-through MAC Clone Traffic Monitor WAN Type: PPPoE/DHCP/Static IP USB Features: SAMBA |
Physical/Environmental Conditions | |
Temperature Range | Operating: 32˚F to104˚F, 0˚C to 40˚C Storage: -4˚F to 140˚F, -20˚C to 60˚C |
Humidity (non-condensing) | Operating: 90% or less (Non-Condensing) Storage: 95% or less (Non-condensing) |
Dimensions & Weights | |
Weights & Measures | Weight: 0.5 lbs. Diameter: 6.36” Height: 1.64” |
Certifications | FCC CE IC |
Warranty | 1 Year |
Product Comparison:
Wireless N Pod Routers | ESR300 | ESR350 | ESR600 |
Wireless Speeds | N300 | N300 | N600 (300+300) |
Frequency Bands | Single Band 2.4 GHz |
Single Band 2.4 GHz |
Dual Band 2.4 GHz and 5 GHz |
IEEE Standard | b/g/n | b/g/n | a/b/g/n |
Ethernet Ports | 4 x Fast Ethernet | 4 x Gigabit | 4 x Gigabit |
MSSID | 4 | 4 | 8 |
Power Output | High | High | High |
QoS | Basic | Basic | Events |
Wireless Security (WPA/WPA2) | |||
Xtra Range™ Technology | |||
IPv6 | |||
Parental Control | |||
VPN Lite | |||
Wi-Fi Protected Setup | |||
USB Port for Media Sharing with Computers and Mobile Devices | |||
Ideal for Large Files and Fast Web Surfing | |||
Ideal for Gaming | |||
Ideal for HD Video | |||
Optimized for Simultaneous Media and Device Usage |
Documentation:
Download the EnGenius ESR-300 Datasheet (PDF).
