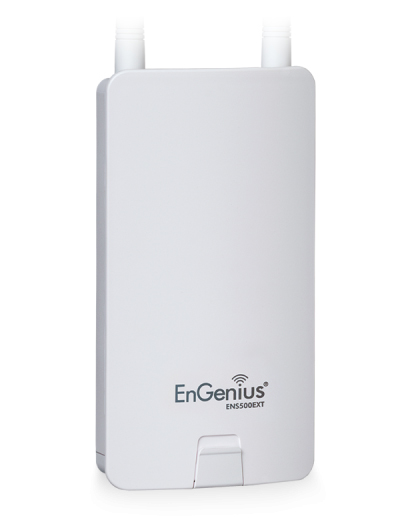

EnGenius ENS500EXT
High-Powered, Long-Range 5 GHz Wireless N300 Outdoor Access Point With 2 External Detachable Omni-Directional Antennas
Sorry, this product is no longer available, replaced by the ENS500EXT-AC.
Overview:
The EnGenius ENS500EXT is a high-powered, long-range Wireless N300 Outdoor Access Point delivering data rates up to 300Mbps that operates on the 5GHz band so it avoids the congested wireless traffic from devices on the more commonly used 2.4 GHz frequency band. This makes the ENS500EXT an ideal solution for point-to-multipoint connectivity to 5 GHz wireless client bridges (for example, EnGenius ENS500) and connected IP security cameras in parking lots or garages, or for sending data to outdoor digital signage. It’s also ideal for providing connectivity to a small business network and its Internet connection for restaurant patrons, or for students and employees in educational or corporate campus venues who have 5 GHz-capable devices such as iPads, tablet PCs or laptop computers with embedded dual-band Wi-Fi radios.
ENS500EXT is compliant with the IEEE802.11a/n standards delivering a wireless data rate of up to 300Mbps on the 5 GHz frequency spectrum. It features two omni-directional 5 dBi MIMO (Multiple In/Multiple Out) antennas that coupled with its strong transmit power of up to 400mW make it a compelling performance solution for small and growing businesses at a very affordable price.
ENS500EXT also features a robust security feature set that includes support for WPA/WPA2 Personal and Enterprise encryption, 802.1x RADIUS authentication, hidden SSID and MAC address filtering.
ENS500EXT has an IP65 rated weatherproof housing that ensures continued operation in harsh outdoor environments or in climates of extreme cold, heat or continuous moisture.
Product Highlights
- 11n Speeds to 300 Mbps on Less Congested 5 GHz Band
- Weatherproof IP55-Rated Housing Resists Harsh Climates
- (2) Detachable 5 dBi MIMO Antennas Maximize 360° Coverage
- PoE Extends Power to Unwired Areas; Connect an IP Camera or AP via 2nd Port
Features & Benefits:
High 400mW Wireless Power Delivers Long-Range Coverage
Ensures robust signal to achieve longer range. Offers superior wireless network coverage over other brands
Wireless N300 Speed
Up to 300 Mbps when connected to another 5 GHz Wireless N300 device. Complies with IEEE802.11a/n standards

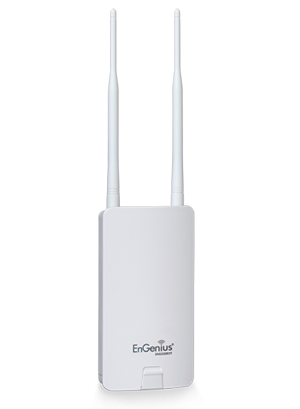

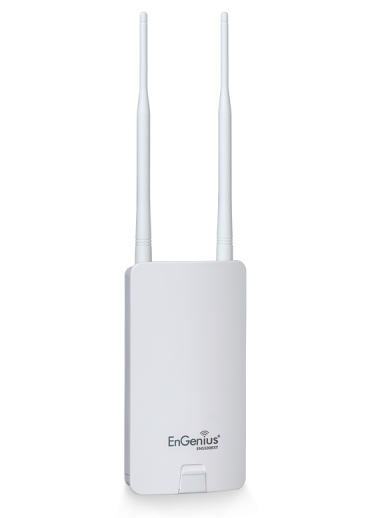

Two External Omni-Directional Antennas Maximize Wireless Connectivity
Two detachable 5 dBi omni-directional high-gain antennas. Multiple-Input and Multiple-Output (MIMO) antenna technology. External antenna connectors support optional installer-acquired high-gain antenna upgrade
SSID-to-VLAN Tagging
Can be configured to broadcast up to four (4) SSIDs. Each SSID can be tagged to a specified company network VLAN for different user access based on established access rights.
User-friendly Installation Kit

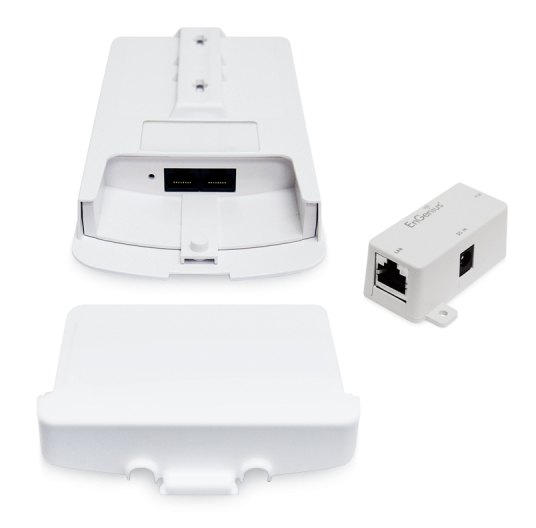

Includes a proprietary PoE (Power-over-Ethernet) kit comprised of a PoE injector and Power Adapter. Also includes a mast mount kit with binding strap.
Specifications:
| EnGenius ENS500EXT Specifications | |
|---|---|
| Standards | IEEE 802.11a/n on 5 GHz |
| Memory Capacity | Memory: 64 MB Flash Memory 16 MB |
| Antenna | 2 External Detachable Omni-Directional Antennas 5 dBi on 5 GHz |
| Physical Interface | 2 x 10/100 Fast Ethernet Ports 1 x Reset Button |
| LED Indicators | 1 x Power WLAN (Wireless Connection) 2.4 GHz 2 x LAN |
| Power Source | PoE injector (EPA2406GP) 100V~240V AC, 50-60Hz 0.4A @ 120V AC Surge Protection: 1KV ESD Protection Contact: 4KV Air: 8 KV |
| Ingress Protection Marking | IP55-Rated Enclosure |
| Mounting | Wall Mount Pole Mount |
| Wireless & Radio Specifications | |
| Operating Frequency | 5GHz |
| Operation Modes | Access Point Client Bridge Client Router WDS: AP, Bridge |
| Frequency Radio | 5GHz: 5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz |
| Transmit Power | Up to 26 dBm on 5 GHz Max transmit power is limited by regulatory power |
| Radio Chains/Spatial Streams | 2x2:2 |
| Supported Data Rates (Mbps) | 5 GHz: Max 300 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) |
| Supported Radio Technology | 802.11a/n: Orthogonal frequency-division Multiplexing (OFDM) |
| Channelization | 802.11n with 20/40 MHz channel width 802.11a with 20 MHz channel width |
| Supported Modulation | 802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM |
| AP Radio Settings | AP Client Limiting VLANs for AP - Multiple SSIDs Wi-Fi Scheduler Traffic Shaping Client Traffic Status |
| Management | |
| Multiple BSSID | Supports up to 4 SSIDs |
| VLAN Tagging | Supports 802.1q SSID-to-VLAN tagging VLAN Pass through |
| QoS | Compliant with IEEE 802.11e Standard WMM |
| SNMP | v1, v2c, v3 |
| MIB | I/II, Private MIB |
| Deployment Options | Standalone (Individually Managed) |
| Configuration | Web Interface (HTTP) CLI (Telnet) |
| Control Features | Auto Reboot Firmware Upgrade |
| Security | WPA/WPA2 Enterprise Hide SSID in beacons MAC Address Filtering Https Support |
| Environmental & Physical | |
| Temperature Range | Operating: -4°F to 140°F, -20°C to 60°C Storage: -22°F to 176°F, -30°C to 80 °C |
| Humidity (non-condensing) | Operating: 90% or less Storage: 90% or less |
| Device Dimensions & Weights | |
| Device | Weight: 0.66 lbs. Width: 3.93" (100 mm) Length: 7.08" (186 mm) Height: 1.14" (29 mm) |
| Package Contents | ENS500EXT Outdoor AP PoE Injector (EPA2406GP) Pole Mount Ring Mounting Screw Set Quick Installation Guide 2 External Detachable Omni-Directional Antennas |
| Certifications | FCC CE |
| Warranty | 1 Year |
Compare:
| Models: | ENS1750 | ENS1200 | ENS500EXT | ENS500 | ENS202EXT | ENS202 |
|---|---|---|---|---|---|---|
| Wi-Fi Standard | 802.11 a/b/g/n/ac | 802.11 a/b/g/n/ac | 802.11 a/n | 802.11 a/n | 802.11 b/g/n | 802.11 b/g/n |
| RAM | 64MB | 64MB | 32MB | 32MB | 32MB | 32MB |
| Flash | 16MB | 16MB | 16MB | 16MB | 16MB | 16MB |
| Frequency Band | 2.4 GHz & 5GHz | 2.4 GHz & 5GHz | 5GHz | 5GHz | 2.4 GHz | 2.4 GHz |
| Maximum Advertised Speed | 2.4 GHz: 450Mbps 5 GHz: 1300Mbps |
2.4 GHz: 300Mbps 5 GHz: 866Mbps |
300Mbps | 300Mbps | 300Mbps | 300Mbps |
| RF Power (dBm) | 2.4 GHz: 29 dBm 2.4 GHz: 28 dBm |
27 dBm | 26 dBm | 26 dBm | 26 dBm | 26 dBm |
| RF Power (mW) | 800mW | 500mW | 400mW | 400mW | 400mW | 400mW |
| Operation Modes | Access Point Client Bridge WDS Bridge/AP/ Station |
Access Point Client Bridge WDS Bridge/AP/ Station |
Access Point Client Bridge WDS Bridge/AP/ Station Client Router |
Access Point Client Bridge WDS Bridge/AP/ Station Client Router |
Access Point Client Bridge WDS Bridge/AP/ Station Client Router |
Access Point Client Bridge WDS Bridge/AP/ Station Client Router |
| LAN Interface | 10/100/1000 x2 | 10/100/1000 x2 | 10/100 x2 | 10/100 x2 | 10/100 x2 | 10/100 x2 |
| Antenna | Built-in 5 dBi Directional | Built-in 5 dBi Directional | 2x External 5 dBi Omni Directional | Built-in 10 dBi Directional | 2x External 5 dBi Omni directional | Built-in 8dBi Directional |
| Antenna Connector Type | N/A | N/A | SMA | N/A | SMA | N/A |
| Encryption | WEP/WPA/WPA2 | WEP/WPA/WPA2 | WEP/WPA/WPA2 | WEP/WPA/WPA2 | WEP/WPA/WPA2 | WEP/WPA/WPA2 |
| PoE Power | 48v | 48v | 24v | 24v | 24v | 24v |
| IP Rating | 65 | 65 | 65 | 65 | 65 | 65 |
| Primary Application | Point 2 multipoints | Point 2 multipoints | Point 2 multipoints | Building 2 building | Point 2 multipoints | Building 2 building |
| Secondary Application | 5GHz single radio bridge | 5GHz single radio bridge | 5GHz single radio bridge | High speed mid-long range P2P network | 2.4GHz N300 radio bridge | High-speed CPE device |
| Specialty Application | Highly interferred 2.4GHz wireless traffic | Highly interferred 2.4GHz wireless traffic | Highly interferred 2.4GHz wireless traffic | Outdoor IP cam AP in congested 2.4GHz area | Small base station replacement | Outdoor video IP cam wireless client |
Documentation:
Download the EnGenius ENS500EXT Datasheet (PDF).
