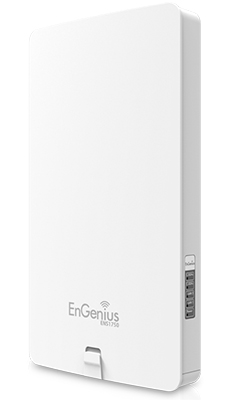

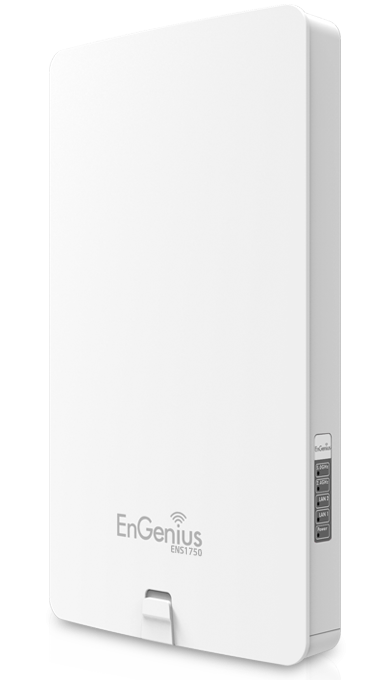

EnGenius ENS1750
Dual Band Wireless AC1750 Outdoor Access Point
Sorry, this product is no longer available, Please, contact us for a replacement product!
Overview:
The ENS1750 supports increased user capacities in outdoor areas such as patio cafes and backyard entertainment spaces with fast, dual-band 11ac speeds to 1,300 Mbps on 5 GHz and 450 Mbps on the 2.4 GHz band. Band Steering shifts dual-band-capable clients to the less-congested 5 GHz band, optimizing bandwidth.
Extend your wireless coverage to the outdoors with the high-powered ENS1750, an 802.11a/b/g/n/ac 3x3 long-range Dual Band Wireless AC1750 Outdoor Access Point with speeds up to 450 Mbps on the 2.4 GHz and 1300 Mbps on the 5 GHz frequency bands that functions as a stand-alone Access Point or as part of an EnGenius Electron Series Solution of mix-and-match business-class networking products. Configurable in a number of operation modes, this robust outdoor Access Point can support a wide variety of applications, making it ideal for small-to-medium sized companies that wish to provide outdoor access to the company network for their employees or to provide network and/or Internet connectivity via a company’s existing broadband connection.
Operating on both the 2.4 GHz and 5 GHz frequency bands and supporting 802.11a/b/g/n/ac standards, the ENS1750 features wireless speeds up to 450 Mbps on the 2.4 GHz and 1300 Mbps on the 5 GHz frequency bands and a Gigabit port for connecting to 802.3at-capable PoE Switches. The ENS1750 is built with a higher signal strength and sensitivity than other Access Points in its class allowing for fewer access points required in a deployment. These specifications assist in reducing dead zones in a deployed network. As the ENS1750 is designed to be mounted in high locations where power outlets may be scarce, it also supports PoE (Power-over-Ethernet) IEEE 802.3at with the included PoE injector or 802.3at-capable PoE Switches, drawing up to 22 Watts of power.
Product Highlights
- IP55-Rated Weatherproof Housing Withstands Harsh Environments
- High 29 dBm Transmit Power Ensures Long-Range Connections
- Far-Reaching Internal High-Gain 5 dBi Antennas on Each Band
- PoE+ Primary Gig-Port & Secondary Pass-Through Port Offer Deployment Flexibility
Features & Benefits:
Key Features
- IEEE 802.11 ac/a/b/g/n dual concurrent architecture
- Up to 450Mbps (2.4GHz) + 1300Mbps (5GHz)
- Built high-gain antennas for low-profile design
- Comprehensive IP55 waterproof rated
- Compliant with IEEE 802.3at PoE input
- AP/WDS multi-modes
- Intuitive configuration via the EZ Controller or Web GUI to manage the AP/Client traffic
- SNMP V1/ V2c/V3, MIB I/II supported
- WEP/WPA/WPA2 wireless encryption
- Spectrum Utilization (Band Steering)
- Seamless stream service (Fast Roaming)
- Manage and monitor by the AP, SSID
Improves and Optimizes Wireless Traffic with Band Steering
Automatically detects Dual Band clients and moves them from the 2.4 GHz band to the 5 GHz band. This allows applications such as video streaming to flow more easily and helps to eliminate traffic congestion on the 2.4 GHz band.
Flexible Deployment Scenarios
Choose one of two (2) modes available to the ENS1750 depending on user needs: Access Point or WDS (AP and Bridge).
Simplified AP Monitoring and Management
For easier monitoring and maintenance after deployment on rooftops and other hard to reach places, users can monitor the Access Point remotely with SNMP-based EZ Controller wireless Access Point software for Windows, Mac OSX, and Linux (available online as a free download).
Combat the Elements with IP55-Rated Waterproof Housing
Designed to withstand harsh environmental conditions via its waterproof IP55-Rated housing.
SSID-to-VLAN Tagging
Can be configured to broadcast up to sixteen (16) SSIDs (eight (8) SSIDs per band). Each SSID can be tagged to a specified company network VLAN for different user access based on established access rights.
EnGenius Outdoor Access Point delivers the intelligent connection for diversity of multimedia application under harsh environment.
ENS1750 is engineered with dual-band concurrent architecture which offers the bandwidth up to 1300Mbps on the 5GHz band and 450Mbps on the 2.4GHz band. With the IP55-rated waterproof enclosure and the flexible mounting capability, the product is able to be applied under challenging environments.
Cutting-edge Solutions
Each radio of the ENS1750 is built the higher strength and sensitivity; the specification will assist to reduce dead in your deployed WLAN and boost received signal quality on both ends of AP and wireless client devices. ENS1750 offers multiple SSIDs (up to 16 sets) and each SSID can be configured its bandwidth and WLAN security settings, enabling various applications running over WLAN with different levels of security strength and bandwidth limit. ENS1750 also provides the advanced wireless features including the fast roaming and band steering for achieving seamless connection and intelligent connection to optimize the signal quality.
Intelligent Management
Creating for nowadays networking demands, EnGenius had developed the multiple functions for great coverage, stable performance and easy-to-maintain management tools to ensure the best users' experience for IT manager, MIS administrators and etc. ENS1750 provides wide-range of authentication and encryption standards that including WEP, WPA, WPA2, WKIP/AES and IEEE 802.1X to enforce the security robustness, as well as to manage it via https with SSL encryption or SSH encryption.
Comprehensive Application
To enhance the spectrum usage, ENS1750 has enclosure the band steering technology, enabling 5GHz-capable clients to associate with its 5GHz radio and offloading air utilization in 2.4GHz band. Regarding users' mobility, PMKSA caching will nenable fast roaming upon handoff so ramaining 4-way handshake can complete key exchange within association process in educed time interval. With intelligent wireless mesh management from EWS switch, mesh connection can extend WLAN coverage great; coupling with client limit and fast handover features. ENS1750 can assure scarce wireless resources and optimize to deploy environment.
802.3at compliant PoE for Alternative Power Sourcing
ENS1750 can be powered by enclosed PoE injector or off-the-shelf 802.3at-compliant PoE switches, solving the common power sourcing issue in the field where devices are usually placed at outdoor environment.
Specifications:
| EnGenius ENS1750 Specifications | |
|---|---|
| Standards | IEEE 802.11b/g/n on 2.4 GHz IEEE 802.11a/n/ac on 5 GHz IEEE 802.3at IEEE 802.1r IEEE 802.1k IEEE 802.11x |
| Memory Capacity | Memory: 128 MB Flash Memory 16 MB |
| Antenna | Internal Omni-Directional Antennas 5 dBi on 2.4 GHz & 5 GHz |

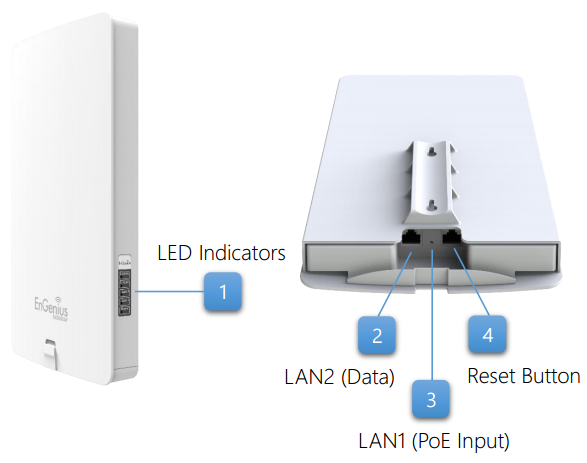

| Physical Interface | 2 x 10/100/1000 Gigabit Ethernet Ports - LAN1: Supports 802.3at PoE Input - LAN2: Data Pass Through 1 x Reset Button 1 x Power Connector |

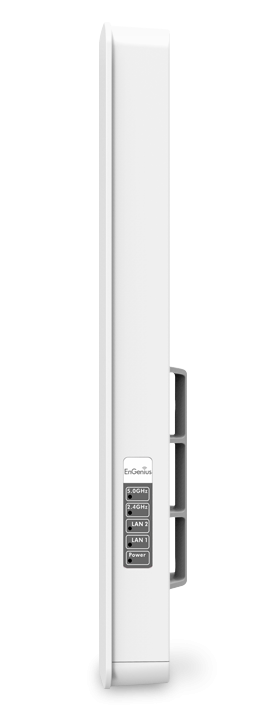

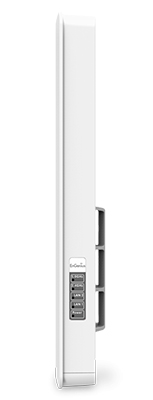

| LED Indicators | 1 x Power WLAN (Wireless Connection) 2.4 GHz 5 GHz 2 x LAN |
| Power Source | External Power Adapter on PoE injector DC IN, 48 V/0.8A IEEE 802.3at Compliant Source Active Ethernet (PoE) |
| Ingress Protection Marking | IP55-Rated Enclosure |
| Mounting | Wall Mount Pole Mount |
| Wireless & Radio Specifications | |
| Operating Frequency | Dual-Radio Concurrent 2.4GHz & 5GHz |
| Operation Modes | Access Point |
| Frequency Radio | 2.4GHz: 2400MHz ~ 2835MHz 5GHz: 5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz |
| Transmit Power | Up to 29 dBi on 2.4 GHz Up to 27 dBi on 5 GHz Max transmit power is limited by regulatory power |
| Radio Chains/Spatial Streams | 3x3:3 |
| Supported Data Rates (Mbps) | 2.4 GHz: Max 450 5 GHz: Max 1300 802.11b: 1, 2, 5.5, 11 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 450 (MCS0 to MCS23) 802.11ac: 6.5 to 1300 (MCS0 to MCS9, NSS=1 ~3) |
| Supported Radio Technology | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM) |
| Channelization | 802.11ac with 20/40/80 MHz channel width 802.11n with 20/40 MHz channel width 802.11a/b/g with 20 MHz channel width |
| Supported Modulation | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| AP Radio Settings | Band Steering Traffic Shaping Fast Roaming (802.11k & 802.11r) RSSI Threshold AP Client Limiting VLANs for AP - Multiple SSIDs Secured Guest Network Email Alert Wi-Fi Scheduler Traffic Shaping Client Traffic Status |
| Management | |
| Multiple BSSID | Supports up to 16 SSIDs, 8 SSIDs per radio |
| VLAN Tagging | Supports 802.1q SSID-to-VLAN tagging VLAN Pass through |
| QoS | Compliant with IEEE 802.11e Standard WMM |
| SNMP | v1, v2c, v3 |
| MIB | I/II, Private MIB |
| Deployment Options | Standalone (Individually Managed) |
| Configuration | Web Interface (HTTP) CLI (Telnet) |
| Control Features | Auto Reboot Firmware Upgrade |
| Security | WPA/WPA2 Enterprise Hide SSID in beacons MAC Address Filtering Https Support SSH Support Client Isolation L2 Isolation |
| Environmental & Physical | |
| Temperature Range | Operating: -4°F to 140°F, -20°C to 60°C Storage: -22°F to 176°F, -30°C to 80 °C |
| Humidity (non-condensing) | Operating: 90% or less Storage: 90% or less |
| Device Dimensions & Weights | |
| Device | Weight: 1.89 lbs. Width: 7.13" (181 mm) Length: 11.97" (304 mm) Height: 1.81" (46 mm) |
| Package Contents | ENS1750 11ac Outdoor AP 48 V/0.8A Power Adapter PoE Injector Pole Mount Ring Mounting Screw Set Quick Installation Guide |
| Certifications | FCC CE |
| Warranty | 1 Year |
Compare:
| Models: | ENS1750 | ENS1200 | ENS500EXT | ENS500 | ENS202EXT | ENS202 |
|---|---|---|---|---|---|---|
| Wi-Fi Standard | 802.11 a/b/g/n/ac | 802.11 a/b/g/n/ac | 802.11 a/n | 802.11 a/n | 802.11 b/g/n | 802.11 b/g/n |
| RAM | 64MB | 64MB | 32MB | 32MB | 32MB | 32MB |
| Flash | 16MB | 16MB | 16MB | 16MB | 16MB | 16MB |
| Frequency Band | 2.4 GHz & 5GHz | 2.4 GHz & 5GHz | 5GHz | 5GHz | 2.4 GHz | 2.4 GHz |
| Maximum Advertised Speed | 2.4 GHz: 450Mbps 5 GHz: 1300Mbps |
2.4 GHz: 300Mbps 5 GHz: 866Mbps |
300Mbps | 300Mbps | 300Mbps | 300Mbps |
| RF Power (dBm) | 2.4 GHz: 29 dBm 2.4 GHz: 28 dBm |
27 dBm | 26 dBm | 26 dBm | 26 dBm | 26 dBm |
| RF Power (mW) | 800mW | 500mW | 400mW | 400mW | 400mW | 400mW |
| Operation Modes | Access Point Client Bridge WDS Bridge/AP/ Station |
Access Point Client Bridge WDS Bridge/AP/ Station |
Access Point Client Bridge WDS Bridge/AP/ Station Client Router |
Access Point Client Bridge WDS Bridge/AP/ Station Client Router |
Access Point Client Bridge WDS Bridge/AP/ Station Client Router |
Access Point Client Bridge WDS Bridge/AP/ Station Client Router |
| LAN Interface | 10/100/1000 x2 | 10/100/1000 x2 | 10/100 x2 | 10/100 x2 | 10/100 x2 | 10/100 x2 |
| Antenna | Built-in 5 dBi Directional | Built-in 5 dBi Directional | 2x External 5 dBi Omni Directional | Built-in 10 dBi Directional | 2x External 5 dBi Omni directional | Built-in 8dBi Directional |
| Antenna Connector Type | N/A | N/A | SMA | N/A | SMA | N/A |
| Encryption | WEP/WPA/WPA2 | WEP/WPA/WPA2 | WEP/WPA/WPA2 | WEP/WPA/WPA2 | WEP/WPA/WPA2 | WEP/WPA/WPA2 |
| PoE Power | 48v | 48v | 24v | 24v | 24v | 24v |
| IP Rating | 65 | 65 | 65 | 65 | 65 | 65 |
| Primary Application | Point 2 multipoints | Point 2 multipoints | Point 2 multipoints | Building 2 building | Point 2 multipoints | Building 2 building |
| Secondary Application | 5GHz single radio bridge | 5GHz single radio bridge | 5GHz single radio bridge | High speed mid-long range P2P network | 2.4GHz N300 radio bridge | High-speed CPE device |
| Specialty Application | Highly interferred 2.4GHz wireless traffic | Highly interferred 2.4GHz wireless traffic | Highly interferred 2.4GHz wireless traffic | Outdoor IP cam AP in congested 2.4GHz area | Small base station replacement | Outdoor video IP cam wireless client |
Documentation:
Download the EnGenius ENS1750 Datasheet (PDF).
