EnGenius ENH220EXT
High-Powered, Long-Range, High-Capacity Wireless N300 Outdoor Access Point

Features:

Power Over Ethernet (PoE) and Reset from Remote-end Support

ENH220EXT equips with two gigabit Ethernet ports that support IEEE 802.3at PoE input and PoE injector with reset function. To fulfill the operation from distantly use, clients can reset the ENH220EXT to default value via EPE-48GR from remote-end.

Enterprise high-end Solutions

ENH220EXT can be configured by web configuration or EnGenius Zone Controller (EZ controller) software. With full-featured software built-in, the device allows administrator to control, manage, and optimize the network effectively from a central location which can decrease the maintenance cost greatly. ENH220EXT can operate into three different modes with Access Point, Client Bridge and WDS Modes. With powerful solution and individual interfaces, ENH220EXT can connect with the multiple devices and extend the wireless signal easily, as well as be the point to point connection between office buildings.

Effective Management

EnGenius has developed the advanced functions for maximum security, monitoring and easily management to ensure the optimal users' experience. To provide the reliable connection and stable performance on the transmission, ENH220EXT provides wide-range of authentication and encryption standards (including WEP, WPA, WPA2, TKIP/AES and IEEE 802.1X) to enforce the maximum security, as well as configure the band steering, fast roaming and clients status to enhance the quality of wireless service.

Specifications:

Technical Specifications
Wireless Radio Specification
2.4GHz 802.11b/g/n	Max 300Mbps
Transmit Power (Maximum Value)	2.4GHz: Max 15dBm Maximum power is limited by regulatory power
Supported Radio Technology	802.11b: Direct-sequence spread-spectrum (DSSS) 802.11g/n: Orthogonal frequency-division multiplexing (OFDM) 802.11n with 20/40 MHz channel width 802.11b/g with 20 MHz channel width
Supported Modulation Types	802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: 1, 2, 5.5, 11
Supported Data Rates (Mbps)	802.11g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15)
Power
Power Source	802.3at compliant source
Power Consumption	TBD
Antennas
Six detachable high gain antennas	Two detachable 5dBi 2.4GHz antennas
Omni-Directional Type	Provides the optimal coverage
Compliant with N type connector
Interface
Two 10/100/1000 BASE-T Ethernet Ports	One Port (LAN1) supports 802.3at PoE input One Port (LAN2) supports signal extension Reset button on the PoE injector (EPE-48GR)
Mechanical & Environment
Dimensions/Weight	285mm (L) x 218mm (W) x 55.5mm (H) 1890g (Unit, without mounting kit and antennas)
Operating	Temperature -20°C~70°C Humidity 0%～90% typical
Storage	Temperature -30°C~80°C
Surge / ESD Protection	ESD Protection: 8KV (Air); 4KV(Contact) Surge Protection: 4KV (Certificated standard is 1KV)
Harsh Environment Use	IP68 rated
Operation Mode
Access Point / Client Bridge / WDS	A variety of operation modes to serve multiple constituencies and applications
Easy to Management
Auto Channel Selection	Setting varies by regulatory domain
SSIDs	BSSID support 8 SSIDs support
VLAN Pass-through	VLAN pass through over WDS bridge mode
SNMP & MIB	v1/v2c/v3 support MIB I/II, Private MIB
Save Configuration as Default	Saves the users' configuration as default value
Clients Traffic Status	Reports the various main information timely which is required by administrator
Guest Network	Allows users to manage easily grant "visitor" access within the network
E-mail alert	Provides a network monitoring tool for administrators to stay informed the configuration change
QoS	Complaint with IEEE 802.11e standard
RADIUS Accounting	Assist operators to offload 3G to the Wi-Fi seamlessly
Effective Control and Use
CLI Comments Support	Setting varies by regulatory domain
Distance Control (Ack Timeout)
Multicast Supported
Wi-Fi Scheduler	Set the schedule for rebooting the device
Fast Roaming	Minimize perceptible delay during re-association
Fast Handover	Steer clients from the AP to other APs under the same encryption and SSID when the signal is above the default value
Reinforcement Security
WEP Encryption-64/128/152 bit
WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
Hide SSID in beacons
MAC address filtering	Filter up to 32 MACs per SSID
Wireless STA (Client) connection list	Reports the various main information timely which is required by administrator
Https	Widely used communications approach for securing communication over a computer network
SSH	Provide confidentiality and integrity of data over an unsecured network, such as the Internet

RF Specification (Aggregated Value)
Channel	Data Rate	Transmit Power (Aggregated, dBm)	Received Sensitivity (Aggregated, dBm)
802.11b 2.4 GHz	1 Mbps	15.0	-96.0
	2 Mbps	15.0	-95.0
	5.5 Mbps	15.0	-93.0
	11 Mbps	15.0	-92.0
802.11g 2.4 GHz	6 Mbps	15.0	-94.0
	54 Mbps	14.0	-75.0
802.11n HT20 2.4 GHz	MCS 0 / 8	15.0	-95.0
	MCS 7 / 15	15.0	-70.0
802.11n HT40 2.4 GHz	MCS 0 / 8	15.0	-94.0
	MCS 7 / 15	14.0	-69.0

*Maximum performance of the hardware provided. Maximum transmit power is limited by local regulatory.
*The supported frequency band is restricted by local regulatory requirements.
*Transmit power is configured in 1.0dBm increments.

RF Specification (Aggregated Value)
External Antenna	2.4GHz
Average Antenna Gain	5.0dBi
Polariztion	Linear
Azimuth Beam-Width	360°˚
Elevation Beam-Width	28°˚
VSWR	1:2.0
Dimension	22.8(Φ)x187(L) mm

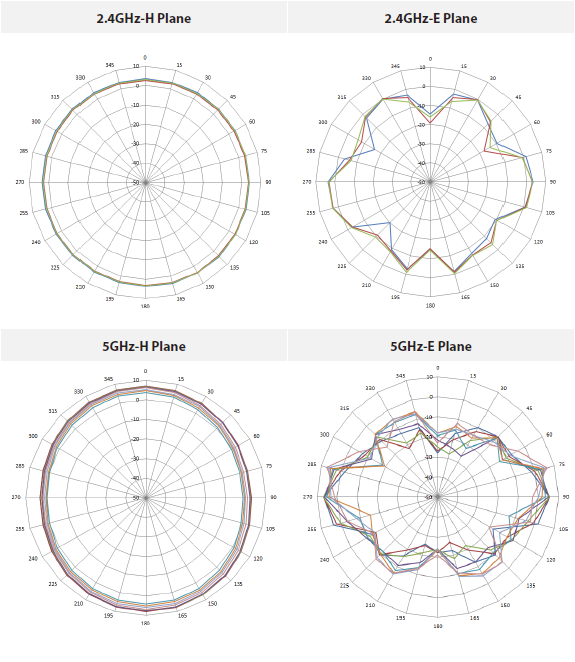

Diagram Pattern

EZ Controller:

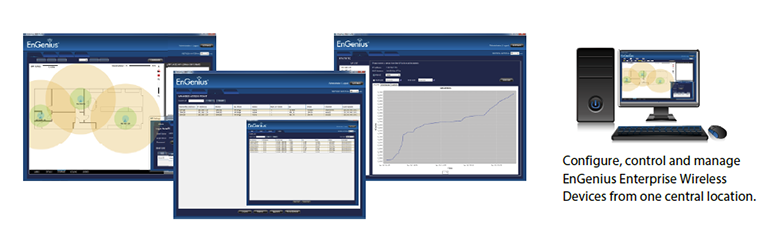

In enhancing the real-time functionality of a network, applying the best network management software tool is necessary. Builtin Network Management System, EZ Controller (EnGenius Zone Controller), provides an intelligent tool for IT manager, installer, and network administrators to configure control, and manage all wireless devices within network from one central location. This application ensures the entire network will optimally operate without troubles, glitches and interruptions.

The growing demand of performance related results from service providers or someone involved in an enterprise, you need to provide a huge platform to make it successful. The robust design of EZ Controller can manage different devices simultaneously and precisely, as well as configure the advanced service for wireless clients.

Features:

• Easy-to-use User Interface
• Optimize network performance
• Eliminate downtime
• Check real-time wireless coverage
• Monitor and control each sheet
• Monitor traffic loads by AP, MAC or IP address
• Sequential firmware upgrades to deployed APs / Bridges
• Import and archive floorplan maps for radio coverage plotting
• Labels assets by MAC and IP address or user-defined aliases
• Export real-time AP statistics report

An intelligent solution for different business environment

Documentation:

Download the EnGenius ENH220EXT Datasheet (PDF).
