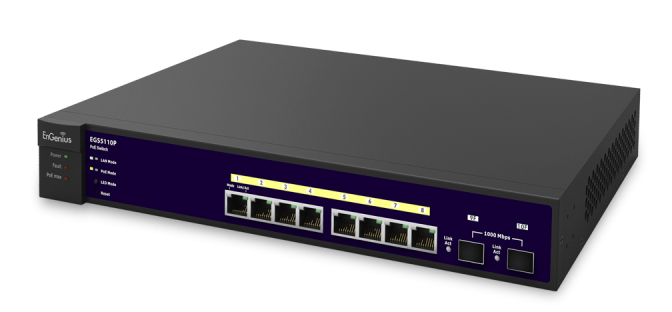

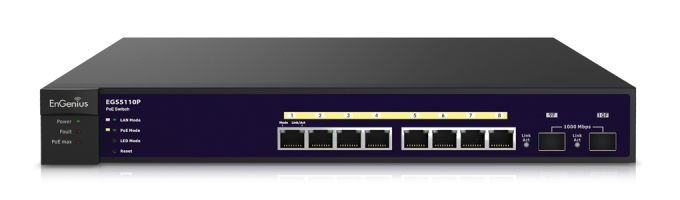

EnGenius EGS5110P
8-Port Gigabit PoE+ Smart Switch With Two Gigabit SFP
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
The simple but powerful EGS5110P delivers up to 30 Watts per port over connected Ethernet cables to powered devices. A high-performing, cost-effective solution for small-to-medium businesses that need to connect and power VoIP phone systems, IP cameras and wireless APs.
Product Highlights
- (8) Gigabit Ports With 802.3at/af PoE and a Total PoE Budget of 130W
- (2) Dual-Speed SFP Ports for Fiber Uplinks
- Loopback Detection; IGMP Snooping; Bandwidth Control; PoE Management
- Embedded QoS Intelligence Prioritizes Delay-Sensitive Voice & Video
Connect computers, VoIP phones, access points and IP cameras throughout your office and move data at Gigabit speeds
The EGS5110P is a Smart PoE+ Switch that offers 8 Gigabit ports with IEEE802.3at/af PoE Support on all its ports and 2 SFP slots for fiber uplinks. The switch up to 30 watts per port over connected Ethernet cables to powered devices for a total PoE budget of 130 watts. It also supports VLAN, QoS and IGMP Snooping features for priority based application, such as IP surveillance or video/voice transitions. It also offers PoE Management on all its Gigabit ports and priority-base configuration.
EnGenius Smart PoE (Power-over-Ethernet) Gigabit Switches are specifically designed to meet the needs of start-up and small-to-medium sized businesses. For companies that need a way to connect and power VoIP phone systems, IP Cameras and Wireless Access Points throughout their facilities, these robust and fully-managed, yet cost-effective switches will help to keep their employees connected, safe and productive.
EnGenius switches also include embedded QoS intelligence to prioritize delay-sensitive services such as voice and video, simplify unified communications deployments, and help ensure consistent network performance for all services. For example, automated voice VLAN capabilities let you plug any IP phone into your IP telephony network and receive an immediate dial tone.
Features & Benefits:
Key Features
- 8 Gigabit ports with IEEE802.3 at/af PoE support
- 2 SFP slots
- External Power Adapter with 130w PoE Budget
- Provide PoE Management on ports
- Loopback Detection
- IGMP Snooping
- Bandwidth Control
- IEEE802.1Q VLAN
- IEEE802.1p QoS
- Storm Control
- Port Mirroring
- 130w PoE Budget
Gigabit Speed for Small Businesses
The EGS5110P is a Smart PoE Switch that offers 8 Gigabit ports with IEEE802.3 at/af PoE Support on all its ports and 2 SFP slots for fiber uplinks.
Power Over Ethernet (PoE)
EnGenius Smart PoE (Power-over-Ethernet) Gigabit Switches are specifically designed to meet the needs of start-up and small-to-medium sized businesses. It’s ideal for companies that need a way to connect and power VoIP phone systems, IP Cameras and Wireless Access Points throughout their facilities. These robust and fully-managed, yet cost-effective switches will help to keep their employees connected, safe and productive. The EGS5110P delivers up to 30 watts per port over connected Ethernet cables to powered devices. Total PoE budget - 130W
Management
EnGenius switches also include embedded Qos intelligence to prioritize delay-sensitive services such as voice, simplify unified communications deployments, and help ensure consistent network performance for all services. For example, automated voice VLAN capabilities let you plug any IP phone into your IP telephony network and receive an immediate dial tone.
Versatile Form Factor
The 13-inch wide EGS5110P can be used as a desktop or rack-mounted switch. It includes bracketing hardware so it can be placed into a stack of other 1U chassis switches.
Specifications:
| EnGenius EGS5110P Specifications | |
|---|---|
| Standard | |
| Switching Capacity | 20 Gbps |
| Max. Forwarding Rate (64kBytes) | 14.88Mpps |
| Forwarding Mode | Store and Forward |
| Packet Buffer memory | 512K Bytes |
| Flash Memory | 4 MB |
| Port Functions | 8 10/100/1000Mbps Ports in the front panel 2 1000Mbps SFP Slot |
| PoE Capability | PoE standard: Port 1~8 Support IEEE 802.3at/af PoE Capable Ports: Port 1~8 can output up to 30W PoE budget: 130 Watts |
| LED Indicator | Device: Power LED x1 Fault LED x1 PoE Max LED x1 LAN Mode LED x1 PoE Mode LED x1 SFP/Copper Ports: LAN/PoE Mode, Link/Act |
| Environment & Mechanical | |
| Temperature Range | Operating: 32 to 104°F / 0 to 40°C Storage: -40 to 158°F / -40 to 70 °C |
| Humidity (non-condensing) | 5% - 95% |
| L2 Features | |
| L2 Features | Loopback Detection IGMP Snooping v1/v2 Port Mirroring: one to one and many to one Static MAC Address Dynamic MAC List Bandwidth Control 802.1Q VLAN Port-based VLAN Storm Control |
| PoE Management | Power on/off per port Power Class Configuration Power feeding with priority User defined power limit BootP/DHCP Client Firmware Burn-Proof Cable Diagnostic CoS |
PoE/PoE+ Smart Switches Comparison:
| EGS Series Model | EGS2108P | EGS2110P | EGS5110P |
|---|---|---|---|
| 10/100/1000 Ports | 8 | 8 | 8 |
| SFP | 0 | 2 (additional) | 2 (additional) |
| Power Type | External | External | Internal |
| PoE Standard (IEEE802.3at/af) | 802.3af | 802.3af | 802.3at/af |
| PoE Capable Ports | port 1-4 | port 1-8 | port 1-8 |
| Power Budget | 61.6w | 61.6w | 130w |
| Chassis | Desktop | Desktop | Rackmount (1U, 13 inch) |
| Material | Metal | Metal | Metal |
| Color | Gray | Gray | Dark Blue |
| Reset Button | |||
| Loopback Detection | |||
| IGMP Snooping (Supports v1, v2) | |||
| Port Mirroring | |||
| Port Trunking | |||
| Bandwidth Control | |||
| Storm Control (Broadcast / Multicast / Unknown Unicast) | |||
| 802.1Q VLAN | |||
| Port-based VLAN | |||
| CoS based on 802.1p priority | |||
| CoS based on physical port | |||
| Power Class Configuration | |||
| Power feeding with priority | |||
| User defined power limit | |||
| Web-based support | |||
| Web UI supports non-IE browser (Chrome, Firefox, Safari) | |||
| PoE Injector kit | |||
| Cable Diagnostic |
Documentation:
Download the EnGenius EGS5110P Datasheet (PDF).
