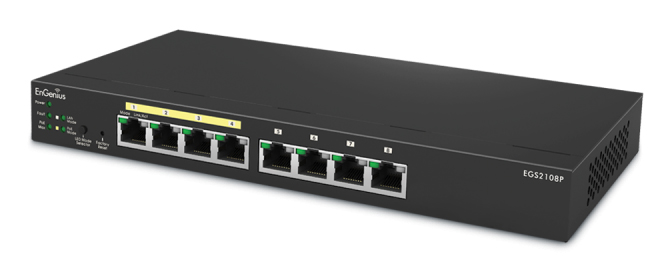

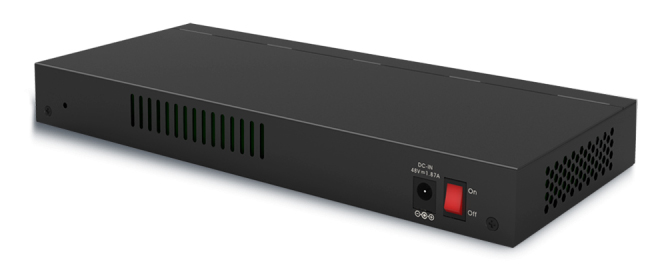

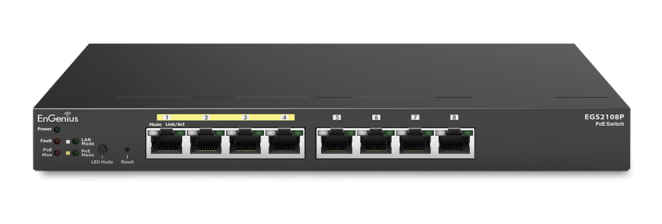

EnGenius EGS2108P
8-Port Gigabit Smart Switch With Four PoE Ports
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
The simple but powerful EGS2108P delivers up to 15.4W per port (ports 1-4 only) over connected Ethernet cables to powered devices. A high-performing, cost-effective solution for small-to-medium businesses that need to connect and power VoIP phone systems, IP cameras and wireless APs.
Product Highlights
- (8) Gigabit Ports; (4) 802.3at/af PoE Ports With a Total PoE Budget of 61.6W
- Loopback Detection; IGMP Snooping; Bandwidth Control; PoE Management
- Embedded QoS Intelligence Prioritizes Delay-Sensitive Voice & Video
PoE to Power and Connect Devices and Gigabit Speed for Small Businesses
The EGS2108P is an 8-Port Gigabit Smart Switch that includes 4 PoE ports and provides power and connectivity for Wireless Access Points, IP Cameras, VoIP (Voice-over-IP) phone systems and other devices that are PoE capable; as well as providing high speed network connectivity to computers in a small office setting.
The EGS2108P enables office users to easily connect and supply power to Power over Ethernet devices such as IP cameras, IP phones, and Wireless Access Points on a network. Ports 1-4 of the EGS2108P support the IEEE 802.3af PoE protocol. Each of these four ports can supply up to 30 watts for a total PoE budget of 61 watts.
The switch supports IEEE 802.1p QoS, which automatically classifies and prioritizes compliant device traffic to ensure that time-sensitive data such as VoIP packets are forwarded without delay. In addition, the switch offers PoE Management on its PoE ports and also includes priority-based configuration.
Features & Benefits:
Key Features
- 8-Gigabit Ethernet ports
- IEEE802.3af support on ports1-4
- External Power Adapter with 61.6w PoE Budget
- Provides PoE Management on PoE ports
- Loopback Detection
- IGMP Snooping
- Bandwidth Control
- IEEE802.1Q VLAN
- IEEE802.1p QoS
Gigabit Speed for Small Businesses
The EGS2108P provides connectivity for devices and applications that require high speed network access and connectivity to PoE devices.
Power Over Ethernet (PoE)
EnGenius Smart PoE (Power-over-Ethernet) Gigabit Switches are specifically designed to meet the needs of start-up and small-to-medium sized businesses. It’s ideal for companies that need a way to connect and power VoIP phone systems, IP Cameras and Wireless Access Points throughout their facilities. These robust and fully-managed, yet cost-effective switches will help to keep their employees connected, safe and productive. Ports 1-4 of the EGS2108P support the IEEE 802.3af PoE protocol. Each of these four ports can supply up to 15.4 watts for a total PoE budget of 61.6 watts.
Management
EnGenius switches also include embedded QoS intelligence to prioritize delaysensitive services such as voice and video, simplify unified communications deployments, and help ensure consistent network performance for all services. For example, automated voice VLAN capabilities let you plug any IP phone into your IP telephony network and receive an immediate dial tone.
Specifications:
| EnGenius EGS2108P Specifications | |
|---|---|
| Standard | |
| Switching Capacity | 16Gbps |
| Max. Forwarding Rate (64kBytes) | 14.88Mpps |
| Forwarding Mode | Store and Forward |
| Packet Buffer memory | 512K Bytes |
| Flash Memory | 4 MB |
| Port Functions | 8 10/100/1000Mbps Ports in the front panel |
| PoE Capability | PoE standard: Port 1~4 Support IEEE 802.3af PoE Capable Ports: Port 1~4 can output up to 15.4W PoE budget: 61.6 Watts |
| LED Indicator | Device: Power LED x1 Fault LED x1 PoE Max LED x1 LAN Mode LED x1 PoE Mode LED x1 |
| Environment & Mechanical | |
| Temperature Range | Operating: 32 to 104°F / 0 to 40°C Storage: -40 to 158°F / -40 to 70 °C |
| Humidity (non-condensing) | 5% - 95% |
| L2 Features | |
| L2 Features | Loopback Detection IGMP Snooping v1/v2 Port Mirroring: one to one and many to one Static MAC Address Dynamic MAC List Bandwidth Control 802.1Q VLAN Port-based VLAN Storm Control |
| PoE Management | - Power on/off per port - Power Class Configuration - Power feeding with priority - User defined power limit BootP/DHCP Client Firmware Burn-Proof Cable Diagnostic |
PoE/PoE+ Smart Switches Comparison:
| EGS Series Model | EGS2108P | EGS2110P | EGS5110P |
|---|---|---|---|
| 10/100/1000 Ports | 8 | 8 | 8 |
| SFP | 0 | 2 (additional) | 2 (additional) |
| Power Type | External | External | Internal |
| PoE Standard (IEEE802.3at/af) | 802.3af | 802.3af | 802.3at/af |
| PoE Capable Ports | port 1-4 | port 1-8 | port 1-8 |
| Power Budget | 61.6w | 61.6w | 130w |
| Chassis | Desktop | Desktop | Rackmount (1U, 13 inch) |
| Material | Metal | Metal | Metal |
| Color | Gray | Gray | Dark Blue |
| Reset Button | |||
| Loopback Detection | |||
| IGMP Snooping (Supports v1, v2) | |||
| Port Mirroring | |||
| Port Trunking | |||
| Bandwidth Control | |||
| Storm Control (Broadcast / Multicast / Unknown Unicast) | |||
| 802.1Q VLAN | |||
| Port-based VLAN | |||
| CoS based on 802.1p priority | |||
| CoS based on physical port | |||
| Power Class Configuration | |||
| Power feeding with priority | |||
| User defined power limit | |||
| Web-based support | |||
| Web UI supports non-IE browser (Chrome, Firefox, Safari) | |||
| PoE Injector kit | |||
| Cable Diagnostic |
Documentation:
Download the EnGenius EGS2108P Datasheet (PDF).
