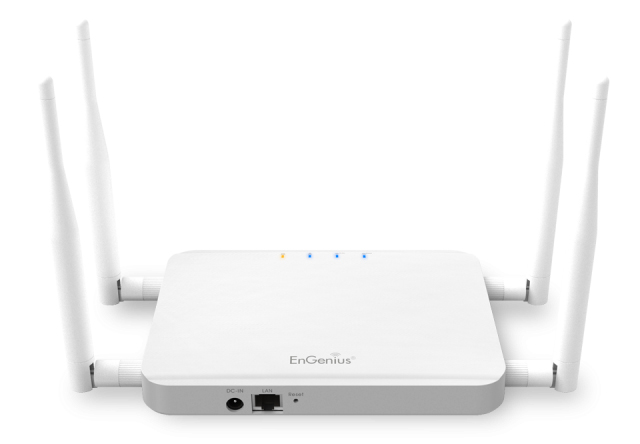

EnGenius ECB600
High-Powered, Long-Range Dual Band Wireless N600 Indoor Access Point / Client Bridge
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
The EnGenius ECB600 is a concurrent dual band 2.4 / 5 GHz Wireless-N Indoor Access Point that features high transmit RF power (29 dBm on 2.4GHz and 26 dBm on 5GHz) for long range connectivity. With wireless speeds up to 300Mbps on each radio and a Gigabit port for connecting to a switch or router it’s ideal for expanding a network with additional bandwidth to support additional users.
The dual band Wireless-N ECB600 now enables companies to connect to more employees, guests, staff or students more especially those who transfer large files within the network or use other bandwidth intensive applications like streaming HD video. The AP’s Gigabit Ethernet (10/100/1000) port also offers greater bandwidth capacity and faster data transfers through the network. This high-powered Access Point/Bridge with its enhanced receive sensitivity and external MIMO (Multiple In/ Multiple Out) antennas array extends wireless coverage and enhances connectivity to client devices even in areas where connections have been previously challenging or non-existent and in some buildings it’s wireless signal can penetrate up to 3 floors. This makes the ECB600 ideal for extending networks within large or multi-story buildings or expansive, client-intensive properties like hotels, resorts, hospitals, office buildings, universities or other multi-building campus facilities.
The ECB600 can be configured to operate in several modes – as a dual band Wireless-N Access Point, a WDS Access Point, or Repeater. It operates concurrently in the 2.4GHz and 5GHz frequency spectrums supporting 802.11a/b/g/n standards. ECB600 also includes EZ Controller, access point monitoring and management software that provides a robust suite of tools for IT managers, installers and network administrators to monitor the performance of their deployed EnGenius access points and bridges, update them with new firmware or reconfigure the operation mode that they are in from one central location.
Key Features:
- Up to 29dBm transmit power enabling long range connectivity
- Supports IEEE802.11a/b/g/n wireless standards with up to 300 Mbps data rate

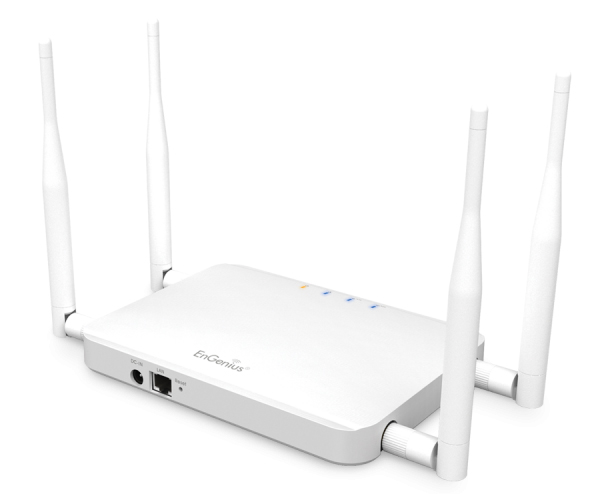

- Four detachable 5 dBi omni-directional MIMO antennas
- Can be monitored after deployment with EnGenius EZ Controller™ software for Windows
- PoE
- Dual Band/Two Stream
- Leader in Price/Performance
- Band Steering
Specifications:
| EnGenius ECB600 Specifications | |
|---|---|
| Standards | IEEE802.11b/g/n on 2.4 GHz IEEE 802.11a/n on 5 GHz IEEE802.3at/af |
| Memory Capacity | Memory: 64 MB Flash Memory 16 MB |
| Antenna | 4 External Detachable Omni-Directional Antennas 5 dBi on 2.4 GHz and 5 GHz Compliant with SMA type of connector |

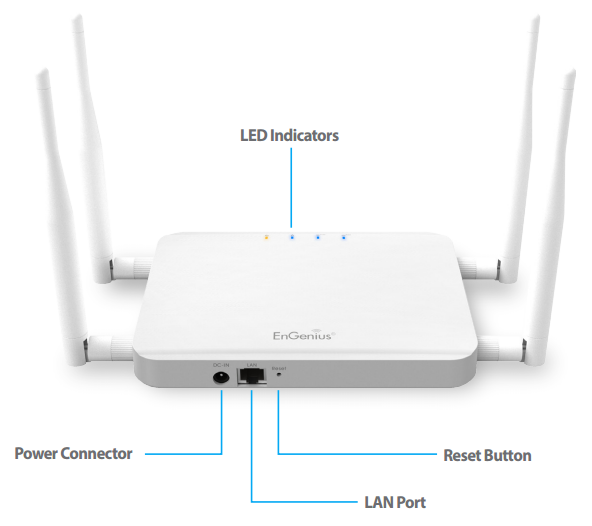

| Physical Interface | 1 x 10/100/1000 Gigabit Ethernet Port 1 x Reset Button 1 x Power Connector |
| LED Indicator | 1 x Power WLAN (Wireless Connection) 2.4 GHz 5 GHz 1 x LAN |
| Power Source | DC IN, 12V/2A IEEE 802.3at/af Compliant Source |

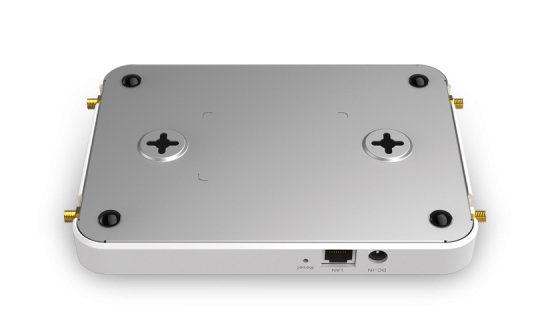

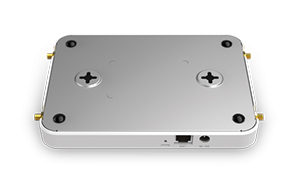

| Mounting | Wall Mount |
| Wireless & Radio Specifications | |
| Operating Frequency | Dual-Radio Concurrent 2.4GHz & 5GHz |
| Operation Modes | Access Point Client Bridge WDS AP WDS Bridge WDS Station Universal Repeater |
| Frequency Radio | 2.4GHz: 2400MHz ~ 2835MHz 5GHz: 5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz |
| Transmit Power | Up to 28 dBm on 2.4 GHz Up to 28 dBm on 5 GHz Max transmit power is limited by regulatory power |
| Radio Chains/Spatial Streams | 2x2:2 |
| Supported Data Rates (Mbps) | 2.4 GHz: Max 300 5 GHz: Max 300 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS23) |
| Supported Radio Technology | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n: Orthogonal Frequency-Division Multiplexing (OFDM) |
| Channelization | 802.11n with 20/40 MHZ channel width 802.11a/b/g with 20 MHZ channel width |
| Supported Modulation | 802.11b: BPSK, QPSK, CCK 802.a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| Management | |
| Multiple BSSID | Supports up to 16 SSIDs, 8 SSIDs per radio |
| VLAN Tagging | Supports 802.1q SSID-to-VLAN Tagging VLAN Pass-through |
| QoS | Compliant with IEEE 802.11e Standard WMM |
| SNMP | v1, v2c, v3 |
| MIB | I/II, Private MIB |
| Management Features | Deployment Options Standalone (Individually Managed) |
| Configuration | Web Interface (HTTP) CLI (Telnet) |
| Control Features | Auto Reboot Firmware Upgrade Email Alert Auto Channel Auto Transmit Power Band Steering Backup / Restore Wi-Fi Scheduler Multicast Supported |
| Security | WPA/WPA2 Enterprise Hide SSID in beacons MAC Address Filtering Https Support |
| Environmental & Physical | |
| Temperature Range | Operating: 32 to 122°F / 0 to 50°C Storage: -4 to 140°F / -20 to 60°C |
| Humidity (non-condensing) | Operating: 90% or less Storage: 90% or less |
| Device Dimensions & Weights | |
| Device | ECB600 Dual Band Wireless N600 Indoor Access Point / Client Bridge 12 V/2A Power Adapter 2 Detachable 5 dBi 2.4 GHz Omni-directional Antennas 2 Detachable 5 dBi 5 GHz Omni-directional Antennas Wall Mount Screw Kit RJ-45 Ethernet Cable Quick Installation Guide |
| Package Contents | Weight: 1.06 lbs. Length: 7.44” Width: 5.5” Height: 1” |
| Certifications | FCC CE |
| Warranty | 1 Year |
Product Comparison:
| Model | ECB1750 | ECB1200 | ECB600 | ECB350 | ECB300 |
|---|---|---|---|---|---|
| Frequency | 802.11 a/b/g/n/ac | 802.11 a/b/g/n/ac | 802.11 a/b/g/n | 802.11 b/g/n | 802.11 b/g/n |
| Maximum Data Speed | 450 + 1300Mbps | 300 + 867Mbps | 300 + 300Mbps | 300Mbps | 300Mbps |
| LAN Interface | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100 |
| Encryption | WPA2 WPA WEP | WPA2 WPA WEP | WPA2 WPA WEP | WPA2 WPA WEP | WPA2 WPA WEP |
| SDRAM | 128 MB | 128 MB | 64 MB | 32 MB | 32 MB |
| FlashMemory | 16 MB | 16 MB | 16 MB | 8 MB | 4 MB |
| RF Power (dBm) | 2.4 GHz: 29 dBm 5 GHz: 29 dBm |
2.4 GHz: 26 dBm 5 GHz: 26 dBm |
2.4 GHz: 29 dBm 5 GHz: 26 dBm |
29 dBm |
29 dBm |
| Receive Sensitivity | ≤-94 dBm | ≤-94 dBm | ≤-94 dBm | ≤-94 dBm | ≤-94 dBm |
| Antenna | 6 x 5 dBi Omni RP-SMA Female | 4 x 5 dBi Omni RP-SMA Female | 4 x 5 dBi Omni RP-SMA Female | 2 x 5 dBi Omni RP-SMA Female | 2 x 5 dBi Omni RP-SMA Female |
| Transmit Power (mW) | 800mW/800 mW | 400mW/400mW | 800mW/400mW | 800mW | 800mW |
| Operation Modes | Access Point, Client Bridge, WDS AP, WDS Station, Universal Repeater | Access Point, Client Bridge, AP Router, WDS AP, Universal Repeater | |||
| Number of SSID | 16 (8 per radio) | 16 (8 per radio) | 16 (8 per radio) | 8 | 8 |
| 802.1q zVLAN | |||||
| QoS | |||||
| AP Management Software (EZC) | |||||
| PoE | 802.3at | 802.3at | 802.3at/af | 802.3af | 802.3af |
| User Support | Up to 50 on each radio | Up to 50 on each radio | Up to 50 on each radio | Up to 32 | Up to 32 |
Documentation:
Download the EnGenius ECB600 Datasheet (PDF).
