EnGenius ECB350
High-Powered, Long-Range Wireless N300 Indoor Access Point / Client Bridge with Gigabit
Sorry, this product is no longer available, replaced by EnGenius EAP1300EXT Indoor Access Point
More pricing below, click here!
Overview:
The EnGenius ECB350 is an ideal solution for expanding an existing network and increasing bandwidth to support additional users. This 2.4GHz Wireless-N Indoor Access Point/Client Bridge that features up to 29 dBm RF Tx (transmit) power for long range coverage, wireless speeds up to 300Mbps and a Gigabit Ethernet port for connecting to a switch or router.
The ECB350’s robust transmit power, enhanced receive sensitivity and its MIMO (Multiple In/Multiple Out) antenna array extends wireless coverage and enhances connectivity to client devices even in areas where connections have been previously challenging or nonexistent.
This capability also helps to reduce the number of Access Points needed to deploy over large properties and helps to eliminate the need for roaming clients to constantly reassociate to different APs in the building or throughout the property.
This powerful and versatile, multi-functional 802.11n wireless device features eight different operation modes (Access Point/Client Bridge/Universal Repeater/WDS Bridge/WDS AP/WDS Station/AP Router/Client Router) to meet the changing needs of evolving business environments. The ECB350 is designed for extending networks within large or multi-story buildings or expansive, client-intensive facilities like hotels, resorts, hospitals, office buildings, universities or other multibuilding campus facilities that need to offer employees, guests, staff or students access to network resources likeprinters, content or the Internet.
The ECB350 includes EnGenius Zone Controller Access Point Management software that provides a robust suite of tools for IT managers, installers and network administrators who deploy, manage and maintain wireless networks. With Zone Controller, EnGenius Wireless Indoor and Outdoor Access Points and Client Bridges can be configured, controlled and monitored from one central location.
Product Features:
High-power, Long-range Wi-fi:
- Up to 29 dBm RF Tx (transmit) power provides more than twice greater Wi-Fi coverage over mainstream competitors
Wireless-N With Multiple Operation Modes:
- Offers multiple operation modes for different network topologies.

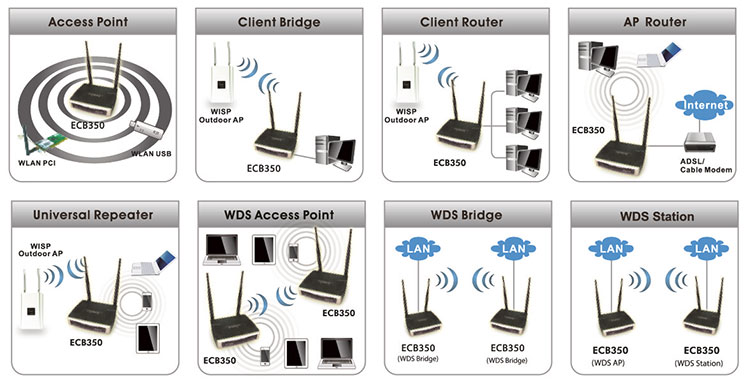

- 8 operation modes: Access Point/Client Bridge/Universal Repeater/WDS Bridge/WDS AP/WDS Station/AP Router/Client Router
Wireless-n 6x Speed Over 802.11g Networks:
- MIMO delivers up to 300Mpbs speed rate
Gigabit Ethernet Port:
- Up to 10X faster data transfer than Fast Ethernet. Ideal for streaming videos, VOIP, music, and multimedia applications
SSID-to-VLAN Mapping:
- Supports 802.1q mapping of SSIDs and up to four VLANs
IEEE802.3af PoE Compliant:
- Supports Power-over-Ethernet (IEEE 802.3af) and enables deployment in ceilings and other areas where power outlets may not be available.
AP Management Software:
- Includes EnGenius Zone Controller for configuring, managing and monitoring multiple APs from one central location
Specifications:
| EnGenius ECB350 Specifications | |||
|---|---|---|---|
| Hardware Specifications | |||
| MCU/RF | AR7242 + AR9283 | ||
| Memory | 32 MB | ||
| Flash | 8 MB | ||

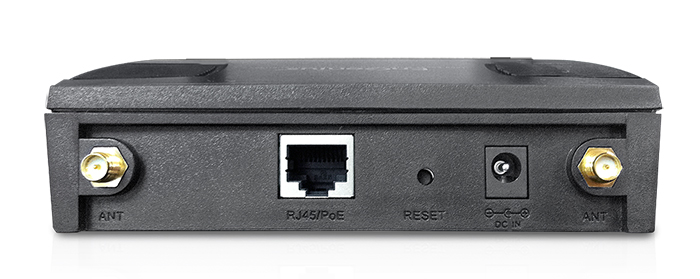

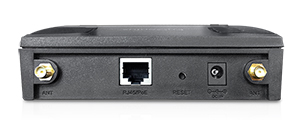

| Physical Interface | LAN: 1 x 10/100/1000 Gigabit Ethernet (RJ-45) port Reset Button Power Jack |
||
| LED Status | Power/Status LAN (10/100/1000Mpbs) WLAN (Wireless connection) |
||
| Power requirement | Power Supply: 90 to 240 VDC ± 10%, 50/60 Hz (Depends on different countries) Active Ethernet (Power over Ethernet, IEEE802.3af) 48 VDC/0.375A Device: 12V/1A |
||
| RF Specifications | |||
| Wireless standard | IEEE802.11 b/g/n | ||
| Frequency | 2.400 ~ 2.484GHz (b/g/n) | ||
| Modulation Technology | OFDM: BPSK, QPSK, 16-QAM, 64-QAM DBPSK, DQPSK, CCK | ||
| Operating Channels | 11 channels | ||
| Transmit Power | 802.11b(2.412 ~ 2.472 GHz) 29 dBm @ 1Mbps 29 dBm @ 2Mbps 29 dBm @ 5.5Mbps 29 dBm @ 11Mbps |
802.11g(2.412 ~ 2.472 GHz) 29 dBm @ 6Mbps 29 dBm @ 9Mbps 28 dBm @ 12Mbps 28 dBm @ 18Mbps 24 dBm @ 24Mbps 24 dBm @ 36Mbps 23 dBm @ 48Mbps 23 dBm @ 54Mbps |
802.11n(2.412 ~ 2.472 GHz) 26 dBm @ MCS0/MCS8 26 dBm @ MCS1/MCS9 25 dBm @ MCS2/MCS10 25 dBm @ MCS3/MCS11 24 dBm @ MCS4/MCS12 24 dBm @ MCS5/MCS13 23 dBm @ MCS6/MCS14 23 dBm @ MCS7/MCS15 |
| Receiver Sensitivity | 802.11b (2.412 ~ 2.472 GHz) best ≤ -98 dBm 802.11g (2.412 ~ 2.472 GHz) best ≤ -93 dBm 802.11n (2.412 ~ 2.472 GHz) best ≤ -93 dBm |
||

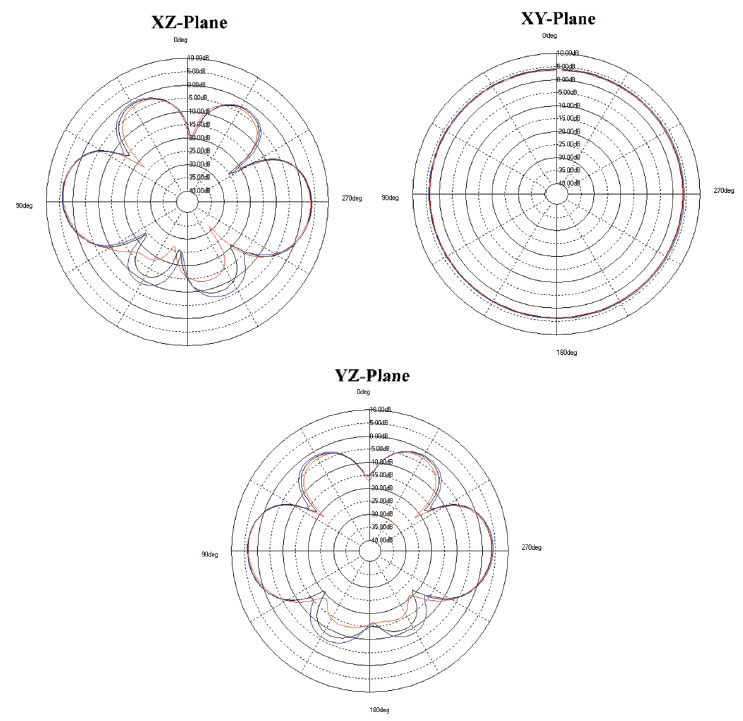

| Antenna | 2x external 5dBi SMA antennas (Diversity support) | ||
 |
|||
| Environment & Physical | |||
| Temperature Range | Operating: 0 to 50° C (32° to 122° F) Storage: -20 to 60° C (-4° to 140° F) |
||
| Humidity (non-condensing) | Operating: 90% or less Storage: 90% of less |
||
| Dimensions | L: 5.32”(135mm), W: 4.14”(105mm), H: 1.18”(30mm) | ||
| Weight | 0.77 lb. (280g) | ||
| Certifications | FCC, CE, IC | ||
| Software Specifications | |||
| Topology | Infrastructure/Ad-Hoc | ||
| Operation Mode | Access Point/Client Bridge/Universal Repeater/WDS Bridge/WDS AP/WDS Station/AP Router/Client Router |
||
| Multiple BSSID | Supports up to 4 BSSIDs | ||
| LAN | IP (check validity and DHCP server IP range) | ||
| DHCP Server | DHCP range, lease time, client list | ||
| VLANs | Supports 802.1q (up to 4 VLANs) SSID to VLAN mapping |
||
| Spanning Tree | Supports 802.1d Spanning Tree Protocol | ||
| Wireless | Wireless mode: 11b/11g/11n Channel selection (setting varies by country) Channel bandwidth (Auto, 20MHz, 40MHz) Transmission rate: 11n only, 11b/g/n mix, 11b only, 11b/g, 11g only |
||
| VPN | VPN pass-through (PPTP, L2TP, IPSEC) | ||
| QoS | WMM | ||
| WPS | Software only | ||
| Security | WEP Encryption - 64/128 bit WPA Personal (WPA-PSK using TKIP or AES) WPA Enterprise (WPA-EAP using TKIP) 802.1x Authenticator SSID broadcast enable/disable WLAN MAC Address Filter WLAN L2 isolation (AP mode) Wireless STA (Client) connected list (Idle/Connection Time, Pkt statistics) |
||
| Management | |||
| Tx Power Control | Adjust transmit power by dBm | ||
| Configuration | Web-based configuration (HTTP)/Telnet | ||
| Telnet Server | CLI | ||
| Firmware Upgrade | Upgrade firmware via web browser | ||
| Administrator Setting | Administrator Username & Password change | ||
| Reset Setting | Reboot (press 1 second). Reset to Factory Default (press 10 second) | ||
| System Monitoring | Status Statistic and Event log | ||
| SNMP | V1 , V2c | ||
| MIB | MIB I , MIB II(RFC1213) and Private MIB | ||
| Traffic Measurement | Per interface | ||
| Auto-channel Selection | Automatically selecting least congested channel | ||
| Bandwidth Measurement | IP range and bandwidth management | ||
| Backup & Restore | Save & restore settings through Web interface | ||
| Diagnosis | IP pinging statistics | ||
| AP Detection | Scanning for available EnGenius APs | ||
| Ideal For | |||
 |
|||
Product Comparison:
| Model | ECB1750 | ECB1200 | ECB600 | ECB350 | ECB300 |
|---|---|---|---|---|---|
| Frequency | 802.11 a/b/g/n/ac | 802.11 a/b/g/n/ac | 802.11 a/b/g/n | 802.11 b/g/n | 802.11 b/g/n |
| Maximum Data Speed | 450 + 1300Mbps | 300 + 867Mbps | 300 + 300Mbps | 300Mbps | 300Mbps |
| LAN Interface | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100 |
| Encryption | WPA2 WPA WEP | WPA2 WPA WEP | WPA2 WPA WEP | WPA2 WPA WEP | WPA2 WPA WEP |
| SDRAM | 128 MB | 128 MB | 64 MB | 32 MB | 32 MB |
| FlashMemory | 16 MB | 16 MB | 16 MB | 8 MB | 4 MB |
| RF Power (dBm) | 2.4 GHz: 29 dBm 5 GHz: 29 dBm |
2.4 GHz: 26 dBm 5 GHz: 26 dBm |
2.4 GHz: 29 dBm 5 GHz: 26 dBm |
29 dBm |
29 dBm |
| Receive Sensitivity | ≤-94 dBm | ≤-94 dBm | ≤-94 dBm | ≤-94 dBm | ≤-94 dBm |
| Antenna | 6 x 5 dBi Omni RP-SMA Female | 4 x 5 dBi Omni RP-SMA Female | 4 x 5 dBi Omni RP-SMA Female | 2 x 5 dBi Omni RP-SMA Female | 2 x 5 dBi Omni RP-SMA Female |
| Transmit Power (mW) | 800mW/800 mW | 400mW/400mW | 800mW/400mW | 800mW | 800mW |
| Operation Modes | Access Point, Client Bridge, WDS AP, WDS Station, Universal Repeater | Access Point, Client Bridge, AP Router, WDS AP, Universal Repeater | |||
| Number of SSID | 16 (8 per radio) | 16 (8 per radio) | 16 (8 per radio) | 8 | 8 |
| 802.1q zVLAN | |||||
| QoS | |||||
| AP Management Software (EZC) | |||||
| PoE | 802.3at | 802.3at | 802.3at/af | 802.3af | 802.3af |
| User Support | Up to 50 on each radio | Up to 50 on each radio | Up to 50 on each radio | Up to 32 | Up to 32 |
Documentation:
Download the EnGenius ECB350 Datasheet (PDF).
