EnGenius ECB1200
802.11ac 2x2 Dual Band High-Powered Wireless Access Point/Client Bridge
Sorry, this product is no longer available, Please, contact us for a replacement product!
Overview:
The EnGenius ECB1200 is an 802.11ac 2x2:2 Dual Band Wireless Access Point and Client Bridge that is ideal for use in a wide array of settings including multi-floor corporate offices, hotels, schools and universities, small-to-mid-sized companies and large homes.
The ECB1200 features Dual-Band, concurrent operations with Band Steering and Quantum Beam technology for highly optimized user capacity per band, and the latest 802.11ac speeds delivering up to 867 Mbps on the 5 GHz band and up to 300 Mbps on the 2.4 GHz band. Combining high-transmit power, enhanced receive sensitivity and 4 external high-gain MIMO antennas, the ECB1200 supports long-range wireless connectivity ensuring seamless application delivery to a large number of clients simultaneously.
An expert in wireless communications and RF technology, EnGenius delivers feature-rich, long-range wireless communications technology for voice and data. The versatility and performance of the company’s solutions lower total cost of ownership, increase productivity and maximize return on investment.
Key Features and Benefits:
- 802.11ac wireless speeds up to 867 Mbps on 5 GHz band
- 802.11n wireless speeds up to 300 Mbps on 2.4 GHz band
- Up to 26 dBm transmit power per band penetrates floors, ceilings and walls for long-range connectivity
- Dual-Band-capable for expanded user capacity and support for higher bandwidth applications
- Four (4) 5 dBi high-gain detachable Omni-Directional antennas; two (2) on 2.4 GHz/two (2) on 5 GHz
- Band Steering detects Dual-Band clients, shifting them to 5 GHz, optimizing data flow
- Power-over-Ethernet (PoE)-compatible for flexible power options with PoE 802.3at capable Switches or the EnGenius Gigabit PoE Injector EPE-4818G
- Fast Roaming configurable when used with a RADIUS server for seamless application delivery without delays
- Wireless Encryption (64/128/152 bit)
- Secured Guest Network option keeps primary network secure, limiting Internet resources
- SSID-to-VLAN Tagging – tag and assign different user access rights on the company VLAN
- Supports IPv4/IPv6
- Designed for use in: multi-floor corporate offices, hotels, schools, universities, small-to-mid-sized companies and large homes
Features & Benefits:
Accelerated Dual-Band Performance
The EnGenius ECB1200’s accelerated speed and performance for users with 802.11ac laptops and other devices ensures smooth, rapid wireless HD video streaming and large file transfers over long distances. With Dual-Band support, this 802.11ac 2x2:2 Indoor Access Point and Client Bridge features data speeds of up to 867 Mbps on the 5 GHz band, when associated with AC client devices, and up to 300 Mbps on the 2.4 GHz band. Its Dual-Band feature incorporates high-capacity performance without bottlenecks for legacy and newer devices to a large number of clients simultaneously.
Long-Range Connectivity with External Detachable Antennas

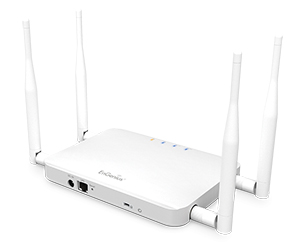

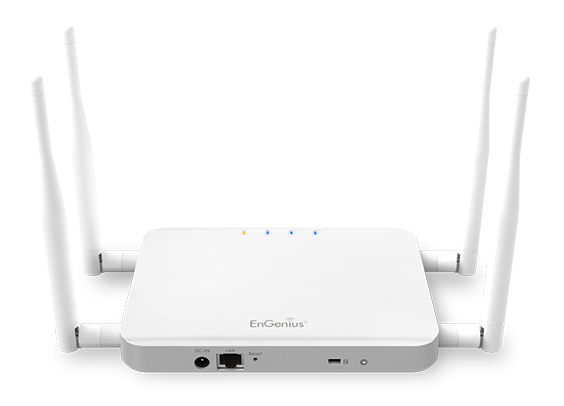

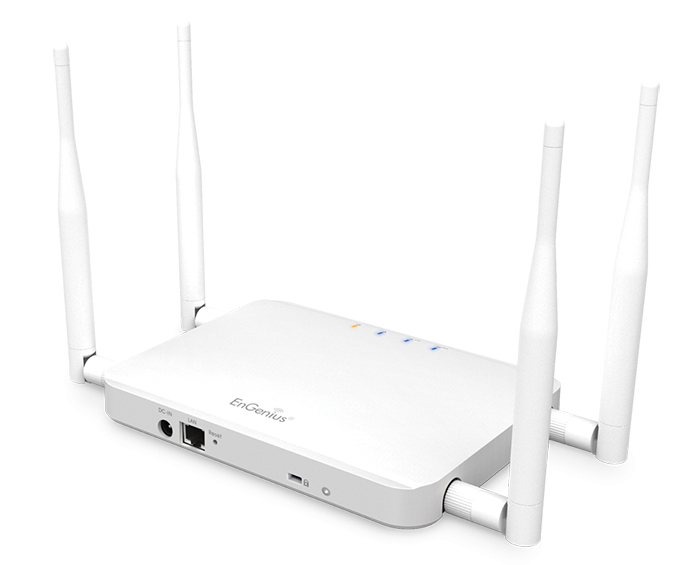

With powerful, long-range connectivity capacity, the ECB1200’s external MIMO antenna array is comprised of four (4) detachable 5 dBi high-gain antennas; two (2) for the 2.4 GHz radio and two (2) for the 5 GHz radio, transmitting up to 26 dBm of power per band. This combination of hightransmit power, enhanced receive sensitivity and long-range high gain external antennas results in wide-reaching connectivity to client devices, and in some venues, drastically minimizes the number of APs needed for deployment compared to other solutions.
Customize Wireless Access for Different Departments or Workgroups
Create and configure up to eight (8) separate wireless networks per frequency band for a total of 16 SSIDs. Utilizing SSID-to-VLAN tagging (802.11q) can help increase security, network reliability and conserve bandwidth by limiting who has access to connect.
Secured Guest Network Option
Establish and secure Guest Networks and control access to company computers and servers. Limit Internet resources available to visiting customers, clients and vendors and ensure your company network and servers are kept secure from sophisticated Trojans and malware that can use guest’s mobile devices to attack your network.
Fast Roaming with Enhanced Security
When used with a RADIUS server, the ECB1200’s Fast Roaming feature supports secure authentication, distributing and caching a designated WPA/ WPA2-Enterprise encryption key to neighboring ECB Access Points. Together with the Fast Handover feature, the AP automatically initiates a secure client transfer from one ECB Access Point to the next nearest AP with a stronger signal, keeping clients continuously and seamlessly connected to the network.
Simplified AP Monitoring
For simplified Wireless Access Point monitoring and sequential firmware upgrades after deployment, IT managers can download the free the SNMPbased EZ Controller software for Windows, Mac OSX and Linux from the EnGenius web site. Since the ECB1200 requires no software, set up and configuration is easily completed through its web User Interface or the optional EZ Controller software.
Flexible Mode Configurations per Frequency Band
Easily configure the ECB1200 as an Access Point, Client Bridge or WDS (AP, Station & Bridge) based on user needs in each frequency band. When set to Client Bridge mode, Ethernet-enabled devices, such as printers, copiers or storage can join an existing wireless network when connected via a Switch or directly to the wired device, making applications like wireless printing and archiving from laptops and tablets even easier.
Specifications:
| EnGenius ECB1200 Dual Band Access Point Specifications | ||
|---|---|---|
| Standards | IEEE 802.11a/n/ac on 5 GHz IEEE 802.11b/g/n on 2.4 GHz IEEE 802.3at |
|
| Antenna | 4 External Antennas (2) Detachable 5 dBi 2.4 GHz Omni-directional Antennas (2) Detachable 5 dBi 5 GHz Omni-directional Antennas |
|

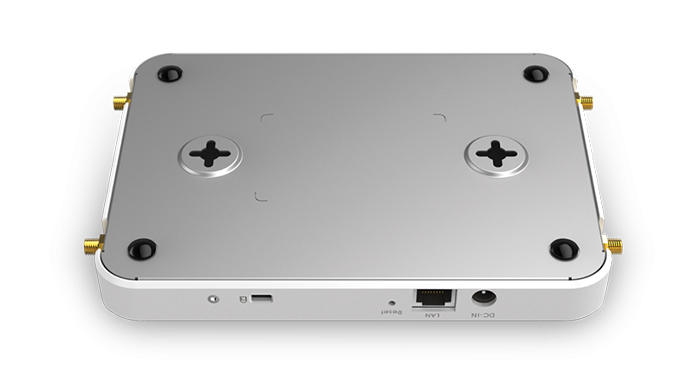

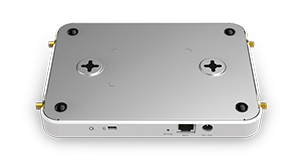

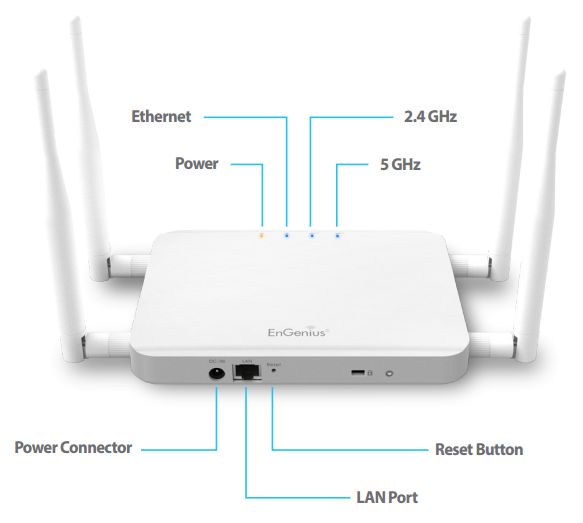

| Physical Interface | 1 x 10/100/1000 Gigabit Ethernet Port with PoE support 1 x Reset Button 1 x Power Connector |
|
| Physical Security | Kensington Security Slot | |
| LED Indicators | 1 x Power 1 x LAN 1 1 x 2.4 GHz 1 x 5 GHz |
|
| Power Source | DC Input: 12VDC/2A PoE: Compatible with 802.3at |
|
| Memory Capacity | 16 MB Flash 128 MB SDRAM |
|
| Wireless & Radio Specifications | Dual Band, Dual Concurrent Radio | |
| Operation Modes | Access Point Client Bridge WDS AP WDS Bridge WDS Station |
|
| Transmission Power | 2.4 GHz up to 26 dBm 5 GHz up to 26 dBm |
|
| Radio Chains / Spatial Streams | 2 x 2: 2 | |
| Supported Data Rates (Mbps) | 2.4 GHz: Max 300 5 GHz: Max 866 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 450 (MCS0 to MCS9, NSS=1 to 3) 802.11ac: 6.5 to 1,300 (MCS0 to MCS9, NSS=1 to 3) |
|
| Supported Radio Technologies | 802.11b: Direct-Sequence Spread Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11n/ac: 2x2 MIMO with 2 streams |
|
| Channelization | 802.11ac with 20/40/80 MHz channel width 802.11n with 20/40 MHz channel width 802.11a/b/g with 20 MHz channel width |
|
| Supported Modulation | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
|
| Management | Auto Channel Selection Multiple SSID: 16 SSIDs, 8 SSIDs per Radio BSSID SNMP V1/V2c/V3 MIB I/II, Private MIB VLAN Tag/VLAN Pass-through Save Configuration as Default Clients Statistics Email Alert Fast Roaming Fast Handover Client Limit Real Time Status RADIUS Accounting Guest Network |
|
| Control | EnGenius EZ Controller CLI Supported Multicast Supported Wi-Fi Scheduler Band Steering 802.1x Supplicant (CB Mode) Auto Reboot Green Setting |
|
| Security | WEP Encryption (64/128/152 bit) WPA/WPA2 Personal (WPA-PSK using TKIP or AES) WPA/WPA2 Enterprise (WPA-PSK using TKIP) 802.1x Authenticator Hide SSID in Beacons Client Isolation L2 Isolation (AP Mode) MAC Address Filtering, Up to 50 Fields |
|
| Wireless STA (Client) Connection List | Https Support SSH Support |
|
| QoS | Supports 802.11e/WMM/Traffic Shaping Standards (WMM – Wireless Multimedia |
|
| Environmental & Physical | ||
| Temperature Range | Operating: 32 °F to 122 °F (0°C to 50 °C) Storage: -4 °F to 140°F (-20 °C to 60 °C) |
|
| Humidity (non-condensing) | Operating: 90% or less Storage: 90% or less |
|
| Dimensions & Weights | ||
| Device | Weight: 1.20 lbs. (544.31 g) Length: 7.44” (189 mm) Width: 5.51” (140 mm) Height: 1.02” (26 mm) |
|
| Packaging | Weight: 2.8 lbs. (1.27 kg) Length: 12” (304.80 mm) Width: 3” (76.20 mm) Height: 1” (25.40 mm) |
|
| Master Carton | Weight: 28 lbs. (12.70 kg) Length: 19” (482.60 mm) Width: 15.4” (391.16 mm) Height: 13” (330.20 mm) No. of boxes per master carton: 10 units |
|
| Package Contents | ECB1200 802.11ac 2x2 Dual Band Indoor Access Point/Client Bridge (2) Detachable 5 dBi 2.4 GHz Omni-directional Antennas (2) Detachable 5 dBi 5 GHz Omni-directional Antennas RJ-45 Cable Power Adapter (12V/2A) Wall Mount Kit Quick Installation Guide |
|
| Certifications | FCC CE IC |
|
| Warranty | 1 Year | |
| Antenna Specifications (External Antenna) | ||
| External Antenna | 2.4 GHz | 5 GHz |
| Average Antenna Gain | 5.0 dBi | 5.0 dBi |
| Polarization | Vertical | Vertical |
| Azimuth Beam-Width | 360° | 360° |
| Elevation Beam-Width | 30° | 30° |
| VSWR | 1:2.0 | 1:2.0 |
| Dimension | 13(Φ)x199(L) mm | 13(Φ)x199(L) mm |
Product Comparison:
| Model | ECB1750 | ECB1200 | ECB600 | ECB350 | ECB300 |
|---|---|---|---|---|---|
| Frequency | 802.11 a/b/g/n/ac | 802.11 a/b/g/n/ac | 802.11 a/b/g/n | 802.11 b/g/n | 802.11 b/g/n |
| Maximum Data Speed | 450 + 1300Mbps | 300 + 867Mbps | 300 + 300Mbps | 300Mbps | 300Mbps |
| LAN Interface | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100 |
| Encryption | WPA2 WPA WEP | WPA2 WPA WEP | WPA2 WPA WEP | WPA2 WPA WEP | WPA2 WPA WEP |
| SDRAM | 128 MB | 128 MB | 64 MB | 32 MB | 32 MB |
| FlashMemory | 16 MB | 16 MB | 16 MB | 8 MB | 4 MB |
| RF Power (dBm) | 2.4 GHz: 29 dBm 5 GHz: 29 dBm |
2.4 GHz: 26 dBm 5 GHz: 26 dBm |
2.4 GHz: 29 dBm 5 GHz: 26 dBm |
29 dBm |
29 dBm |
| Receive Sensitivity | ≤-94 dBm | ≤-94 dBm | ≤-94 dBm | ≤-94 dBm | ≤-94 dBm |
| Antenna | 6 x 5 dBi Omni RP-SMA Female | 4 x 5 dBi Omni RP-SMA Female | 4 x 5 dBi Omni RP-SMA Female | 2 x 5 dBi Omni RP-SMA Female | 2 x 5 dBi Omni RP-SMA Female |
| Transmit Power (mW) | 800mW/800 mW | 400mW/400mW | 800mW/400mW | 800mW | 800mW |
| Operation Modes | Access Point, Client Bridge, WDS AP, WDS Station, Universal Repeater | Access Point, Client Bridge, AP Router, WDS AP, Universal Repeater | |||
| Number of SSID | 16 (8 per radio) | 16 (8 per radio) | 16 (8 per radio) | 8 | 8 |
| 802.1q zVLAN | |||||
| QoS | |||||
| AP Management Software (EZC) | |||||
| PoE | 802.3at | 802.3at | 802.3at/af | 802.3af | 802.3af |
| User Support | Up to 50 on each radio | Up to 50 on each radio | Up to 50 on each radio | Up to 32 | Up to 32 |
Documentation:
Download the EnGenius ECB1200 Datasheet (PDF).
