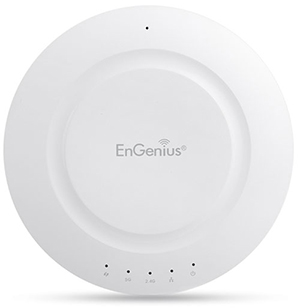

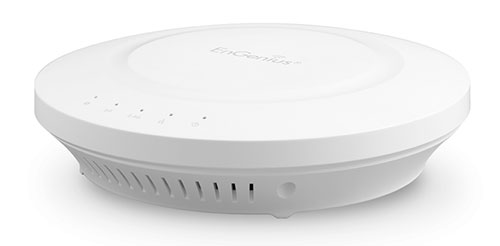

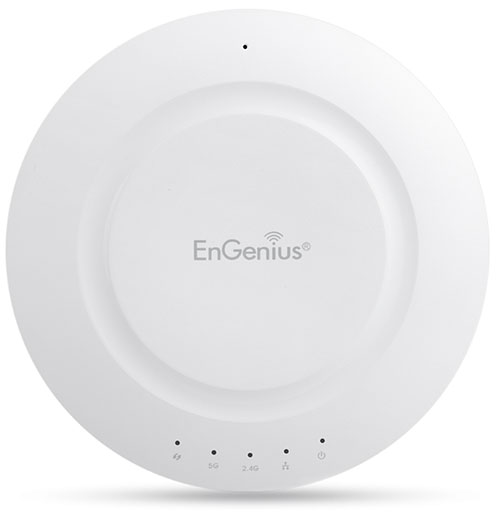

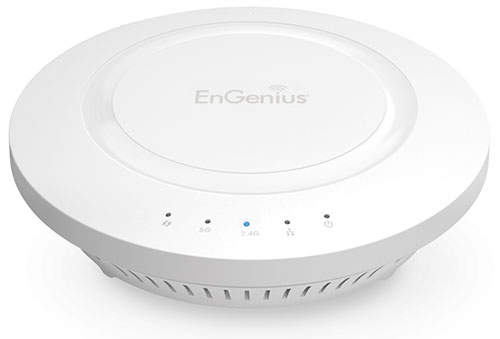

EnGenius EAP1200H
Dual Band AC1200 Indoor Access Point
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Joining the Electron Series’ expansive line of mix-and-match business-class networking products, the EnGenius EAP1200H is a Ceiling Mount AC1200 Dual Band Wireless Indoor Access Point designed for spacious interior environments including large homes and offices, small and mid-sized business, multi-floor buildings, hotels, hospitals and other settings where network expansion is needed. The EAP1200H features dual-band, concurrent operations with Band Steering and combines high-transmit power, enhanced receive sensitivity MIMO and 4 internal high-gain antennas providing expanded user capacity, maximized network performance and greater device network connectivity.
Achieving the latest 802.11ac speeds and superior, super fast 5 GHz performance, the EAP1200H yields up to 867 Mbps data rates on the 5 GHz band and up to 300 Mbps speeds on the 2.4 GHz band supporting the newest laptops, tablets and cell phones at speeds nearly 2Xs faster than previous wireless standards.
An expert in wireless communications and RF technology, EnGenius delivers feature-rich, long-range wireless communications technology for voice and data. The versatility and performance of the company’s solutions lower total cost of ownership, increase productivity and maximize return on investment.
Key Features and Benefits:
- 802.11ac wireless speeds up to 867 Mbps on 5 GHz band
- 802.11n wireless speeds up to 300 Mbps on 2.4 GHz band
- Low-profile design features internal antennas and smoke detector-style ceiling mount housing
- Up to 26 dBm transmit power per band for longer range and enhanced wireless coverage
- Internal 3D Sectorized Antenna Array that minimizes RF interference
- Dua-Band-capable for expanded user capacity and support for higher bandwidth applications
- Band Steering detects Dual-Band clients, shifting them to 5 GHz while optimizing data flow
- Power-over-Ethernet (PoE)-compatible for flexible power options with PoE 802.3at-capable Switches or the EnGenius Gigabit PoE Injector EPE-4818G
- Easy AP monitoring through EnGenius’ SNMP-based EZ Controller software
- Fast Roaming with PMKSA support for enhanced security when roaming between neighboring APs
- Secured Guest Network option keeps primary network secure, limiting Internet resources
- SSID-to-VLAN Tagging – tag and assign different user access rights on the company VLAN
- Supports IPv4/IPv6
- Designed for use in: large homes and offices, small and mid-sized businesses, multi-floor buildings, hotels, hospitals and other settings where network expansion is needed
Features & Benefits:
Accelerated Dual-Band Performance with Band Steering
The EnGenius EAP1200H leverages the accelerated speed and performance of 802.11ac laptops and other devices ensuring smooth, rapid wireless HD video streaming and large file transfers. This AP features speeds up to 867 Mbps on the 5 GHz band, when associated with AC client devices, and up to 300 Mbps on the 2.4 GHz band. Its Dual-Band feature expands user capacity, and like a traffic cop, Band Steering automatically directs Dual-Band clients to the less congested 5 GHz frequency, maximizing efficiency and network performance to a large number of clients simultaneously.
Powerful, Long-Range Connectivity
With powerful connectivity capacity, the EAP1200H’s integrated, sectorized 3D antenna array transmits up to 26 dBm of power per band providing more than 2Xs greater coverage over mainstream competitor’s solutions. Combining high-transmit power, enhanced receive sensitivity MIMO (Multiple In/Multiple Out) and high-gain Internal 5dB; antennas, the AP’s wireless signal is able to penetrate floors, ceilings and walls for greater device connectivity.
Customize Wireless Access for Different Departments or Workgroups
Create and configure up to eight (8) separate wireless networks per frequency band for a total of 16 SSIDs. Utilizing SSID-toVLAN tagging (802.11q) can help increase security, network reliability and conserve bandwidth by limiting who has access to connect. Secured Guest Network Option Establish and secure Guest Networks and control access to company computers and servers. Limit Internet resources available to visiting customers, clients and vendors and ensure your company network and servers are kept secure from sophisticated Trojans and malware that can use guest’s mobile devices to attack your network.
Low-Profile Design & PoE Support
Its award-winning, low-profile design blends nicely with other common building appliances, making it perfect for settings where room aesthetics or a more discrete ceiling placement is desired. Because the EAP1200H is designed for deployments on ceilings, where power outlets may be scarce, it can be powered via Power-over-Ethernet (PoE) from an 802.3atrated Switch or used with the EnGenius Gigabit PoE Injector EPE-4818G 802.3at-capable PoE Injector.
Fast Roaming with Enhanced Security
When used with a RADIUS server, the EAP1200H’s Fast Roaming feature supports PMKSA that distributes and caches a designated WPA/WPA2- Enterprise encryption key to neighboring EAP Access Points. Together with the Fast Handover feature, the AP automatically initiates a secure client transfer from one EAP Access Point to the next nearest AP with a stronger signal, keeping clients continuously and seamlessly connected to the network.
Flexible Modes for Versatility
Easily configure the EAP1200H as an Access Point or WDS AP or WDS Bridge based on user needs in each frequency band. This allows multiple operation combinations on a single device to address specific deployment requirements.
Simplified AP Monitoring
For simplified Wireless AP monitoring and sequential firmware upgrades after deployment, IT managers can download the free the SNMP-based EZ Controller software for Windows, Mac OSX and Linux. Since software is not required, set up and configuration is completed quickly through the
Specifications:
| EnGenius EAP1200H Specifications | |
|---|---|
| Standards | IEEE 802.11b/g/n on 2.4 GHz IEEE 802.11a/n/ac on 5 GHz IEEE 802.3at IEEE 802.1r IEEE 802.1k IEEE 802.11x |
| Memory Capacity | Memory: 128 MB Flash Memory 16 MB |
| Antenna | Internal Omni-Directional Antennas 5 dBi on 2.4 GHz & 5 GHz |

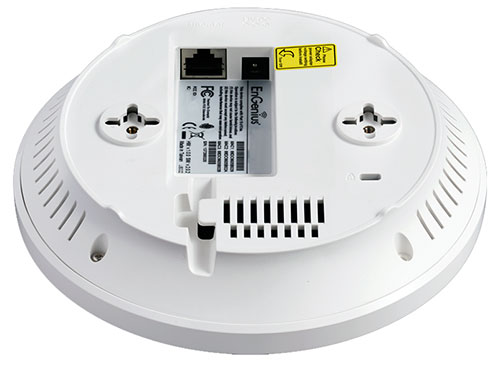

| Physical Interface | 1 x 10/100/1000 Gigabit Ethernet Port 1 x Reset Button 1 x Power Connector |
| Physical Security | Kensington Security Slot |
| LED Indicator | 1 x Power WLAN (Wireless Connection) 2.4 GHz 5 GHz 1 x LAN |
| Power Source | External Power Adapter DC IN, 12V/2A IEEE 802.3at Compliant Source |
| Mounting | Ceiling Mount Wall Mount |
| Wireless & Radio Specifications | |
| Operating Frequency | Dual-Radio Concurrent 2.4GHz & 5GHz |
| Operation Modes | Access Point |
| Frequency Radio | 2.4GHz: 2400MHz ~ 2835MHz 5GHz: 5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz |
| Transmit Power | Up to 26 dBi on 2.4 & 5 GHz Max transmit power is limited by regulatory power |
| Radio Chains/Spatial Streams | 2x2:2 |
| Supported Data Rates (Mbps) | 2.4 GHz: Max 300 5 GHz: Max 867 802.11b: 1, 2, 5.5, 11 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1 ~2) |
| Supported Radio Technology | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM) |
| Channelization | 802.11ac with 20/40/80 MHz channel width 802.11n with 20/40 MHz channel width 802.11a/b/g with 20 MHz channel width |
| Supported Modulation | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| Management | |
| Multiple BSSID | Supports up to 8 SSIDs per radio |
| VLAN Tagging | Supports 802.1q SSID-to-VLAN tagging VLAN Pass through |
| QoS | Compliant with IEEE 802.11e Standard WMM |
| SNMP | v1, v2c, v3 |
| MIB | I/II, Private MIB |
| STP | Spanning Tree Protocol |
| Management Features | Deployment Options Standalone (Individually Managed) |
| Configuration | Web Interface (HTTP) CLI (Telnet) |
| Control Features | Firmware Upgrade: Web interface or CLI (FTP/HTTP) Auto Reboot Auto Channel Selection Auto Transmit Power Band Steering Fast Roaming Email Alert Wireless MAC Filter Wireless Traffic Shaping System Log Remote Log Backup / Restore WiFi Scheduler Ping / Traceroute / Speed Test LED Control Device Discovery Wireless LAN Information Statistics |
| Security | WPA/WPA2 Enterprise Hide SSID in beacons MAC Address Filtering Https Support SSH Support L2 Isolation Guest Network |
| Environmental & Physical | |
| Temperature Range | Operating: 32°F to 104°F (0°C to 40°C) Storage: -4°F to 140°F (-20°C to 60 °C) |
| Humidity (non-condensing) | Operating: (90% or less Storage: 90% or less |
| Device Dimensions & Weights | |
| Device | Weight: 0.62 lbs. Diameter: 6.36” Height: 1.64” |
| Package Contents | EAP1200H Dual-Band Wireless AC1200 Indoor Access Point 12V/2A Power Adapter T-Rail Mounting Kit Ceiling and Wall Mount Screw Kit Mounting Bracket RJ-45 Ethernet Cable Quick Installation Guide |
| Certifications | FCC CE |
| Warranty | 1 Year |
Product Comparison:
| Model | EAP1750H | EAP1200H | EAP900H | EAP600 | EAP350 | EAP300 |
|---|---|---|---|---|---|---|
| Frequency | 802.11 a/b/g/n/ac | 802.11 a/b/g/n/ac | 802.11 a/b/g/n | 802.11 a/b/g/n | 802.11 b/g/n | 802.11 b/g/n |
| Maximum Data Speed | 450 + 1300Mbps | 300 + 867Mbps | 450 + 450Mbps | 300 + 300Mbps | 300Mbps | 300Mbps |
| LAN Interface | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100 |
| Encryption | WPA2 WPA WEP | WPA2 WPA WEP | WPA2 WPA WEP | WPA2 WPA WEP | WPA2 WPA WEP | WPA2 WPA WEP |
| SDRAM | 128 MB | 128 MB | 128 MB | 64 MB | 32 MB | 32 MB |
| FlashMemory | 16 MB | 16 MB | 16 MB | 16 MB | 4 MB | 4 MB |
| RF Power (dBm) | 2.4 GHz: 28 dBm 5 GHz: 28 dBm |
2.4 GHz: 26 dBm 5 GHz: 26 dBm |
2.4 GHz: 28 dBm 5 GHz: 28 dBm |
2.4 GHz: 29 dBm 5 GHz: 26 dBm |
29 dBm | 29 dBm |
| Receive Sensitivity | ≤-94 dBm | ≤-94 dBm | ≤-94 dBm | ≤-94 dBm | ≤-94 dBm | ≤-92 dBm |
| Antenna | 6 x 5 dBi Sectorized 3D | 6 x 5 dBi Sectorized 3D | 6 x 5 dBi Sectorized 3D | 4 x 5 dBi Embedded | 2 x 5 dBi Embedded | 2 x 5 dBi Embedded |
| Transmit Power (mW) | 630mW/630 mW | 400mW/400mW | 630mW/630mW | 800mW/400mW | 800mW | 800mW |
| Operation Modes | Access Point, WDS AP, WDS Bridge | Access Point, WDS AP, WDS Bridge | Access Point, WDS AP, WDS Bridge | Access Point, WDS AP, WDS Bridge Repeater | Access Point, WDS AP, WDS Bridge Repeater | Access Point, WDS AP, WDS Bridge Repeater |
| Number of SSID | 16 (8 per radio) | 16 (8 per radio) | 16 (8 per radio) | 16 (8 per radio | 8 | 4 |
| 802.1q zVLAN | ||||||
| QoS | ||||||
| AP Management Software (EZC) | ||||||
| PoE | 802.3at | 802.3at | 802.3at | 802.3at/af | 802.3af | 802.3af |
| User Support | Up to 50 on each radio | Up to 50 on each radio | Up to 50 on each radio | Up to 50 on each radio | Up to 50 | Up to 50 |
Documentation:
Download the EnGenius EAP1200H Datasheet (PDF).
