EnGenius DuraFon Pro Handset
Designed for industrial environments that require a rugged portable handset

EnGenius ERB9250 Product Image

Limited quantities while supplies last

EnGenius Products

EnGenius DuraFon PRO

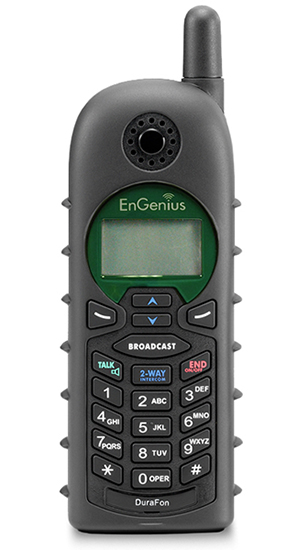

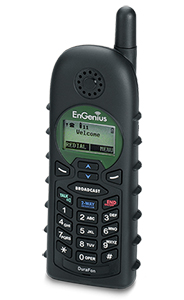

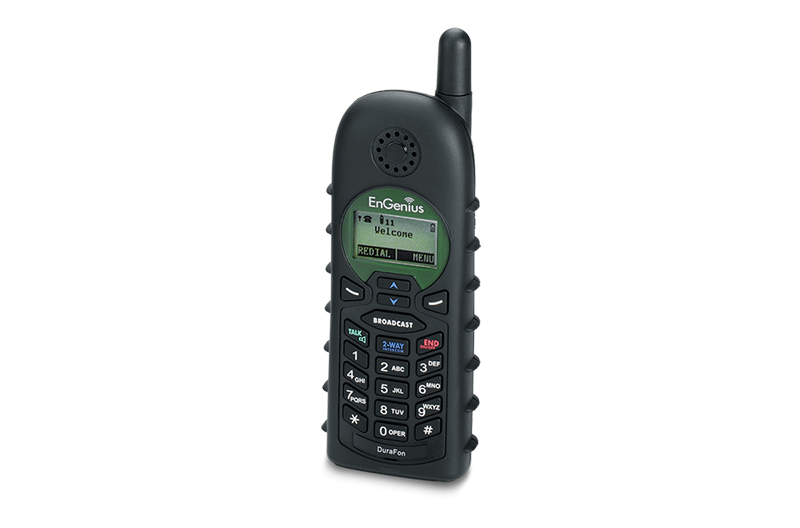

DuraFon PRO Handset

#DURAFONPRO-HC
Get a Quote!

Get a Quote

Overview:

The DuraFon long range cordless handset was designed for industrial environments that require a rugged portable handset. The DuraFon PRO-HC is an expansion or replacement handset that works only with the DuraFon PRO base unit. Maximum of (90) DuraFon PRO-HC handsets are supported on a DuraFon PRO base.

For use with:

DuraFon PRO System Only
Designed for rugged industrial use
Handset function as telephone and two-way radio
Two-way radio function: full-duplex intercom or half duplex broadcast
Speakerphone
4-Line liquid crystal display
2.5mm headset port

Includes:

(1) Desktop Charging Cradle w/AC Adaptor
(1) Li-Ion Battery Pack
(1) Low Profile Handset Antenna
(1) Optimal Performance Handset Antenna
(1) Belt Clip

Features:

DuraFon PRO Feature Set
Long-Range Up to: 12 floors in building 250,000 sq. ft. in a warehouse 3,000 acres on a farm or ranch Durable Tested to withstand 6 foot drops, 54 times on to concrete floors Expandable 4 – 32 ports / lines 1 – 90 handsets (PRO/DuraWalkie) Up to 8 base units Handset PRO Telephone 2-way radio User handset naming Keypad lock Speakerphone Caller ID Call waiting Vibrate mode Line Select 2.5mm headset jack Call Logs – Dialed and Received Redial Speed dial Call hold Call transfer	Wireless PBX function sharing Wireless phonebook sharing Silent ring Mute 900 Mhz, DSS, Frequency Hopping Selectable handset grouping (7 groups) User programmable PBX functions Phonebook 90 entry Intercom (handset-tohandset), no group chatter Broadcast (Push-to-Talk) Optional Equipment External base antennas: 30' or 60' low-loss LMR-400L cable Lightning protection kit Antenna splitter DuraPouch DuraWalkie (2-way radio only) handsets Handset-Durawalkie (Option) 2-way radio only User handset naming Keypad lock Intercom (handset-tohandset), no group chatter Broadcast (Push-to-Talk) Receives PRO handset transferred phone calls Vibrate mode Silent ring 2.5mm headset jack	Mute 900 Mhz, DSS, Frequency Hopping Speed dial 2-way directory Battery & Charger Li-Ion technology 6 hrs talk-time 50 hrs stand-by time Handset & spare battery charging slots 4 hr recharge time Battery hot-swap while call onhold System 4 analog ports per base unit Up to 8 base units (32 ports) Removable base antenna Flexible port dedication: Single, group or all Broadcast port Any analog line connection: Landline, ATA, cellular, VoIP or satellite Supports ring groups & hunt groups Auto attendant Conference calling Modifiable flash and DTMF tone timing Secure, digital spread spectrum w/ freq. hopping technology Important Info 1 year system and handset warranty, if sold by Authorized Reseller FCC certified Meets HIPPA compliancy No monthly bill (like cellular) No per minute charges (like cellular) No contracts (like cellular) No annual FCC license fees (like 2-way radios) No extensive infrastructure installation (like wireless networking, wifi phones) No QoS concerns No wireless network interference Secure

DuraFon PRO Feature Set

Long-Range

Up to:

12 floors in building
250,000 sq. ft. in a warehouse
3,000 acres on a farm or ranch

Durable

Tested to withstand 6 foot drops, 54 times on to concrete floors

Expandable

4 – 32 ports / lines
1 – 90 handsets
(PRO/DuraWalkie)
Up to 8 base units

Handset PRO

Telephone
2-way radio
User handset naming
Keypad lock
Speakerphone
Caller ID
Call waiting
Vibrate mode
Line Select
2.5mm headset jack
Call Logs – Dialed and Received
Redial
Speed dial
Call hold
Call transfer

Wireless PBX function sharing
Wireless phonebook sharing
Silent ring
Mute
900 Mhz, DSS, Frequency Hopping
Selectable handset grouping (7 groups)
User programmable PBX functions
Phonebook 90 entry
Intercom (handset-tohandset), no group chatter
Broadcast (Push-to-Talk)

Optional Equipment

External base antennas: 30' or 60' low-loss LMR-400L cable
Lightning protection kit
Antenna splitter
DuraPouch
DuraWalkie (2-way radio only) handsets

Handset-Durawalkie (Option)

2-way radio only
User handset naming
Keypad lock
Intercom (handset-tohandset), no group chatter
Broadcast (Push-to-Talk)
Receives PRO handset transferred phone calls
Vibrate mode
Silent ring
2.5mm headset jack

Mute
900 Mhz, DSS, Frequency Hopping
Speed dial 2-way directory

Battery & Charger

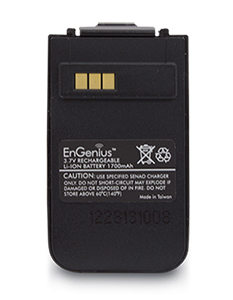

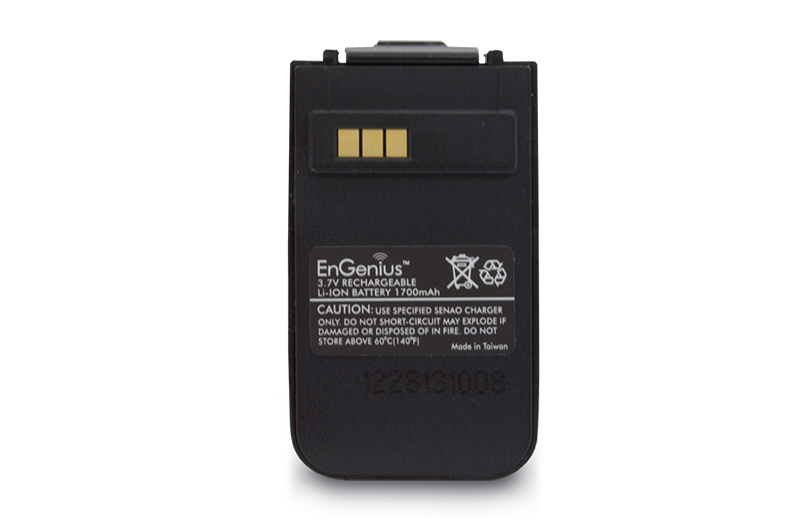

Li-Ion technology
6 hrs talk-time
50 hrs stand-by time
Handset & spare battery charging slots
4 hr recharge time
Battery hot-swap while call onhold

System

4 analog ports per base unit
Up to 8 base units (32 ports)
Removable base antenna
Flexible port dedication: Single, group or all
Broadcast port
Any analog line connection: Landline, ATA, cellular, VoIP or satellite
Supports ring groups & hunt groups
Auto attendant
Conference calling
Modifiable flash and DTMF tone timing
Secure, digital spread spectrum w/ freq. hopping technology

Important Info

1 year system and handset warranty, if sold by Authorized Reseller
FCC certified
Meets HIPPA compliancy
No monthly bill (like cellular)
No per minute charges (like cellular)
No contracts (like cellular)
No annual FCC license fees (like 2-way radios)
No extensive infrastructure installation (like wireless networking, wifi phones)
No QoS concerns
No wireless network interference
Secure

Specifications:

EnGenius DuraFon Pro Handset Specifications
Electrical Specs	Base Unit	Portable Handset
Frequency	902 - 928 MHz	902 - 928 MHz
RF Power	Peak: 708 mW Average: 304 mW	Peak: 708 mW Average: 76 mW
Channel Spacing	200 kHz	200 kHz
Number of Channels	128	128
Modulation	MSK	MSK
Multiple Access	Freq. Hopping TDMA	Freq. Hopping TDMA
Freq. Hopping Rate	100 per second	100 per second
TDMA Frame Length	10 ms	10 ms
Number of Slots / Frames	8	8
Number of Users / Carrier	4	4
Reciever Sensitivity	< -108 dBm (@ BER 0.01)	< -108 dBm (@ BER 0.01)
Antenna Connector	Reverse TNC	Non-standard
Antenna Gain	2 dBi 5 dBi Enternal (Optional)	2 dBi (Long) 0.5 dBi (Short)
TX Power Control Range	N/A	100- 708 mW
Telephone Interface	RJ11 x 4	N/A
Speech Coding	8 kbps G.729A	8 kbps G.729A
Channel Coding	8 kbps Convolutional + CRC	8 kbps Convolutional + CRC
Transmission Data Rate	170.678 kbps	176.678 kbps
User Data Rate	128 kbps duplex	128 kbps duplex
Duplex	Time Division Duplex (TDD)	Time Division Duplex (TDD)
Voice Quality	TIA / EIA -470B	TIA / EIA -470B
Number of System ID	65,536	65,536
Ring Signal	20-50 Hz, 12-90 Vrms	N/A
Auto-Attendant Coding	8 kbps G.729	8 kbps G.729
Flash Time	100 - 900 ms Programmable	N/A
Power Source	120V/7V AC/ DC Adapter	3.6V, 1700 mAh Li-Ion Battery
Charger Current	N/A	500 mA
Charge Time	N/A	4 Hours (from empty)
RegulationCompliance	FCC Part 15, Part 68 CAN/DOC RSS210, CS03	FCC Part 15, Part 68 CAN/DOC RSS210, CS03 Hearing Aid Compatible
Operating Temperature	-10 - 60o C (14 - 140o F)	-10 - 60o C (14 - 140o F)
Storage Temperature	-10 - 70o C (14 - 158o F)	-10 - 70o C (14 - 158o F)
Humidity	20 - 75%	20 - 75%
Dimension without Antenna	215D x 53H x 280W mm 11.0"" x 2.1"" x 8.5""	58D x 31H x 161W mm 2.3"" x 1.2"" x 6.3""
Weight	32 Ounces (907g)	6.17 Ounces (175g)

Applications in Depth

Retail/Grocery stores: The PRO system can be used to increase customer satisfaction, employee efficiency, and store safety and security by the ability to take and transfer calls, twoway radio for information, and broadcast important information or requests.

Warehouses: Using a combination of PRO handsets and DuraWalkies, managers can make and take calls while being able to two-way other staff from a single unit. The durability of the PRO and DuraWalkie handsets means they can meet the demands of a warehouse or manufacturing environment.

Auto Dealerships: Service advisors, sales and parts staff and dealership management can greatly reduce cellular telephone bills without sacrificing sales communications or customer service.

Assisted Living: The PRO's range makes it possible for staff to be mobile throughout the facility assisting residence while being available for internal or external calls.
